Strudel Studio for DeepDeck
A source-backed DeepDeck App that brings the official Strudel browser REPL into a Strudel.cc-style workspace and adds a revision-safe AI Assistant through DeepDeck App Conversations.
Screenshot

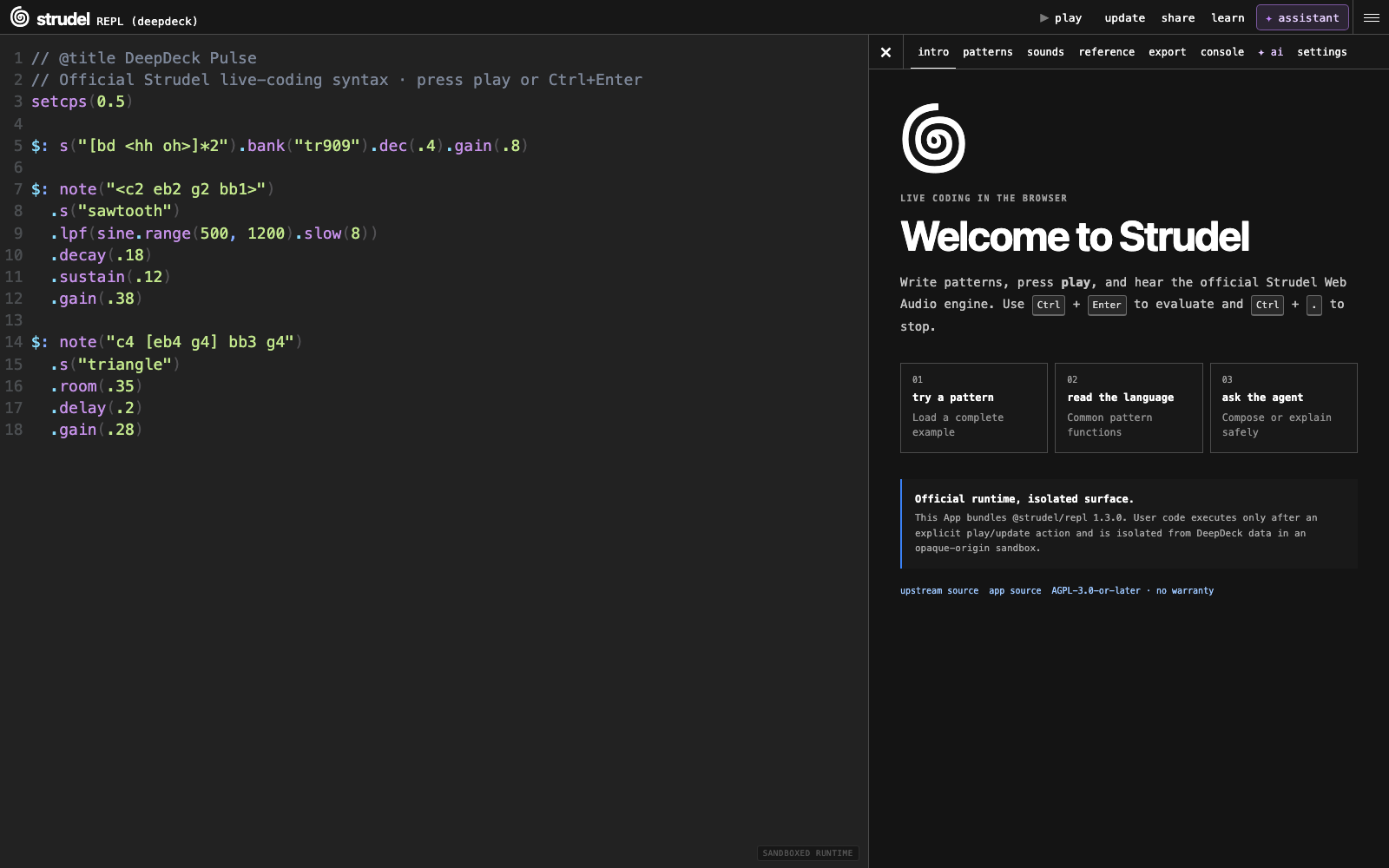

The standalone Strudel Studio workspace combines the official live-coding editor and transport with DeepDeck-native examples, sound browsing, reference, export, console, settings and AI-assisted composition. The screenshot uses the bundled starter pattern and contains no account or personal data.
Strudel Studio live-coding workspace in DeepDeck
Install with DeepDeck (recommended)
- Open Settings → Apps in DeepDeck.
- Paste
https://github.com/jo32/dsh-strudel-studio.git into Install an App plugin.
- Choose Inspect source, review the detected package and build command, then choose Confirm install.
- Restart DeepDeck when prompted.
- Open Apps → Strudel Studio from the sidebar.
For local development, build the checkout and install the resulting local bundle into the active DeepDeck web profile:
git clone https://github.com/jo32/dsh-strudel-studio.git
cd dsh-strudel-studio
bun install
bun test
bun run build
dsh plugin --profile web add "$PWD"
The last command mounts the Cordis App bundle. Run it in a DeepDeck-managed profile so the required Apps and App Conversations runtimes are available.
What changed
The former visual step-sequencer builder and its simulated audio engine have been removed. The App now uses the published upstream runtime directly:
@strudel/repl@1.3.0 for CodeMirror, Strudel evaluation, scheduling, highlighting, samples and Web Audio@strudel/core@1.2.6 for compatible Strudel source sharing- a shell modeled on the upstream Strudel REPL: 40px transport header, full-height editor, right-side menu tabs, examples, sounds, reference, export, console and settings
- a new AI Assistant tab connected to the canonical DeepDeck main-Agent Session
The package identity remains @deepdeck-apps/strudel-vis-builder and the App ID remains strudel-vis-builder.
AI Assistant contract
The standalone App sends a bounded instruction, the complete current Strudel source, a non-negative revision, and up to four optional pasted images through a fixed message action. The bottom-pinned composer supports paste, picker, drag-and-drop, previews, and removal. Users can also select an exact CodeMirror range and right-click to attach it to the composer or trigger a focused Agent rewrite. Questions receive normal Agent replies. Explicit change requests may call one App-owned tool:
- tool:
strudel_apply_source
- effect:
source.replace
- result: a complete Strudel source draft, a base revision and a short summary
Pasted images are validated on both runtime and Host boundaries (PNG/JPEG/WebP/GIF, at most four, 5 MiB each and 12 MiB total), stored through the Harness attachment service, and exposed to the Agent only through expiring opaque tokens and strudel_view_image. Returned drafts are rejected when stale, oversized, malformed or when they contain browser, DOM, network, storage, navigation, import, cross-window messaging or dynamic-evaluation APIs. A successful draft replaces CodeMirror content but never starts playback automatically. The user reviews the code and explicitly presses play/update.
Runtime isolation
Strudel’s official evaluator intentionally uses dynamic JavaScript evaluation. To keep that capability away from the trusted DeepDeck bridge:
- The App window is a same-origin bridge page with a CSP that does not permit
unsafe-eval.
- The Strudel UI runs inside an iframe with
sandbox="allow-scripts allow-downloads allow-popups" and no allow-same-origin.
- The child frame therefore has an opaque origin and cannot read the bridge page, DeepDeck local storage or same-origin Host APIs.
- A private
MessageChannel carries bounded source and Agent state between the two surfaces.
- Only the sandboxed runtime CSP allows
unsafe-eval, remote sample reads and blob workers.
User-authored Strudel still executes as JavaScript inside that sandbox after an explicit play/update action. The default upstream sample manifests are loaded from raw.githubusercontent.com, so first playback may require network access.
Development
bun install
bun test
bun run build
When editing this registered DeepDeck App Workspace, use the Creator apply lifecycle instead of invoking the build separately. Generated lib/ output is build-only.
Architecture
| Area | Source |
|---|
| Cordis Host registration, CSP routes and action tool | src/index.js |
| DeepDeck launcher and main-Agent action | src/client.js |
| Trusted App-window bridge and revision owner | src/app.js |
| Opaque-origin official Strudel runtime and UI | src/runtime.js |
| Source, AI validation and starter pattern | src/studio-model.js |
| Agent prompt contract | src/agent-actions.js |
| Agent Session continuation routing | src/agent-continuation.js |
| Standalone UI styling | src/app.css |
Upstream and license
This App is based on uzu/strudel and includes the unmodified published Strudel REPL package. Strudel and this combined App are licensed under GNU AGPL-3.0-or-later. See LICENSE.
The Strudel name and upstream project remain independent. This integration is modified for DeepDeck and comes with no warranty.
