@guowenzhang/dsh-drawioedit
独立的 DeepSeek Harness 插件：使用上游 draw.io 编辑器在 Web Sidebar 中编辑 .drawio 图表
插件会安装到这里；不确定时保持 web。
npx -y @deepseek-ai/dsh plugin --profile web add @guowenzhang/dsh-drawioedit@0.1.1Drawioedit 以 @guowenzhang/dsh-drawioedit 发布，当前版本为 0.1.1。Plugin Hub 会校验它的 manifest，并保存精确安装来源，便于复现安装结果。
English | 中文
DeepSeek Harness (dsh) is the open-source agent harness from DeepSeek AI, where nearly every capability is a plugin on Cordis. It is in developer preview and iterating fast, so expect compatibility-breaking changes (docs, 0.1.7-alpha.*); this plugin is a standalone third-party package that resolves @deepseek-ai/* from the running host.
There was no way to edit a .drawio diagram inside DSH; this plugin opens it in the upstream draw.io editor in the Sidebar and writes every edit back to the same file.

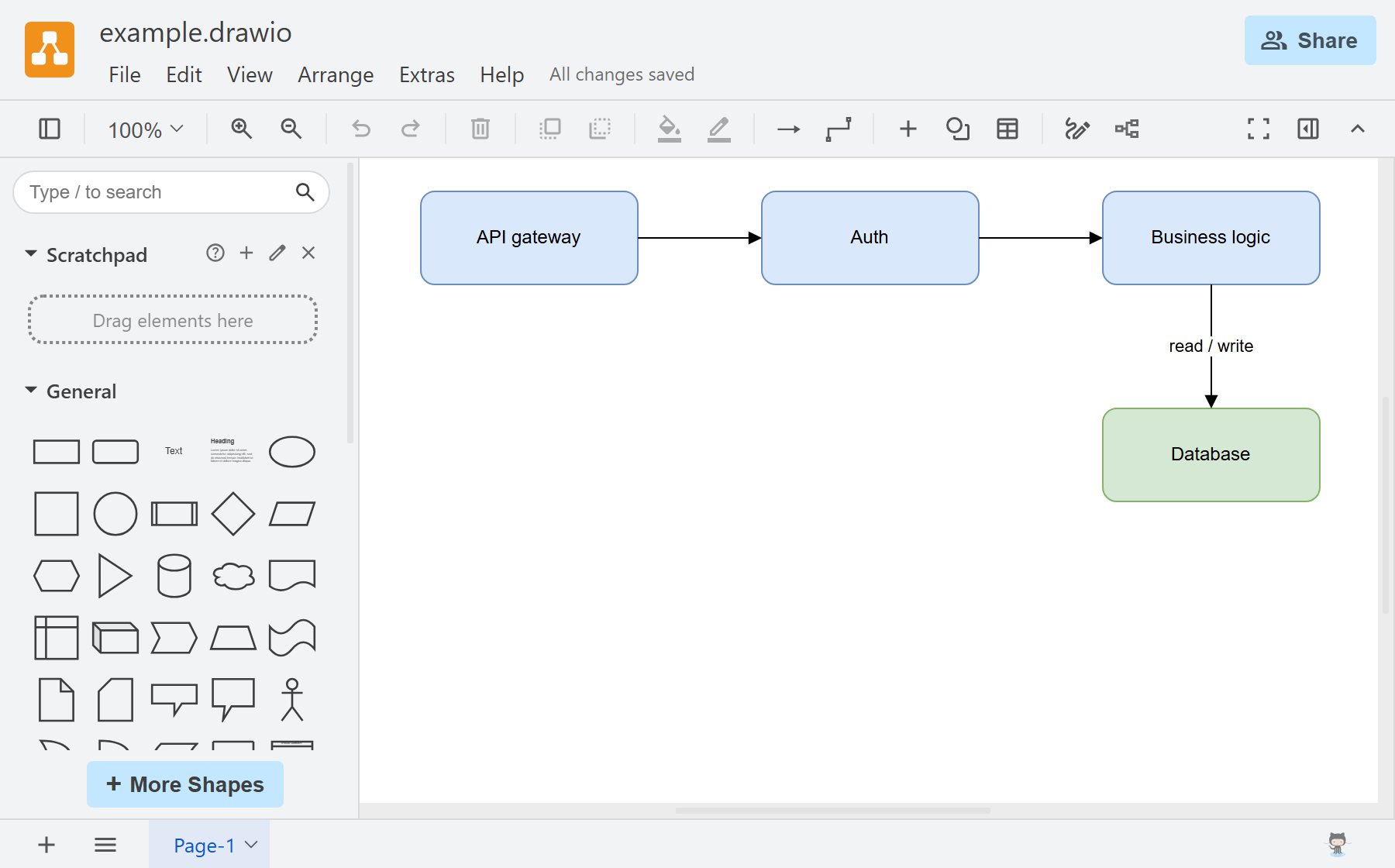

The upstream draw.io editor with a .drawio file open
The capture shows the vendored editor in a tab: example.drawio in the title bar with All changes saved after a write, draw.io's own shape panel on the left, and the file's diagram on the canvas.
npx @deepseek-ai/dsh plugin --profile web add @guowenzhang/dsh-drawioedit
From the npm registry: https://www.npmjs.com/package/@guowenzhang/dsh-drawioedit — restart the host afterwards; local checkouts, git sources and troubleshooting are in AGENTS.md.
Clicking a .drawio file in the file tree opens a Sidebar tab running the full upstream draw.io editor, labelled with the file's name instead of "Untitled Diagram". The tab has draw.io's own menus, toolbar, and shape panel; the file is read from the session's workspace, and nothing is written until you change something.
Every edit is written back to the same file the tab opened:
| Action in the editor | What happens |
|---|---|
| Any edit | Written back within a second, with no dialog |
| Ctrl+S | Written back immediately |
| The toolbar Save button | Written back immediately |
| File → Save and File → Save As | Written back to that same file |
| The editor's own "Unsaved changes. Click here to save." notice | Written back immediately |
Export as still downloads a copy, which is where a copy belongs. A write counts as saved only when the host confirms it, and that is when drawio's notice turns into "All changes saved"; if a write is refused — an agent edited the same file while the tab was open — the tab shows the reason above the editor instead of letting it claim success.
The diagram is named after the file the tab opened, so draw.io's title bar shows example.drawio rather than "Untitled Diagram". The tab holds exactly one file, so Save As writes that file back rather than creating a second one, and Export as is the way out of the workspace.
Apache-2.0. The bundled editor is Apache-2.0 with additional terms on its icon sets and stencil libraries; see NOTICE.
Not affiliated with or endorsed by draw.io Ltd. "draw.io" is a trademark of draw.io Ltd. This package embeds their Apache-2.0 licensed editor.
