dsh-pinpu

Pinpu

DeepSeek Harness 的音频响应式回合轨道：对话右侧边缘条带中的转录内容自身回合标记会随着系统正在播放的内容律动，并将内置的上一回合高亮替换为仅悬停时高亮

目标 Profile

插件会安装到这里；不确定时保持 web。

npx -y @deepseek-ai/dsh plugin --profile web add github:sqslm/dsh-pinpu#fe9854a8721d49d4ae5a38f15f4f2a43760ab009

兼容性与来源证明

Pinpu 以 dsh-pinpu 发布，当前版本为 0.4.0。Plugin Hub 会校验它的 manifest，并保存精确安装来源，便于复现安装结果。

DSH 兼容范围: *
运行环境: web
发布来源: github
Registry 更新时间: 2026/10/14

版本

0.4.0stable

2026/10/14

0.3.3stable

2026/10/14

README

dsh-pinpu · Spectrum Rail

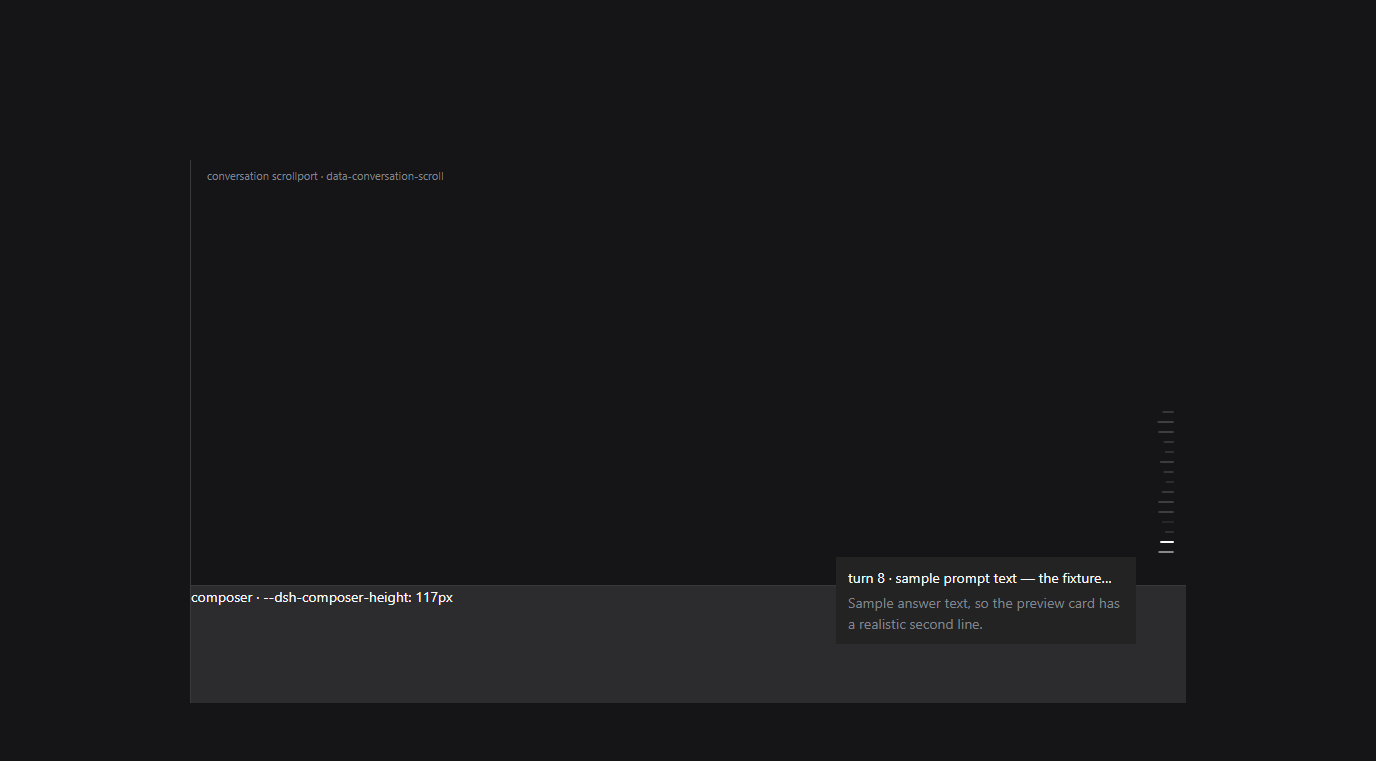

Takes over the transcript's own turn rail — the marks down the right edge of the conversation — and makes them dance to whatever the machine is playing, while replacing DSH's built-in "newest turn is highlighted" state with Codex's behaviour: nothing highlighted by default, highlight only under the pointer, click-to-jump unchanged.

dancing

That is not an illustration. tools/verify/rail-preview.mjs builds a real Chromium page from the shipped rail's own stylesheet and class names, extracted from the installed dsh-client-ui-chat bundle, then loads the real lib/client.js and drives it (only /api/dsh-pinpu/spectrum is stubbed). The differences in mark length are the spectrum: low frequencies at the foot of the rail, next to the newest turn.

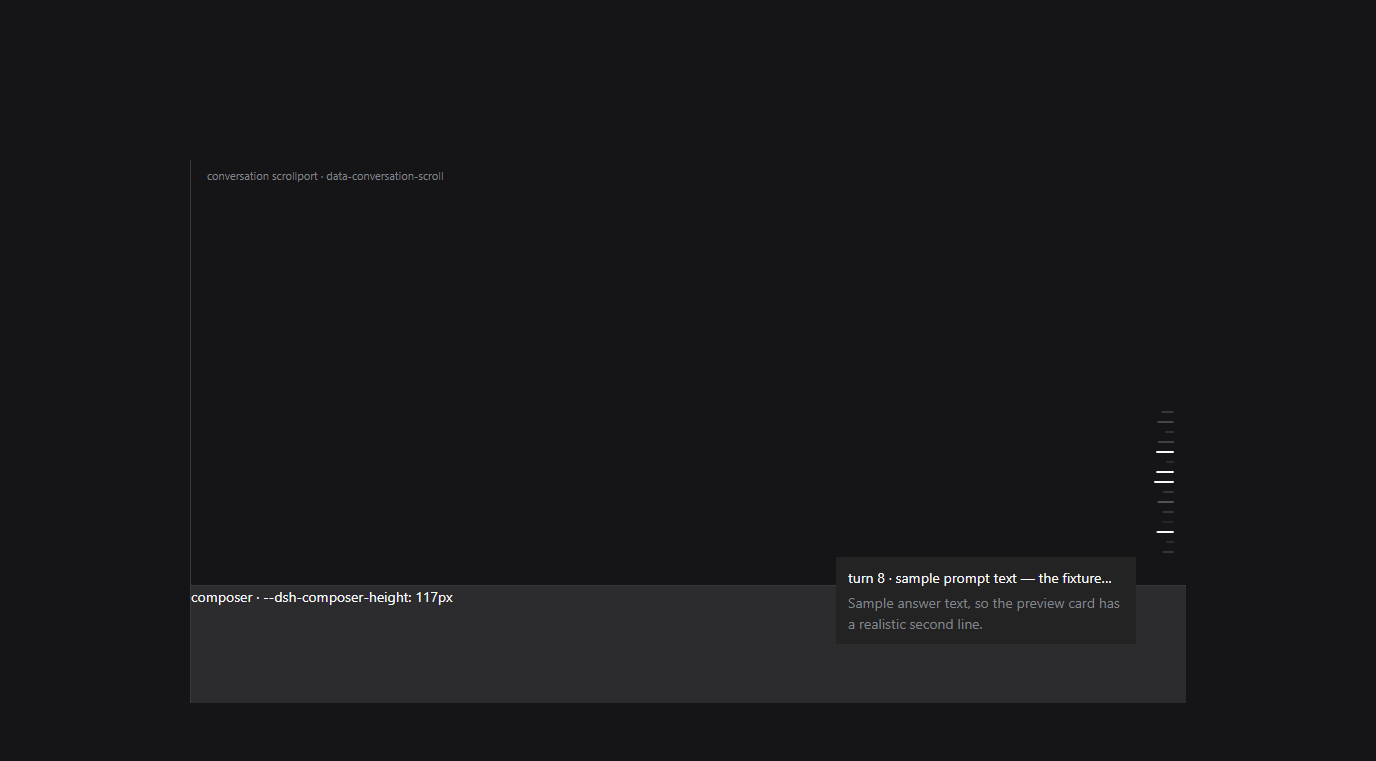

Hovering brightens exactly one mark (the third screenshot from the same run):

hover highlight

Install

From this repository: add the GitHub repository sqslm/dsh-pinpu from DSH's plugin page, the same way any other GitHub plugin is installed, or
Locally packaged: node tools/install-profile.mjs (pnpm pack, then write the package into the profile's dsh.profile.bundles; --uninstall undoes it, --dry-run prints the plan).
Restart DSH once after the first install: the host half (capture, routes) is loaded at process start, the browser half with the page.
No dependencies to install: the native capture module ships with the plugin (see THIRD-PARTY.md), but it needs a CPython 3.12 interpreter — DSH bundles one and the plugin looks for it on its own.
Windows only for now (WASAPI loopback). On Linux this needs a different source (getUserMedia monitor or PulseAudio .monitor), which is not implemented.

hover highlight

中文说明 →

What it changes

The rail's states are CSS-module classes (mark, markActive, markPreview, markBusy, markUnloaded → build-hashed xpvNua_* names). The plugin reads no class name:

Discovery by geometry — inside [data-conversation-scroll], find a group of sibling buttons with one size, one shared right edge and a constant vertical step (≈10px). That group is the rail.
Tagging — the container gets data-pinpu-rail, each mark data-pinpu-tick="i" counting from the bottom mark (0) upwards.
Overriding with one !important stylesheet —
- every mark becomes the same dim colour and the same length, which removes the built-in highlight without knowing which class expresses it;
- :hover brightens the mark under the pointer to full length — and only that;
- while audio plays, each mark's length is its band's level (transform: scaleX(var(--pinpu-scale))), bands laid out logarithmically from 45 Hz to 16 kHz;
- a mark the app is animating (markBusy, detected from the ::before animation) is left alone so its pulse survives.

Click-to-jump is untouched: only the ::before pseudo-element is restyled, the hit area is still the app's own button, and its click listener still fires (measured in the preview: clicks delivered to the app handler: ["7"]).

Measured in one preview run:

State	Last mark (the built-in highlight)	Hovered mark	An un-hovered mark
before	`rgb(249,250,251)`, `scaleX(1)`	—	dim
after, playing	`rgba(255,255,255,.2)`, `scaleX(0.87)`	`rgb(249,250,251)`, `scaleX(1)`	dim, `scaleX(0.49)`

Audio: the system output itself (NetEase Cloud Music and friends)

any player → default output device → WASAPI loopback → spectrum → the rail

It captures the loopback of the default output device — literally what you hear. No virtual cable, and no player-specific support.
To pin one device (headphones plugged in, but capture the onboard card), pick it in the settings card's device list; empty means "follow the default output".
Capture happens in the host half: it runs vendor/loopback.py with the Python the harness ships, and that helper uses the vendored PyAudioWPatch (≈290 KB, the PortAudio build with loopback support) to open a [Loopback] input and stream mono float32 PCM on stdout. The host does the FFT and band mapping; the browser half only draws.
Therefore: no microphone permission, no user gesture, and not one line of capture code in the renderer.

Why not getUserMedia: it can only open capture endpoints. Measured on this machine, the registry has 立体声混音 (Realtek USB Audio) but disabled (DeviceState=0x10000001 where every endpoint Chromium lists is 0x1), so navigator.mediaDevices never shows it; more importantly Stereo Mix mirrors one render device, and this machine listens on that headset — so even enabled it would not carry what you hear. Loopback of the default output is the only thing that works.

Settings (Settings → 频谱律动)

The host owns the signal, the browser owns the presentation. Everything is .volatile(), so edits apply live (mounting the bundle still needs one restart).

Field	Default	Side	Meaning
`enabled`	`true`	host	master switch; off spawns no capture process at all
`device`	`''`	host	empty follows the default output, else a `[Loopback]` device
`fftSize`	`1024`	host	FFT window, ≈21 ms at 48 kHz
`smoothing`	`0.78`	host	frame-to-frame smoothing
`gain`	`1`	host	gain after the level curve
`autoGain`	`true`	host	normalise per band against the loudest band
`gate`	`0.04`	host	at or below this is silence
`minHz` / `maxHz`	`45` / `16000`	host	spectrum range
`disableActiveHighlight`	`true`	browser	remove the built-in newest-turn highlight
`hoverHighlight`	`true`	browser	highlight only under the pointer
`restoreOnSilence`	`true`	browser	stop moving once the audio has been quiet for a while
`minScale` / `maxScale`	`0.4` / `1`	browser	shortest / longest mark, as a fraction of 20px (0.4 is the app's own "unloaded" length)
`invert`	`false`	browser	put the low band at the top instead
`colorMode`	`theme`	browser	`theme` keeps the rail's colour; `spectrum` hues by band; `custom` uses one colour

The two highlight modes

Both light up marks that are already there — nothing is drawn, added or moved. A highlighted mark takes the same bright colour a hovered mark gets, at full strength, while keeping the length the spectrum gave it.

Length threshold (hotScale): the comparison is made on the visible length — the very value written into --pinpu-scale — rather than on the level, so one parameter is only ever interpreted once. The default 0.85 lights a band that is nearly full length; 1.05 is equivalent to off (the spectrum cannot reach it), as is 0.
Random (spark): a rate, not a probability, because a per-frame chance is meaningless to tune. Each highlight picks one mark that is neither busy nor already lit and lights it for 160–420 ms; it releases by itself on a later poll, with no extra timer to leak. Silence never sparks, so ordinary listening gets an occasional accent rather than a strobe.
A mark that is still generating (markBusy) is left entirely alone, and a pointer on the rail still outranks both.

Measured in a real browser (tools/verify/rail-preview.mjs, 28 sampled frames):

samples with a highlighted mark: 23 of 28 (threshold 20, random 3)
a highlighted mark, computed: {"reason":"spark","background":"rgb(249, 250, 251)","opacity":"1","transform":"matrix(0.693…)","scale":"0.723"}

Bright colour, full strength, and the mark's own length (0.723) untouched.

Why auto-gain

Measured with the preview harness: without normalisation, 24 bands span only 0.51..0.76, which draws as six distinct lengths out of 37 — a flat wall. With it, the same signal spans 0.18..1.0 and eleven lengths. The same harness showed Chromium's default -100..-30 dB analyser window pegs normally-mastered material, so the ceiling is raised to -25 dB.

Verification status

Means	Covers	Result
`node --test test/*.mjs` (55)	manifest/patch contract, three-way default agreement, real `schemastery` validation, route auth and payloads, capture start/stop, FFT checked band-by-band against a naive DFT, band/resample/level contracts, the geometry rules that identify the rail, and the engine's whole take-over (discover → tag → poll → write lengths → hand back on silence → park on error → clean up when disabled)	all green
`node tools/verify/host-smoke.mjs`	the real host chain: `apply()` → capture process → loopback PCM → FFT → route payload	`status: live`, device `Speakers (Realtek Audio) [Loopback]`, peak 0.95, 11 distinct lengths, non-loopback Host rejected with 403
`node tools/verify/rail-preview.mjs`	real browser + the shipped rail CSS/classes + the real `lib/client.js`: built-in highlight gone, hover highlight, click still reaching the app's handler, lengths following the spectrum	`VERDICT: the shipped rail was taken over and dances`
the plugin page and settings card inside the running app	not verified — a restart would kill the session that performed the work	needs one restart; see below

Checklist after a restart:

the Plugins page lists dsh-pinpu / 频谱律动, enabled;
Settings → 频谱律动 reads the configuration and its status line shows 采集中 plus the device name (i.e. the host capture is up);
play something (NetEase Cloud Music is fine): the rail's marks start changing length and the newest turn is no longer permanently lit; hover a mark and only that one brightens; clicking still jumps to that turn. If the status says the Python runtime is missing, or 错误, the card names the reason.

Install / update / uninstall

cd path\to\dsh-pinpu
node --test test/*.mjs                 # run the tests first
node tools/verify/host-smoke.mjs       # optional: prove system audio is captured
node tools/install-profile.mjs         # pack, back up, edit the profile, pnpm install --offline
# then restart Harness once: a bundle row is applied at boot

Why a tarball, not link: — a link: dependency resolves to its real path outside the profile, so the host half's import z from '@deepseek-ai/schemastery' would be resolved against the source directory instead of the profile's node_modules, where the core packages live. dsh-purge documents the same trap. An installed tarball (including vendor/) resolves exactly like the harness's own packages.
Repack after every source change and bump the version: pnpm may consider an identical version already up to date and keep the stale copy.
Uninstall: node tools/install-profile.mjs --uninstall, then restart — or restore the .bak-pinpu-* backups of package.json / pnpm-lock.yaml.

Known limitations

The take-over depends on the rail's geometry (a column of equally sized, right-aligned, evenly stepped buttons). If DSH changes that layout the plugin will simply not recognise the rail — it will not damage the page, and the settings card reports zero marks.
It captures the loopback of the device you selected; following the default output is automatic, pinning a device is not.
The number of bands is the number of turns (one per mark); minScale/maxScale only change the length range.
A mark the app is animating (the busy pulse) does not dance; it keeps its own pulse.
Loopback capture needs a PortAudio build with loopback support (the Windows wheel of pyaudiowpatch ships in the package); other platforms need their own.

License

MIT.

README

dsh-pinpu · Spectrum Rail

Takes over the transcript's own turn rail — the marks down the right edge of the conversation — and makes them dance to whatever the machine is playing, while replacing DSH's built-in "newest turn is highlighted" state with Codex's behaviour: nothing highlighted by default, highlight only under the pointer, click-to-jump unchanged.

dancing

Hovering brightens exactly one mark (the third screenshot from the same run):

hover highlight

Install

From this repository: add the GitHub repository sqslm/dsh-pinpu from DSH's plugin page, the same way any other GitHub plugin is installed, or
Locally packaged: node tools/install-profile.mjs (pnpm pack, then write the package into the profile's dsh.profile.bundles; --uninstall undoes it, --dry-run prints the plan).
Restart DSH once after the first install: the host half (capture, routes) is loaded at process start, the browser half with the page.
No dependencies to install: the native capture module ships with the plugin (see THIRD-PARTY.md), but it needs a CPython 3.12 interpreter — DSH bundles one and the plugin looks for it on its own.
Windows only for now (WASAPI loopback). On Linux this needs a different source (getUserMedia monitor or PulseAudio .monitor), which is not implemented.

hover highlight

中文说明 →

What it changes

The rail's states are CSS-module classes (mark, markActive, markPreview, markBusy, markUnloaded → build-hashed xpvNua_* names). The plugin reads no class name:

Discovery by geometry — inside [data-conversation-scroll], find a group of sibling buttons with one size, one shared right edge and a constant vertical step (≈10px). That group is the rail.
Tagging — the container gets data-pinpu-rail, each mark data-pinpu-tick="i" counting from the bottom mark (0) upwards.
Overriding with one !important stylesheet —
- every mark becomes the same dim colour and the same length, which removes the built-in highlight without knowing which class expresses it;
- :hover brightens the mark under the pointer to full length — and only that;
- while audio plays, each mark's length is its band's level (transform: scaleX(var(--pinpu-scale))), bands laid out logarithmically from 45 Hz to 16 kHz;
- a mark the app is animating (markBusy, detected from the ::before animation) is left alone so its pulse survives.

Measured in one preview run:

State	Last mark (the built-in highlight)	Hovered mark	An un-hovered mark
before	`rgb(249,250,251)`, `scaleX(1)`	—	dim
after, playing	`rgba(255,255,255,.2)`, `scaleX(0.87)`	`rgb(249,250,251)`, `scaleX(1)`	dim, `scaleX(0.49)`

Audio: the system output itself (NetEase Cloud Music and friends)

any player → default output device → WASAPI loopback → spectrum → the rail

It captures the loopback of the default output device — literally what you hear. No virtual cable, and no player-specific support.
To pin one device (headphones plugged in, but capture the onboard card), pick it in the settings card's device list; empty means "follow the default output".
Capture happens in the host half: it runs vendor/loopback.py with the Python the harness ships, and that helper uses the vendored PyAudioWPatch (≈290 KB, the PortAudio build with loopback support) to open a [Loopback] input and stream mono float32 PCM on stdout. The host does the FFT and band mapping; the browser half only draws.
Therefore: no microphone permission, no user gesture, and not one line of capture code in the renderer.

Settings (Settings → 频谱律动)

The host owns the signal, the browser owns the presentation. Everything is .volatile(), so edits apply live (mounting the bundle still needs one restart).

Field	Default	Side	Meaning
`enabled`	`true`	host	master switch; off spawns no capture process at all
`device`	`''`	host	empty follows the default output, else a `[Loopback]` device
`fftSize`	`1024`	host	FFT window, ≈21 ms at 48 kHz
`smoothing`	`0.78`	host	frame-to-frame smoothing
`gain`	`1`	host	gain after the level curve
`autoGain`	`true`	host	normalise per band against the loudest band
`gate`	`0.04`	host	at or below this is silence
`minHz` / `maxHz`	`45` / `16000`	host	spectrum range
`disableActiveHighlight`	`true`	browser	remove the built-in newest-turn highlight
`hoverHighlight`	`true`	browser	highlight only under the pointer
`restoreOnSilence`	`true`	browser	stop moving once the audio has been quiet for a while
`minScale` / `maxScale`	`0.4` / `1`	browser	shortest / longest mark, as a fraction of 20px (0.4 is the app's own "unloaded" length)
`invert`	`false`	browser	put the low band at the top instead
`colorMode`	`theme`	browser	`theme` keeps the rail's colour; `spectrum` hues by band; `custom` uses one colour

The two highlight modes

Length threshold (hotScale): the comparison is made on the visible length — the very value written into --pinpu-scale — rather than on the level, so one parameter is only ever interpreted once. The default 0.85 lights a band that is nearly full length; 1.05 is equivalent to off (the spectrum cannot reach it), as is 0.
Random (spark): a rate, not a probability, because a per-frame chance is meaningless to tune. Each highlight picks one mark that is neither busy nor already lit and lights it for 160–420 ms; it releases by itself on a later poll, with no extra timer to leak. Silence never sparks, so ordinary listening gets an occasional accent rather than a strobe.
A mark that is still generating (markBusy) is left entirely alone, and a pointer on the rail still outranks both.

Measured in a real browser (tools/verify/rail-preview.mjs, 28 sampled frames):

samples with a highlighted mark: 23 of 28 (threshold 20, random 3)
a highlighted mark, computed: {"reason":"spark","background":"rgb(249, 250, 251)","opacity":"1","transform":"matrix(0.693…)","scale":"0.723"}

Bright colour, full strength, and the mark's own length (0.723) untouched.

Why auto-gain

Verification status

Means	Covers	Result
`node --test test/*.mjs` (55)	manifest/patch contract, three-way default agreement, real `schemastery` validation, route auth and payloads, capture start/stop, FFT checked band-by-band against a naive DFT, band/resample/level contracts, the geometry rules that identify the rail, and the engine's whole take-over (discover → tag → poll → write lengths → hand back on silence → park on error → clean up when disabled)	all green
`node tools/verify/host-smoke.mjs`	the real host chain: `apply()` → capture process → loopback PCM → FFT → route payload	`status: live`, device `Speakers (Realtek Audio) [Loopback]`, peak 0.95, 11 distinct lengths, non-loopback Host rejected with 403
`node tools/verify/rail-preview.mjs`	real browser + the shipped rail CSS/classes + the real `lib/client.js`: built-in highlight gone, hover highlight, click still reaching the app's handler, lengths following the spectrum	`VERDICT: the shipped rail was taken over and dances`
the plugin page and settings card inside the running app	not verified — a restart would kill the session that performed the work	needs one restart; see below

Checklist after a restart:

the Plugins page lists dsh-pinpu / 频谱律动, enabled;
Settings → 频谱律动 reads the configuration and its status line shows 采集中 plus the device name (i.e. the host capture is up);
play something (NetEase Cloud Music is fine): the rail's marks start changing length and the newest turn is no longer permanently lit; hover a mark and only that one brightens; clicking still jumps to that turn. If the status says the Python runtime is missing, or 错误, the card names the reason.

Install / update / uninstall

cd path\to\dsh-pinpu
node --test test/*.mjs                 # run the tests first
node tools/verify/host-smoke.mjs       # optional: prove system audio is captured
node tools/install-profile.mjs         # pack, back up, edit the profile, pnpm install --offline
# then restart Harness once: a bundle row is applied at boot

Why a tarball, not link: — a link: dependency resolves to its real path outside the profile, so the host half's import z from '@deepseek-ai/schemastery' would be resolved against the source directory instead of the profile's node_modules, where the core packages live. dsh-purge documents the same trap. An installed tarball (including vendor/) resolves exactly like the harness's own packages.
Repack after every source change and bump the version: pnpm may consider an identical version already up to date and keep the stale copy.
Uninstall: node tools/install-profile.mjs --uninstall, then restart — or restore the .bak-pinpu-* backups of package.json / pnpm-lock.yaml.

Known limitations

The take-over depends on the rail's geometry (a column of equally sized, right-aligned, evenly stepped buttons). If DSH changes that layout the plugin will simply not recognise the rail — it will not damage the page, and the settings card reports zero marks.
It captures the loopback of the device you selected; following the default output is automatic, pinning a device is not.
The number of bands is the number of turns (one per mark); minScale/maxScale only change the length range.
A mark the app is animating (the busy pulse) does not dance; it keeps its own pulse.
Loopback capture needs a PortAudio build with loopback support (the Windows wheel of pyaudiowpatch ships in the package); other platforms need their own.

License

MIT.
