DSH Annotation
English | 中文
Summary
Select text in replies, diffs, or files → annotate → send with a message. Replies address each annotation in order, and source navigation makes notes easy to look up. A per-Session record keeps annotations and the current attachment selection together. The plugin sends notes with the official composer's text, images, and files; unsent work stays in the current browser.
Version 1.1.7 requires DSH >=0.2.2-alpha.3; verification targets master commit 8bd073392e. See upgrading before updating an older Host.
Contents
Install and upgrade
The package is distributed through GitHub Releases, not npm. In dsh-market, find ruisenbai/dsh-annotation under Sessions & Messages, then install or update it. The catalog uses the release's stable tarball alias; check the offered version and Host requirement before proceeding.
Manual installation
Install the fixed release into your web profile:
dsh --version
dsh plugin --profile web add https://github.com/ruisenbai/dsh-annotation/releases/download/v1.1.7/dsh-annotation.tgz
dsh plugin --profile web why dsh-annotation
The Host must satisfy >=0.2.2-alpha.3; the final command must resolve dsh-annotation@1.1.7. For a custom profile, replace both occurrences of web with its name. Restart that profile's running Web Host, refresh the page, and check Settings → Annotations. Build instructions and executed verification results are in Development and Compatibility.
When Codex UI is enabled, annotation compatibility activates automatically to keep attached notes clear of the input text. No setting is required; disabling Codex UI restores the standard layout. See Codex UI compatibility.
Annotation controls follow the Host's theme, rounded corners, and panel materials. The selection toolbar, annotation editors, detail and attachment previews, and grouped-note menus use text one pixel smaller than the conversation body; ordinary tooltips retain their own size. New-note editors have 10px vertical padding, and their text fields grow with the text up to seven visible lines. Attached-note previews stay within the window, and narrow record panels place actions below the note text.
Install with an AI agent
Give an agent with terminal access this prompt:
Install dsh-annotation 1.1.7 into my DeepSeek Harness Web profile. Use web unless I specify another profile. Run dsh --version and require >=0.2.2-alpha.3 before continuing. Install https://github.com/ruisenbai/dsh-annotation/releases/download/v1.1.7/dsh-annotation.tgz with dsh plugin --profile <profile> add, then verify dsh plugin --profile <profile> why dsh-annotation resolves 1.1.7. Preserve Host dependencies, Sessions, settings, and browser data. Report the actual commands, versions, result, warnings, and whether a Host restart is needed.
Upgrading from an older Host
Update the Host to 0.2.2-alpha.3 or newer before installing 1.1.7. The supported Host family supplies the unified Quote text / Add annotation toolbar. Keep 1.1.6 on 0.2.2-alpha.2, 1.1.5 on 0.2.1-rc.2, and plugin 1.1.2 while using 0.2.1-alpha.2, 1.1.1 on 0.2.1-alpha.1, or 1.1.0 on the 0.2.0 family. Drafts, source bubbles, recycle-bin records, and frozen retries retain their existing data formats; do not clear browser storage as an upgrade step. The upgrade guide (中文) gives the version checks.
Supported sources
Use the official preview or sidebar for the source you want to review:
| Source | How to annotate | Navigation |
|---|
| Assistant reply | Select text within one reply and choose Add annotation | Bubble or record-row pin returns to the saved passage |
| Official text, code, or Markdown file preview | Select a range or choose Annotate this source for the whole file | Opens the official preview and locates the saved range |
| Official HTML, image, PDF, Office, Excel, CSV, or TSV preview | Use the whole-file action; rendered text selection is available only in text/code/Markdown previews | Retains the official resource identity and preview revision |
| Official turn Diff | Open the Diff sidebar from the turn's changed-file card; select a range or annotate the whole file | Opens the same official Diff review and saved annotation |
| Historical Git Diff | Read existing records and saved context | Read-only; no new annotation, editing, attachment, or retry |
File and Diff annotations
Whole-file notes require written feedback. Official Diff hover previews have no creation entry; use the sidebar. Source filters appear when the Session contains at least two types. File and Diff notes retain source identity, range coordinates, and quote context; temporary loading or navigation failures keep the saved record available.
Create and edit notes
- Select source text and choose Add annotation. In a reply, the Host shows one toolbar with Quote text and Add annotation: Quote text inserts the passage into the composer; Add annotation opens the note editor. Overlapping selections create separate notes.
- Type in the editor below the selection. Enter or the check button saves; Shift+Enter adds a line break. Chinese input composition does not trigger an early save. The input grows from one to seven lines, then scrolls internally.
- Explicitly save an empty selection note to mark only the source. For a blank new editor, the first two outside clicks shake it; the third cancels it. Typing in the composer also cancels a blank new editor. Canceling creates no record, bubble, attachment, or trash item. A nonempty new note saves on the third outside click.
- Click a numbered bubble to open its note. Drafts can be edited; sent notes show their saved text and can be attached again. Canceling an edit keeps the saved note. A suspended unfinished edit is not sent.
The bubble follows the last selected character and scrolls with its source. Its blue surface has a white outline and number: translucent and frosted at rest or on hover, opaque while its note or group menu is open, and frosted again after closing. Browsers without backdrop blur use an opaque fill. Nearby bubbles can share a group menu. Source text has no permanent fill or underline; hovering or activating the bubble highlights the quote.
Select source text
Write an annotation
Open a numbered bubble

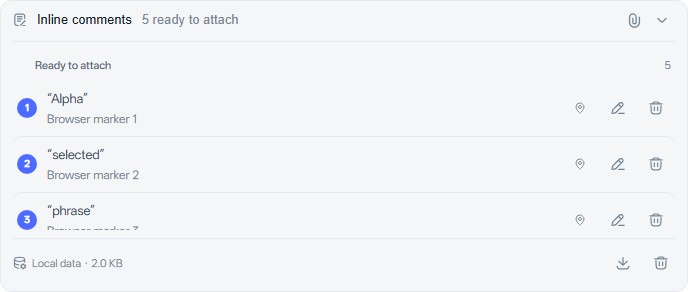

Records and attachments
New notes attach to the next message by default without opening the record. The composer's upper-left chip shows the attached count. Hover to preview quotes and opinions; click to expand or fold the record. The annotation button left of the model selector also opens or closes it. A conversation without annotations shows no empty record.
Each record row offers a paperclip to attach or detach, a pin to locate its source, editing for drafts, and deletion when the record is not locked by sending. Hover its text to inspect the quote, source type, creation entry, and saved context above the record, clear of its row actions. The chip also provides batch detachment and deletion controls on hover or keyboard focus. Detachment keeps the note; deletion moves it to the recycle bin.
Records show a total count and use the same attachment controls throughout. Delivery labels and status dots are hidden. All records are ordered newest-created first, including after reopening or changing the All / Body / Diff / File filter. Attaching or detaching a note keeps its row in place. Editing leaves creation order unchanged; source bubble numbers, submission order, and frozen retries are independent of display order.

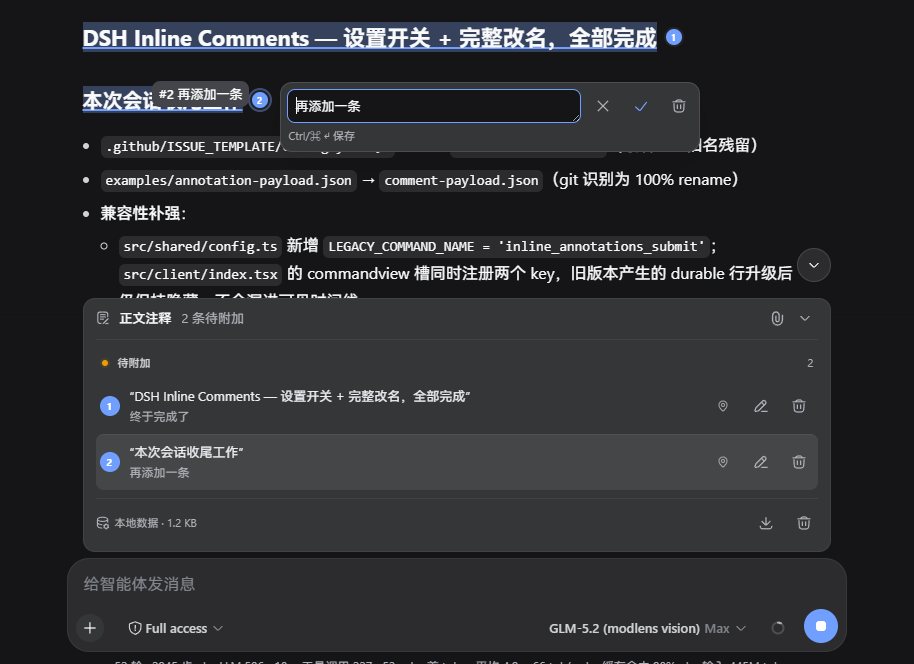

Annotation record and composer chip
Send, resend, and retry
Use the official composer to send attached notes with optional text, images, and files. Regular slash commands keep their own behavior. Attachment and editing controls stay locked while the Host checks or sends the message. The sent user message shows an annotation count above its body: hover a single note to preview it and double-click to locate its source, or expand a multi-note count to inspect and locate individual notes. The record closes when all annotations are sent and none remains attached.
Use any available note's paperclip to attach it again after sending. Its annotation ID and source bubble stay the same, and no duplicate record is created. Reply labels such as Annotation 1 appear in blue bold text without an underline; hover to preview the note and click to locate its source.
After a failed send, submit through the composer again to retry the saved batch, or choose Discard in the record to abandon that retry. A retry keeps the original notes, overall requirement, locale, target Session, and attachment order. After a refresh, reselect the same attachments if requested; the plugin refuses changed attachment identities. New edits and selections do not silently replace the saved batch. Queued or already accepted submissions are not sent again by stale retry actions.
Annotations above a sent message
Attach a sent note again
Delete and recover
Delete one record or the chip's attached batch to move the notes into the browser-local recycle bin. A successful deletion offers Undo. Sending or retry-locked notes must be released from that operation before deletion; the UI explains the lock. Deleting a sent record never edits the original Session message.
Open Settings → Annotations → Recycle bin to filter by Session and source type, inspect saved quotes and opinions, and restore records. Session labels use project and title metadata when available. Available source snapshots can be previewed, and saved files can be downloaded; when the complete source is unavailable, its status appears only in the recycle-bin details, and the saved quote remains usable. Permanent deletion and clearing the bin require confirmation. They remove local recycle-bin content, not sent Session messages.
Settings
Settings → Annotations provides four switches, all enabled by default:
| Setting | Effect |
|---|
| Enable annotations | Shows annotation UI and composer integration; disabling preserves local data |
| File-preview annotations | Enables creation from official file previews |
| Official turn-Diff annotations | Enables creation from the official Diff sidebar |
| Attach new annotations automatically | Attaches a saved new note to the next message; otherwise use its paperclip |
Changes are staged until Save. Discard drops unsaved settings, and Reset restores the inherited/default value for an overridden field. Disabling a source entry preserves its existing records. Historical compact-summary and transcript-hiding settings have no active controls or effects.
When dsh-market provides its public update API, the same card can check and install this plugin's update and show progress. Force is offered only after an eligible release-policy failure; rollback, page refresh, and Host restart depend on the capabilities returned by Market. Without that API, use Settings → Plugin Market. Annotation content is not included in update requests.

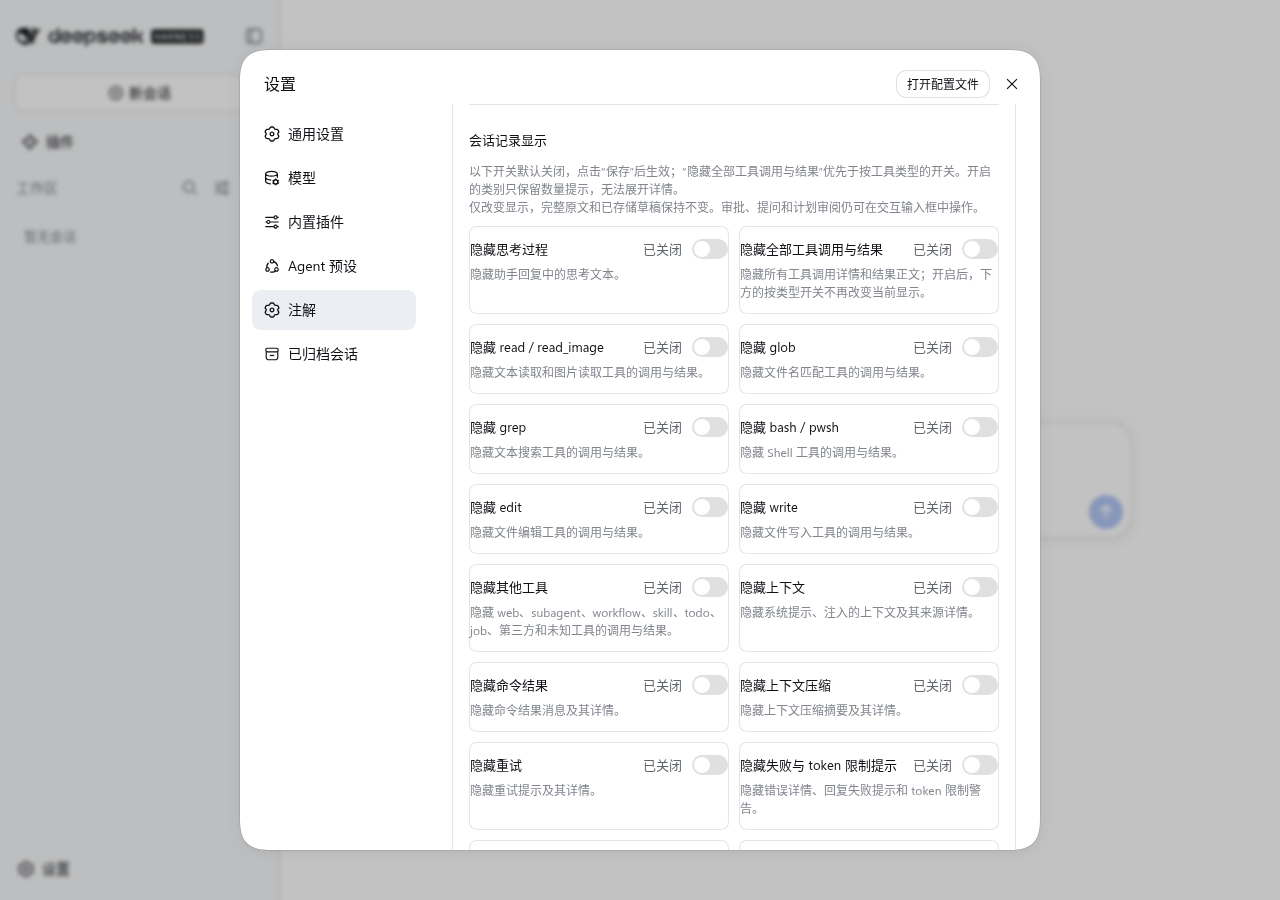

Annotation settings
Data and limitations
- Unsent drafts, suspended edits, retries, recycle-bin entries, and source snapshots stay in the current browser. They do not synchronize across browsers; clearing site data can remove them. Sent annotation records can be restored from Session history.
- Multiple tabs coordinate local writes and preserve conflicting edits. Corrupt or future-version data is retained with an error instead of being replaced by an empty state.
- A selection cannot cross assistant messages. Markdown, code, and table navigation depend on the Host's rendered content and available history. The plugin does not hide reasoning, tools, or other conversation content.
- Whole-file annotations require an opinion. Large selections ask for confirmation. The default submission limits are 100 annotations and 512 KiB of encoded payload; a profile can configure them.
- Archived Sessions have no active composer; create and attach notes in an editable Session.
- Historical Git Diff records remain read-only. Existing submitted protocols and Session messages are not rewritten during browser-data migration.
- DSH Web in Chromium is the tested browser target. Other browsers, operating systems, future Host releases, and optional third-party plugin combinations need their own verification.
See Privacy for local data and network requests, and Data model for persistence and retry rules.
Model experience
The composer sends the selected annotations as one user message, with each quote, opinion, source identity, and any overall request. The current UI asks for ordered answers to the notes. A source-only mark has no written opinion. Full local source snapshots are not automatically added to the model request.
Unsent notes add no model context. Each batch shares concise handling instructions and omits unused sections; grouping related notes shares this fixed cost. Submitted text and hidden markers occupy context while retained in model history. Message formatting defines the retained fields and conditional instructions.
Replies carry hidden annotation association and completion markers so the plugin can link answers to their sources and recognize processed notes. The displayed text hides those markers while the Session log retains them. Missing or invalid acknowledgements leave the record unprocessed; a successful transport alone is not a model acknowledgement.
Developer reference
Configuration and implementation
The bundle patch inserts one dsh-annotation entry for the Host command and Web Client. Its profile configuration controls commandName, maxPayloadBytes, maxAnnotationsPerSubmission, warnSelectionChars, and locateHistoryPages; the four user switches are edited through Host Settings. Architecture owns the integration and configuration reference.
Development covers builds, package verification, real Web profile checks, and record-performance measurements. Compatibility records the exact Host baseline and executed evidence. Releasing covers GitHub assets and catalog updates.
Contributing · Changelog · License
Dev Note
None.
