@crosery/dsh-viewer
通过 display_file 工具在 dsh Web 界面中内嵌渲染图像、视频、音频、PDF 和 Office 文档，并通过支持范围请求的签名 HTTP 路由流式传输字节。
插件会安装到这里；不确定时保持 web。
npx -y @deepseek-ai/dsh plugin --profile web add github:Crosery/dsh-viewer#0fab30f7d88f23fcf0ee7fac1b32ea2cf874825b
Viewer 以 @crosery/dsh-viewer 发布，当前版本为 0.1.1。Plugin Hub 会校验它的 manifest，并保存精确安装来源，便于复现安装结果。
Everything renders. One display_file tool that puts images, video, audio, PDF, Office documents and local web pages inline in the DeepSeek Harness web UI — with a real player, not a filename and a byte count.
The harness ships read_image, whose job is to put a picture into model context. It refuses on a text-only route, it handles four raster formats, and the built-in web client draws no card for it — so the human in front of the screen sees one line of text.
This plugin inverts that. Its job is to put a file on your screen. A text-only model route is a normal outcome, not a refusal, and every medium a browser can play is in scope.
36 file extensions across 6 render kinds:
| Kind | Element | Extensions |
|---|---|---|
| Image | <img> + click-to-zoom lightbox | png jpg jpeg webp gif svg avif bmp ico apng |
| Video | <video controls>, seekable | mp4 m4v webm ogv mov |
| Audio | <audio controls> | mp3 m4a aac wav flac ogg oga opus |
| embedded viewer | pdf | |
| Document | converted to PDF, embedded | docx doc rtf odt xlsx xls ods pptx ppt odp |
| Web page | sandboxed <iframe> | html htm |
Anything else still gets a card with its type, size and an open link — there is no kind that renders nothing.
On a model route that accepts image input, a png / jpg / jpeg / webp / gif also enters the model's own context, so one call both shows you the file and lets the model see it. Everything else is shown to you only, and the card says so.

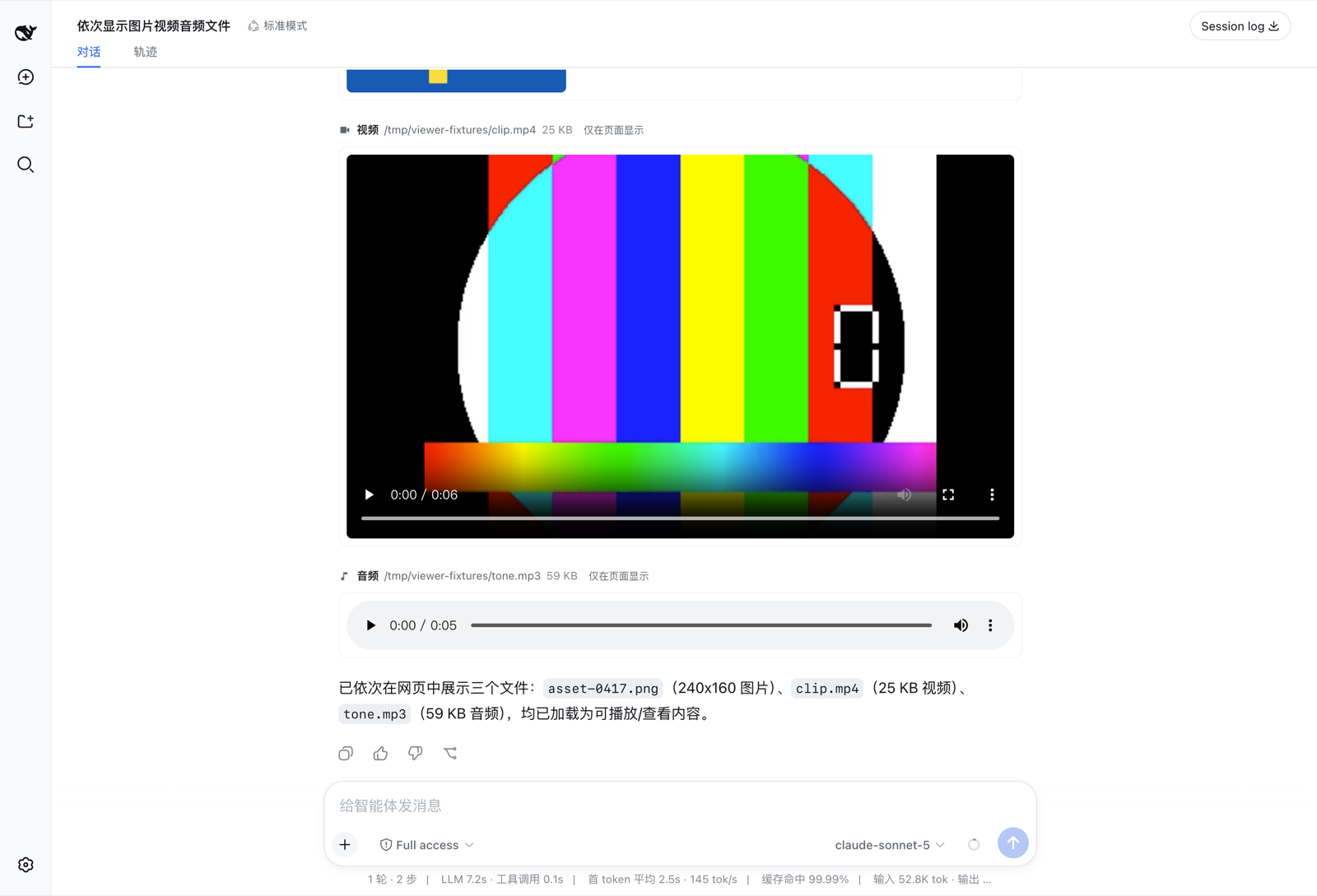

Images, video and audio in one turn — real players, real scrub bars:
Images, video and audio rendered inline

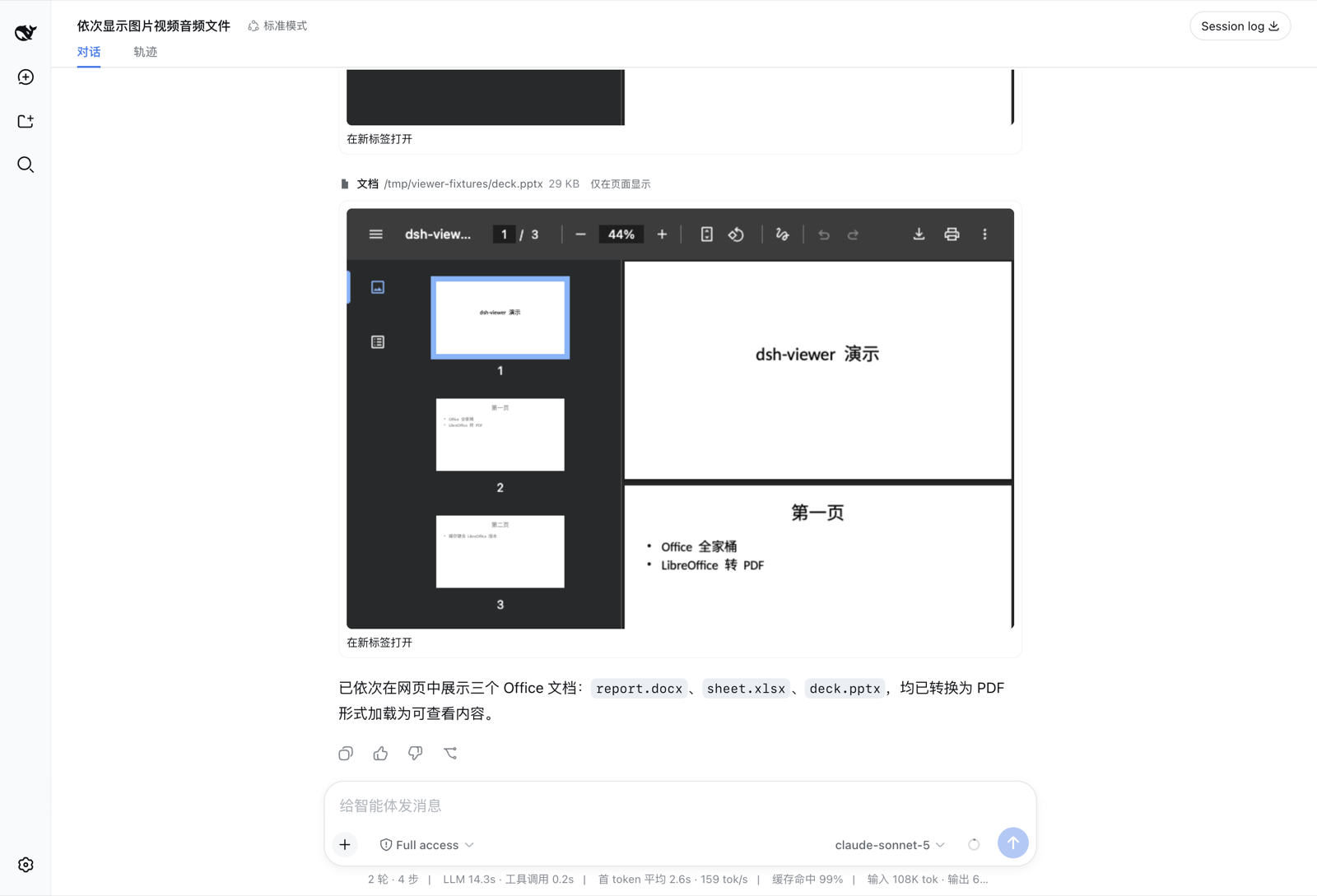

Word, Excel and PowerPoint, converted on the host and embedded:
Office documents rendered inline

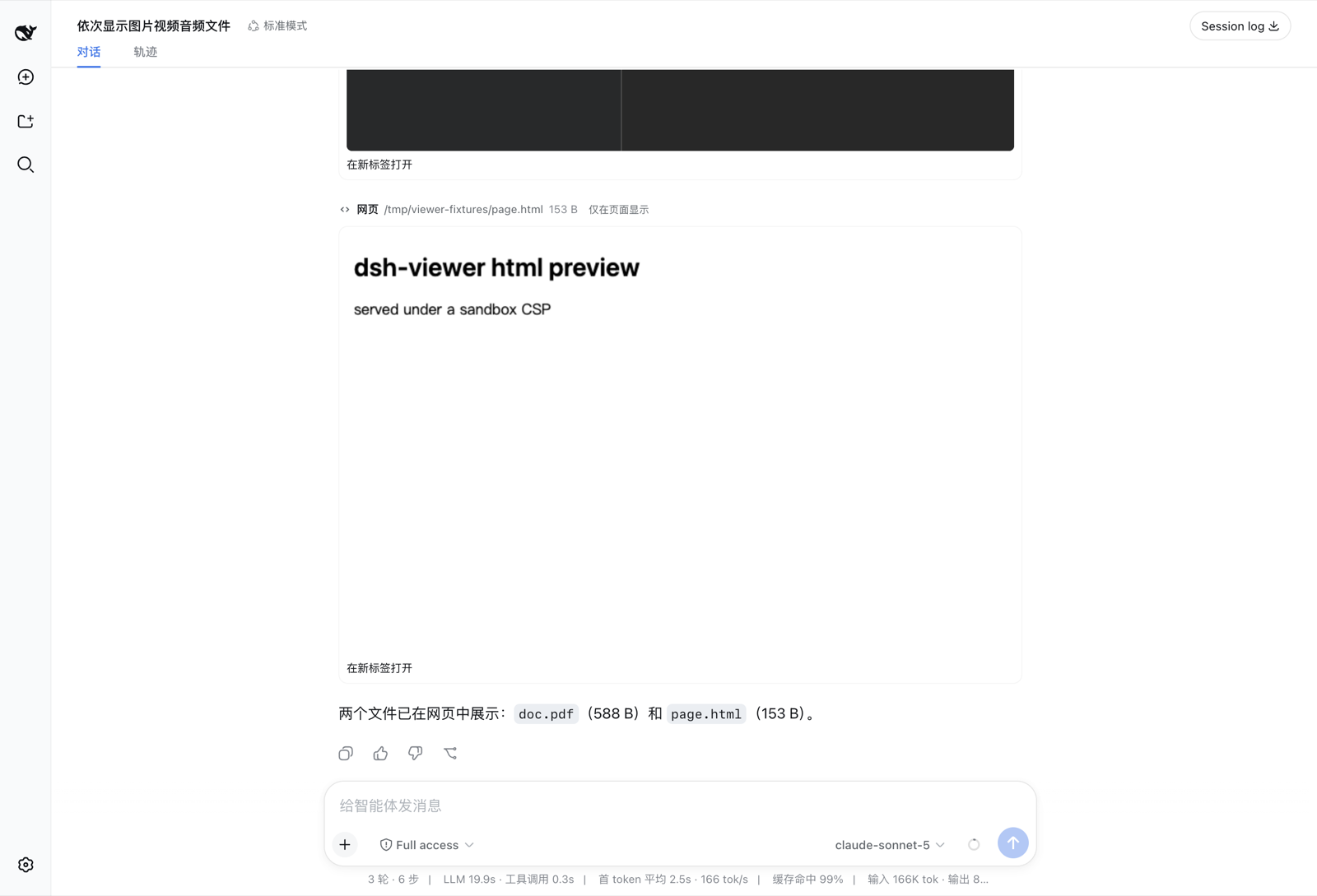

PDF and a local HTML page, live:
dsh plugin --profile web add github:crosery/dsh-viewer
Then add the package name to dsh.profile.bundles in your profile's package.json and restart the profile — bundle membership changes do not hot-reload.
The repository ships its built halves, so this needs no build step and no allowBuilds entry in your profile. The same code is attached to every release as a tarball if you prefer a pinned, versioned install:
dsh plugin --profile web add https://github.com/Crosery/dsh-viewer/releases/latest/download/dsh-viewer.tgz
Office rendering additionally needs LibreOffice on PATH (or the macOS app bundle):
brew install --cask libreoffice # macOS
Without it, every other format still works and a document card says exactly what is missing.
Two channels, in priority order.
A signed HTTP route (/crosery/dsh-viewer/asset) streams from the host. It is the only channel that can carry video, audio, PDF or HTML, and the only one that supports range requests — which is what makes a <video> seekable at all.
The durable attachment store is the fallback. Images only, but it is irreplaceable in two cases: a filesystem backend that exposes no local path (a remote workspace), and rendering a shipped read_image result, which has an attachment and no URL.
They are not redundant: a raster on a vision route still goes through the attachment store, because that is the only way it also reaches the model.
The route never accepts a path from the browser. At tool time the host signs the resolved absolute path with a per-harness HMAC key; path and MAC travel together in the URL, and the route honours a path only after the MAC verifies.
$DSH_HOME/.dsh-viewer-asset-key, mode 0600, generated on first use. A self-contained signature rather than an in-process token table, because cards must survive a restart — a card replayed from a months-old session log holds only the URL it was minted with.404. "Not signed by us" and "signed but the file is gone" return the same status, so a probe cannot learn whether a file exists.text/html and image/svg+xml ship with a Content-Security-Policy (sandbox and default-src 'none' respectively): navigating directly to such an asset would otherwise run its script on the app's origin. Everything carries X-Content-Type-Options: nosniff.createReadStream, not ctx.fs.readBytes — the latter materializes the whole file in memory, and a two-hour video is precisely the case this plugin exists for.Settings namespace crosery-viewer. Every default is the behaviour the plugin exists to provide; each flag gives one piece back.
| Field | Default | Turning it off |
|---|---|---|
tool | true | display_file is not registered at all |
redirectRead | true | read may decode a raster into replacement characters again |
feedModel | true | images are shown only, never added to model context |
supersedeReadImage | true | the shipped read_image becomes visible to the model again |
Edit $DSH_HOME/settings.yaml — hot-reloaded, no restart.
read on binary media is not an error. The shipped filesystem provider samples the file head and throws FS_NOT_TEXT on a NUL byte, so read aimed at a PNG paints a red failure row with or without this plugin — for a file that exists and is one call away from being on screen. Neither obvious correction removes it: a tools/pre-execute denial materializes its own error, and a tools/post-execute decision cannot replace the value of a failed result. So the correction runs in the tools/execute around-dispatch waterfall and never calls next() — no filesystem I/O happens at all, and the authored success is re-projected through the owning tool's own render and presentationMeta, which replaces the persisted read metadata too. The result is an ordinary successful read whose one line points at display_file.
One image entry point. read_image and display_file overlap on exactly one thing — putting a raster into model context — and a model offered both uses both. Measured on a real 2.2 MB PNG: the same image entered context twice in one turn. display_file is a strict superset, so read_image is hidden per agent via tools.restrict() on agent/created, retried on tools/change because the shipped tool registers behind an async service injection.
Nested run_code calls get no presentationMeta. The registry projects it only for top-level calls, so a display_file invoked from inside run_code would render as a bare header. The model-facing envelope therefore carries <media>, <bytes> and <asset> elements, and the card rebuilds from its own envelope when metadata is absent — validated through the same narrowing the replay path uses.
A PDF iframe must not be sandboxed. sandbox without allow-same-origin gives an opaque origin, and Chrome's PDF viewer refuses to run there, showing "This page has been blocked by Chrome". Local HTML is the opposite case and keeps the sandbox.
npm install
npm run typecheck # host and client are separate programs — see below
npm run build # two .d.ts trees + two bundles; the result is committed
npm run check # repo invariants: README counts, locale keys, peer range, install path
npm run check:dist # the committed lib/ is byte-identical to a fresh build
npm test # 71 cases
Two tsconfigs are required, not fastidiousness: both halves augment the same @deepseek-ai/cordis Context, and sessions is SessionStore on the host but ISessions in the browser. One program seeing both augmentations silently resolves the wrong one, because skipLibCheck hides the conflict.
tests/asset-route.test.ts mounts the handler on a real node:http server and issues real requests — range correctness cannot be proven by unit-testing the parser. tests/convert.test.ts builds a DOCX with LibreOffice, converts it back, and asserts the artifact starts with %PDF-.
Built and tested against the newest coherent harness train, next = 0.1.1-rc.2, and the peer ranges carry an explicit prerelease branch so every 0.1.x prerelease resolves — a naive broad range silently excludes them all.
0.1.2-alpha.2 is deliberately not claimed. That train is published incomplete (@deepseek-ai/dsh-client-runtime has no build on it, so it cannot install as a set) and it drops installSettingsSection and settingsNamespace from @deepseek-ai/dsh-settings with no replacement in the published types. Claiming support would hand users an ERESOLVE or a runtime crash. The peer range therefore stops below 0.1.2, and a scheduled CI job (.github/workflows/harness-compat.yml) re-tests against the next and alpha tags weekly and opens an issue the moment upstream moves — so the range widens on evidence, not optimism.
ffprobe. The player shows them.processPath, non-image media have no channel and the card says so..mov) falls back to the <video> fallback text.MIT © Crosery
