DeepSeek-Harness Widgets
A beautiful, extensible right-side widget system for DeepSeek Harness.
Multi-column grids · 2×4 tiles · continuous magnification · built-in component marketplace

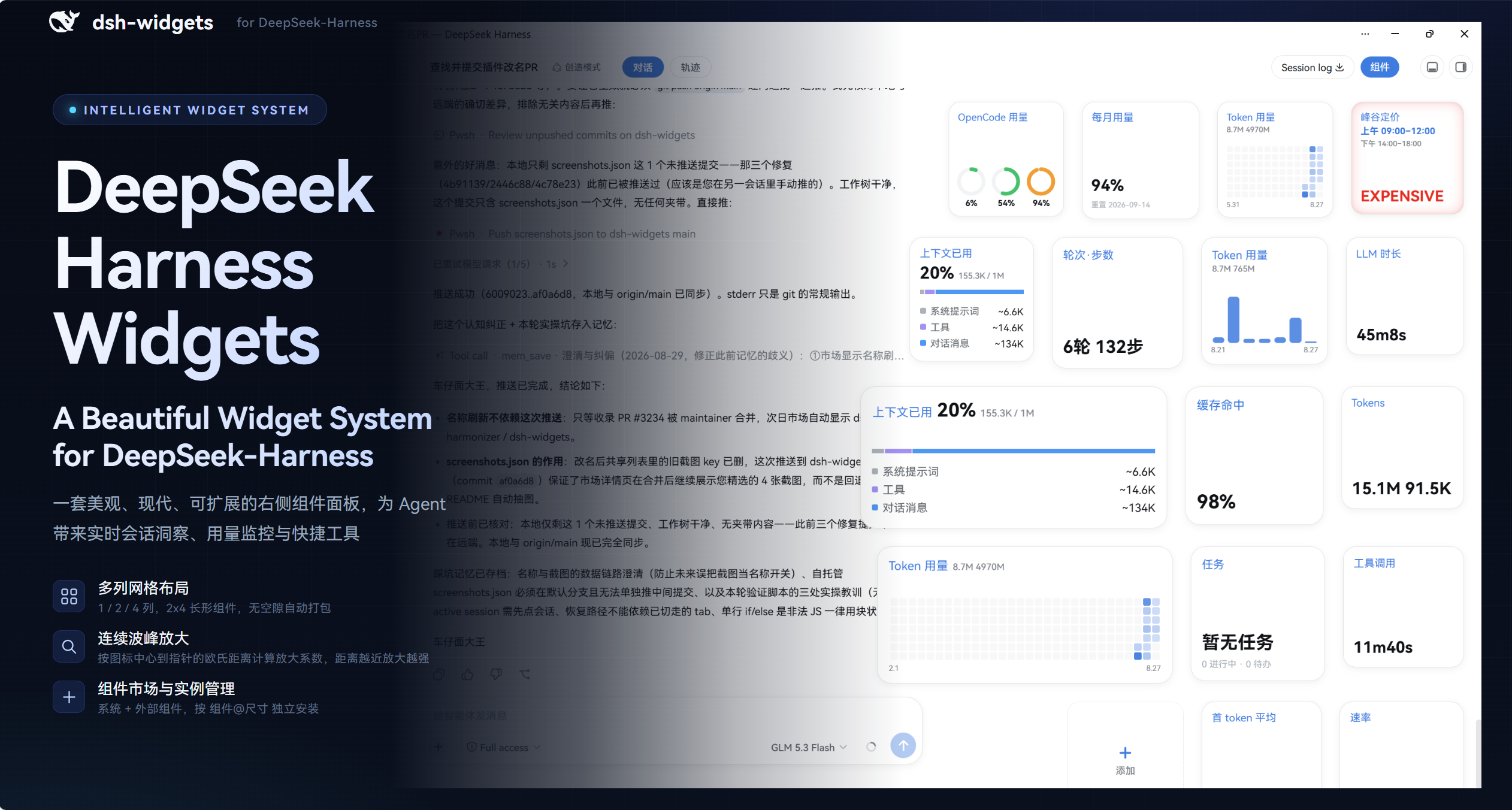

DeepSeek-Harness Widgets preview
DeepSeek-Harness Widgets is a persistent DSH bundle plugin built on the Cordis composition model. It provides a customizable multi-column widget rail on the right side of the conversation page — real-time session insights, usage monitoring, and quick actions — with an extensible declarative registry.
Website / Showcase
A self-contained showcase site lives in website/ and is live at https://physicolor.github.io/dsh-widgets/ — what dsh-widgets is, why it exists, all 33 real widgets, the DSH Widget Design Grammar (the real unit/spacing/magnification formulas from src/client/index.ts, with an interactive rail running the actual magnification + right-anchored reflow), Widget Anatomy (a real card at ×2 with every padding, gap and inset measured from the DOM), the DSH Visual Audit (13 declared rules scored over all 33 widgets from live getBoundingClientRect measurements — rule-based, not a model), the widget-unit architecture, the production workflow, and a requirement-form → widget-spec generator. Plain HTML/CSS/JS, no build step, all paths relative for the project Pages base path. node website/verify.mjs self-verifies (static + SEO + Edge-headless browser checks, 80 checks); the widget table, the static gallery markup and the JSON-LD ItemList are generated from the manifests by node website/gen-site.mjs (--check fails on drift); node website/gen-og.mjs regenerates the social card. Deploy: see website/README.md.
Features
Multi-Column Grid
| Item | Detail |
|---|
| Max columns | 1 / 2 / 3 / 4 (dropdown in settings, 2 by default). An UPPER BOUND: the deck steps down automatically when space runs short and never exceeds it when space is plentiful |
| Base card size | The MINIMUM card side (150px by default). The rail is a fluid grid: within a column count the cards share the available width evenly, in 10px tiers, up to the size at which five card rows still fit the rail with the last row's bottom gap equal to the right gap (150 → 160 at a 1578×1000 window) — anything beyond that goes back to the transcript |
| 2×4 tiles | Twice the width of a 2×2 plus a gap, same height; the same widget can be installed in both sizes at once |
| Gap-free packing | Widgets pack by best-fit; gaps left by 2×4 tiles are backfilled by later 2×2s, so drag-reorder never leaves holes. In a 3-column deck a 2×4 that would strand itself moves one slot earlier and the 2×2 it displaces moves one slot later (rounding), so a wide tile is never left hanging |
| Live width response | While the conversation width is dragged the available width is recomputed every frame and the cards change TIER the moment a boundary is crossed (the transcript inset is untweened for the drag's duration, so it tracks the conversation exactly); the column count steps at its thresholds. An all-2×4 deck skips the 3-column DEGRADATION step (2 ⇄ 4); an explicit 3-column preference is always honoured |
| Transition feel | Both a size-tier change and a column change glide with a slight REBOUND (a ~4% overshoot spring) into their new size/cell, plus a small settle wave staggered in packing order (about 1.6% amplitude, 30ms per card) — never one whole-block pulse. The rail's own width and the transcript inset run on the SAME spring, so container, cards and conversation move together instead of the box jumping ahead of the cards |
| Magnification | Works in multi-column grids too; magnified rows/columns yield by planar distance with constant spacing |
| Wheel = row detents | The wheel steps whole ROWS (every offset is a multiple of the row pitch = card side + gap), so the top row is never cut in half and one notch pulls the next row up to where the first one was; overflow at the bottom is expected (the default viewport shows five whole rows plus a sliver of the sixth). Scrolling always uses the browser's own smooth scrolling and behaves identically whether the pointer is on a card, in a gap, or on empty rail — never a per-notch hard jump |
Continuous Magnification
macOS-Dock-style hover magnification with two modes (toggle in Settings → Components → Realtime follow):
- Stepless (continuous follow): truly stepless — every card's scale is driven by its own continuous Euclidean distance to the pointer, so the peak glides smoothly between cards on any pointer movement. It snaps to its steady right-anchored geometry every frame (
transition: none), so a card's right edge stays flush with the rail even mid-motion — no width/right desync while the pointer moves.
- Discrete (default): reuses the same continuous geometry but snaps the pointer onto a quantized grid (row/column centres + the midpoints between adjacent ones: 2·rows−1 Y points, 2·cols−1 X points), with a 0.2s tween gliding the peak between grid points.
In both modes the magnified deck is painted by a fixed overlay outside the rail's scroll-clip box, so leftward growth escapes clipping while the resting rail width (and the conversation column distance) never changes. Scaling preserves the square card shape and constant spacing; magnification is adjustable in settings (1.0–1.4).
Entering and leaving a card is one continuous move, not two decks cross-fading: at rest the overlay is pixel-identical to the real cards, so the hand-over happens when both agree exactly (invisible), and the following 0.2s tweens every card's top/right/width/height together with its scale into the wave — and back out on leave, returning to the resting geometry before the real deck takes over. The hovered card keeps its brand-blue outline inside the magnified layer.
The overlay's raster is prewarmed while the rail is idle (the two decks are pixel-identical at rest, so the prewarm frames are invisible), which is what keeps the enter from repainting 15 cards on its first visible frame — measured before: a 50–68ms paint-only first long frame with no script time; after the prewarm plus a compositing hint on the layer: zero long frames across repeated runs.
The rail and the magnify overlay are driven by ONE shared pointer surface (they are siblings by necessity — the overlay must escape the rail's scroll-clip box), and that surface is geometrically continuous: while the wave is live the layer itself is hit-capable and its hit box is widened leftwards by the maximum amount the cards overhang the rail (with the left padding compensated so the cards do not move). Cards, the gaps between them, and the strip a magnified card opens past the rail's left edge therefore all stay on the surface — otherwise a gap resolves to the conversation behind, which showed up as "hovering exactly in the gap cancels the wave" and "at the edge it keeps zooming in and out". A genuine leave still ends the wave (with a 6px tolerance so a pixel of jitter cannot flip it), and the wheel over a magnified card still scrolls the rail (intercepted as row-detent scrolling and stopped from reaching the conversation behind).
Loading skeletons
While an external source (OpenCode usage / Command Code / system monitor) has not answered, a card no longer shows an empty or zeroed body: it paints placeholder pills in the real card's rhythm — the title stays the widget's real name, the figure and body rows become rounded fills with a 1.5s sweep (static under prefers-reduced-motion). When the data lands it replaces the pills in place, with no size or position jump.
Built-in Widgets
| Widget | Detail |
|---|
| Turns · Steps | session turn & step counts |
| LLM / Tool time | cumulative reasoning & call time |
| First-token latency | average TTFT |
| Rate | decode throughput (tok/s) |
| Cache hits | input cache-hit ratio |
| Tokens | input / output token counts |
| Context waterline | system/tool/message segment bars + breakdown; 2×2 and 2×4 supported |
| System monitor | local hardware family: CPU/GPU utilization numbers, memory, VRAM, GPU temperature — 2×2 cards + 2×4 rings dashboard |
| One-click compact | context usage % + round corner button (double-click to compact) |
| Tasks | in-progress / done / todo counts |
| Usage heatmap | GitHub-style calendar heatmap, self-tracked daily usage; 2×2 = ~3-month calendar, 2×4 = half-year all-points view |
| Last-7-days bars | vertical bars for the last 7 days; bar area height matches the calendar grid |
| Trajectory | the official 轨迹 rail as a card: one colored bar per input / model / tool beat, rolling right through the newest 30 beats as the model keeps calling tools. Lane width is a per-card switch in the component config: By duration (default — each beat's width is proportional to how long it took, and an instantaneous input degenerates to a minimum-width tick) or Equal width (the fixed-slot window, whose slot freezes at 30 beats and stops re-scaling as the window rolls) |
| Quote of the day | random motivational quote; text/alignment/wrapping customizable |
Quota Manager (Coding Plan group, 2×2)
Title on the left with the projected month-end usage percent in the top-right corner, the billing period on the next line (账期 10-10), and two figures at the bottom: today's usage (measured tokens) and today's budget (the remaining balance split evenly over the days left).
- Projection:
used% + recent pace × days left, where the recent pace is the last 3 day-equivalents (the previous two whole days plus today prorated by how much of it has elapsed; today only counts after 6 h). The projection and the budget are therefore mathematically consistent: projected > 100% ⇔ recent pace > today's budget — the card can never claim "today is under budget" and "the month is over 100%" at once.
- Past 100%: the figure itself turns red and breathes (1.6 s), instead of a red glow around the card.
- Credit → token conversion: the balance (credits) is converted at the period's own realised "local tokens ÷ credits consumed" rate, so the figures share one caliber; the provider's own token counter is not mixed in (it measures the same period ~1.7× higher).
- Never invented: a missing percentage/allowance, a finished period or less than 6 h elapsed renders 「数据不足」; only when the rate side is unavailable does today's budget degrade to
—.
Component Marketplace
- Browse all widgets (system + external), search, size-switch preview, install per
widget@size;
- The installed list supports drag-reorder, config editing, and one-click
2×2 ↔ 2×4 (auto-dedup — one instance per widget/size);
- The widget-config tab supports per-card customization (quote of the day, heatmap window alignment, etc.).
OpenCode Go Usage
Rolling / weekly / monthly usage windows + percentage + reset time. The host half registers a same-origin route proxying opencode.ai; the browser makes no cross-origin requests, and keys go through DSH credentials. Two presentations: usage-bars (three-window bars) and usage-rings (three-window donut rings — percent in each ring centre, exact value on hover, same urgency colouring).
Command Code Account Widgets
Eight 2×2 widgets reading the Command Code account through the host route /api/commandcode-usage — credentials come from credentials.resolve('COMMANDCODE_API_KEY') (process env → $DSH_HOME/.credentials.yaml → .env), so the key never reaches the browser and nothing is typed into a widget or a settings field:
| Widget | Detail |
|---|
| Account | username / e-mail / organization |
| Usage | request count, success rate, tokens, spend |
| Credits | credit balance (monthly / free / purchased) + the 5h and weekly usage bars |
| Windows | 5h / weekly / monthly usage rings |
| Subscription | plan id, status, period end, cancel-at-end |
| 5h window · Weekly window · Monthly window | single-window number cards (one decimal + the reset date) |
All four upstream endpoints are fetched independently with an 8 s timeout, so one failing slice renders — instead of taking the card down; missing values are never invented. The monthly window is derived by conservation (used = monthly credits consumed, total = used + remaining) because the provider publishes no monthly window object — the derivation is documented in the roadmap as an upstream dependency.
Peak Pricing (market widget)
A 2×2-only peak-pricing card showing whether the current moment is inside a DeepSeek peak-pricing window. Peak hours (Beijing time, UTC+8): Mon–Fri 09:00–12:00 and 14:00–18:00 — everything else, including weekends, is off-peak. Off-peak shows CHEAP; during a peak window it shows EXPENSIVE, with the figure itself turning red and breathing (1.6 s) — a text-level escalation, the card frame stays clean — while the corresponding window row under the title lights up brand-blue and scales up slightly. The schedule is hard-coded for now; a custom-schedule setting is on the roadmap.
Architecture
- Widget units + build-time discovery (ARCH-001): every widget is an independent unit under
src/widgets/<id>/ — manifest.json (machine-readable contract: id / group / sizes / defaultInstalled / per-widget locale) + index.ts (the defineWidget descriptor: render + name/desc thunks + configSchema + example). The registry is generated, never hand-maintained: scripts/gen-registry.mjs scans the unit dirs and emits src/client/generated.registry.ts (WIDGETS / ALL_INSTANCES / STATS_WIDGET_IDS / DEFAULT_INSTALLED / merged WIDGET_LOCALES). Adding a widget = adding one unit dir; pnpm build regenerates and pnpm check:registry fails loudly when the registry is stale. The widget template lives in src/widgets-template/ — outside the scan root, so it can never be discovered or registered;
- Shared layer (stable core):
src/client/lib/ — contract.ts (the Widget contract + resolvers), format.ts (pure formatters / heatmap grid builders), usage-view.ts (OpenCode usage family renders), heatmap-accounting.ts (token heatmap self-accounting provider). Widget units import these; widget-specific logic stays in the unit;
- Per-widget i18n: widget strings live in each unit's
manifest.json (family-shared strings once in src/widgets/_shared/locales.json); the shell dictionary (src/client/i18n.ts) owns only the shell UI. The generated registry merges everything and the shell registers it with the official locale service at apply() time;
- Data collector: mounted on the
conversation.composer.dock slot, which renders only when an active session exists — a natural "session alive" signal;
- Host half:
webServer + credentials services; registers the /api/opencode-usage / /api/opencode-usage-multi same-origin proxy routes and the /api/widgets-state store (widget-rail configuration persisted to — the authoritative copy that survives browser origin switches, private mode and site-data clearing);
Installation
# via npm (plugin market)
dsh plugin --profile web add dsh-widgets
# local development (link)
dsh plugin --profile web add link:D:/dsh-home/plugins/dsh-widgets
After installing, hard-refresh the browser (Ctrl+Shift+R) and click the "Components" (widgets) capsule in the session header to expand the rail. The OpenCode Go widget needs OPENCODE_GO_API_KEY configured in the Models settings.
Development
pnpm install
pnpm run build # gen-registry (discovery) + tsdown builds lib/
pnpm run check # registry up-to-date guard + tsc --noEmit
pnpm check:registry # discovery guard only
node scripts/validate-widget-unit.mjs [dir] # widget-unit contract validator (Worker self-check / review)
Note: tsc --noEmit still reports pre-existing strict-mode errors on UNTOUCHED code — the peer slot types (@deepseek-ai/dsh-client-ui-slots) only know the root slot name while the runtime accepts arbitrary slot ids (live plugin works; the v1.3.0 refactor went from 24 to 18 such errors, all outside the changed files), and the host half lacks @types/node. The project gate is pnpm build + pnpm check:registry (both green) plus the live-bundle discovery probe (docs/verify-discovery.cjs).
peerDependencies: @deepseek-ai/cordis, @deepseek-ai/dsh-client-ui-slots (both provided by the DSH web profile; @deepseek-ai/dsh-client-runtime was retired in DSH 0.1.5);cordis.patch.yml inserts one widgets row; the host half and browser half are loaded by the loader and client-modules respectively.
Compatibility
- DeepSeek Harness
0.1.0-rc.6 and compatible later 0.1.x;
- Integrates via
conversation.input.overlay / conversation.session.header.utilities / conversation.composer.dock / settings.section;
- Coordinates explicitly with
dsh-better-sidebar's right rail: the rail reads the official right-bar column (keeping --dsh-sidebar-width as a fallback for older better-sidebar builds) and its header capsule registers at order: 5 so the two toggles cannot swap places on a bundle reload; no residue after uninstall.
Releases
Every release, entry by entry — including the measurement behind each change — lives in CHANGELOG.md (中文); each version is also published as a GitHub Release anchored to the commit that shipped it. Raw evidence (CDP probes, screenshots, JSON receipts, per-incident fix records) lives under docs/. This README keeps only the current release at a glance.
Latest — v1.6.1
The wheel scrolls in whole rows, and stops when the components end. One notch moves the deck exactly one row (2 + row · pitch, measured 184px at the default tier) on a 240ms tween of its own, with a row guard that snaps any off-grid rest position back onto the grid; LINE/PAGE-mode wheels are discrete (one event = one row) instead of doing nothing or jumping nine. The scrollable content is derived from the geometry so every row can top out — including the last one, which the previous range clamped — and a threshold (lastRow) stops the deck once its deepest card can no longer reach the viewport: at 1578×1000 with 8 rows the deck rests at the 7th detent (1290px) and further notches change nothing.
The magnification wave now ends every time. "On the widgets" means on a tile: each card is hit-tested with a 7px halo instead of testing the rail's mostly-empty 372×936 box, and a window-level pointer guard — which had been cancelling its own release timer on every re-render — now mounts once and reads its state from refs. Verified across six exit paths with document.elementFromPoint (scripts/verify-rail-interaction.cjs).
Shipped with the release: the trajectory widget (官方「轨迹」三色泳道的卡片版) that had been sitting in the tree since the previous version, plus the earlier context-water slot fix.
Fixed. The wheel effect listed a rebuilt-on-every-render ref in its dependencies, so its cleanup cancelled the tween mid-flight (rows came to rest a third of the way up, or would not move at all); the rail's scroll range could never reach the last rows; the overlay layer's inflated padding box kept the wave engaged over the transcript; the row guard and the wheel disagreed about where a row sits by 2px.
Known cost, documented in the changelog: with the rail open at ≤1600px the transcript scroller drops below the product's 900px container query, so DSH hides its own turn navigator.
Roadmap
The widget system is now built for scale: each widget is an independent, contract-driven unit under src/widgets/ with build-time discovery — a new widget is a new unit dir, no shared file edits (guide: src/widgets-template/README.md).
- Heatmap token accounting follow-up: the card's total already equals dsh-usage-center's (the host route reuses its
getActivity()). Making it exact when usage-center is not installed would mean folding the same session logs inside this host — deliberately not duplicated today, to keep one caliber maintained in one place;
- Command Code monthly window, pending an upstream field: the month is currently derived by conservation (
used = monthly credits consumed, total = used + remaining) because billing/credits returns no monthly window object. If upstream later adds monthly (with used / cap / resetAt) to windowLimits, monthlyWindow() should read it directly and keep the derivation only as a fallback;
- Command Code multi-key / organization support: only the primary
COMMANDCODE_API_KEY credential is read today; an org dimension or multiple accounts could reuse the opencode-usage-multi pool pattern in the host (COMMANDCODE_POOL_2..N);
- Agent-produced widgets: the machine-readable contract (
manifest.json + defineWidget descriptor + template + shared API) is exactly what a worker agent needs to create a widget end-to-end; the parallel-creation test in v1.3.0 demonstrated two agents adding widgets concurrently with zero file conflicts;
- More hardware metrics: CPU temperature via an optional LibreHardwareMonitor bridge (external dependency, opt-in — deliberately not bundled), AMD/Intel GPU support beyond NVIDIA, per-interface network traffic;
- Heatmap range/period controls: let the 2×4 heatmap and bars pick custom ranges (weekly/monthly/etc.) beyond the current half-year / 7-day defaults;
- Multi-platform usage widgets: Z.ai, DeepSeek balance, etc., reusing the host same-origin proxy + credentials pattern;
- Custom peak-pricing schedules: expose window customization for the peak-pricing widget (currently hard-coded Beijing weekdays 09:00–12:00 / 14:00–18:00) — custom start/end times, weekday sets, and timezone;
- Utility widgets: one-click compact (needs DSH official compaction) and more;
- External integrations: Feishu / WeChat push & interaction, keys strictly via DSH credentials;
- Widget marketplace: open a third-party widget registration mechanism so community widgets can join like plugins — the unit + discovery architecture (v1.3.0) is the carrier; a future
widgets-market bundle can drop units into src/widgets/ the same way;
License
MIT
