dsh-vision-router
Eyes for text-only DeepSeek Harness agents: built-in free vision chain (no key) + pixel-level vision tools (Q&A, grounding, crop, pixel diff, colors, OCR, SVG trace, cutout, screenshots). One-command install, no Python, image turns work like ordinary tool
The plugin will be installed here. Keep web if you are unsure.
npx -y @deepseek-ai/dsh plugin --profile web add dsh-vision-router@2.2.0
Vision Router is published as dsh-vision-router and currently resolves to version 2.2.0. The Hub verifies its manifest and preserves the exact installation source for reproducible installs.
DSH Vision Router — eyes for text-only DeepSeek Harness agents
Turn vision on when you need it — eyes for text-only agents on DeepSeek Harness. Free out of the box, no key, no Python, one command.
DeepSeek keeps thinking; the built-in free vision chain and fourteen deep tools do the seeing. When an image matters, enable the composer’s “👁 Vision” control and use image turns like ordinary tool-calling turns — grounded, measurable, repeatable.
Ecosystem: DSHPlugin.app · Awesome Omni DSH Plugins · dshpluginhub.ai · dsh.plus · dshplugins.ai · dsh-market
English · 中文
💬 QQ community group: 1105463028
[!WARNING] 📌 Announcement (v2.2.0)
v2.2.0: Lands Vision Quality Round 2 with adaptive local OCR, bounded degraded-evidence work, stable artifact handoff, successful-evidence convergence, and stronger DSH/session compatibility — without raising the rc.8 Host floor. What’s new →
Most DSH vision plugins bridge images to DeepSeek as text descriptions — lossy, one-shot, and blind to pixels. This plugin keeps the Host-canonical image pixels on the vision model's side and DeepSeek on the reasoning side, and makes looking at an image an ordinary tool call:
dsh.bundle.patch): dsh plugin add wires the row, the admission wrapper and the attachment limits automatically — zero manual file edits. Taking over the official DeepSeek route is an optional setting (stealth mode, off by default).vision_ground → vision_crop → vision_describe → vision_pixel_diff → fix → screenshot again. The agent keeps iterating until the work is done.One-line take: most dsh vision plugins turn images into text descriptions for DeepSeek (description bridge — lossy); this plugin hands the image turn straight to a vision model (routing bridge — pixel-level), with a built-in keyless free fallback.
[!NOTE] On DSH 0.1.2-alpha.1+, attachments remain Host-owned. Vision Router consumes the Host-persisted canonical image: clean single-frame 8-bit sRGB/sRGBA images inside the configured normalization limits can pass through byte-identically, while images that need orientation, color-space, metadata, animation, or size normalization may be re-encoded. Pixel tools therefore promise the Host-canonical raster, not preservation of the uploader's original encoded bytes.
| Manual model switching | MCP vision bridge | dsh-vision-router | |
|---|---|---|---|
| Image pixels | ✅ available (when switched) | ❌ text description only | ✅ Host-canonical raster, on the image turn |
| Automatic | ❌ | ✅ | ✅ |
| Daily model untouched | ❌ (whole session swapped) | ✅ | ✅ |
| Provider failure recovery | ❌ | ❌ | ✅ fallback chains |
| Reusable structured queries | — | partial | ✅ JSON mode + caching |
| Free out-of-the-box | ❌ | ❌ | ✅ built-in keyless endpoint |
| Fits dsh composition | — | external server | ✅ one plugin row |
Difference from existing dsh community projects (all excellent, each with its own focus; descriptions reflect their READMEs as of 2026-08):
| Project | Approach | What this plugin adds |
|---|---|---|
| dsh-vision-sidecar | Pre-describes images with an external VLM; the description joins the session as a message to DeepSeek; LLM7.io anonymous endpoint by default (OVHcloud listed as a no-key alternative) | Description bridge; this plugin adds image routing, with vision_describe covering descriptions on demand |
| dsh-vision-proxy | Wraps a provider route and transcribes images into text in the request stream | Transcription bridge; this plugin wraps no provider — it rewrites routing through agent/request waterfalls |
| dsh-vision-provider | Registers DeepSeek + Vision combined routes: images are described by the chosen vision model before reaching DeepSeek | Two-model bridge idea; this plugin adds automatic routing, fallback chains and tools on top |
| modlens | The first dsh vision plugin; reuses local Claude Code/Codex/OpenCode/Pi logins as vision engines | Engine-reuse idea; this plugin ships its own provider chain and depends on no other local CLI |
| dsh-vision-toolkit | Ten intent-aware visual tools (Q&A/OCR/pixel verification/UI restoration), called explicitly on demand | Broader tool set; this plugin adds whole-turn auto-routing and a keyless free fallback |
| dsh-tool-vision | An inspect_image tool plus an agent/pre-step waterfall bridge (pasted images become tool hints before entering the log) | Similar waterfall bridge; this plugin adds turn routing, fallback chains, caching and the free endpoint |
The deep-vision tool layer and UI-restoration workflow in this project were informed by Anionex/agent-vision-toolkit and its native DSH implementation Anionex/dsh-vision-toolkit. In particular, this project drew on their intent-driven tool selection, progressive tool exposure, pixel-diff verification loop, and parts of the visual-tool decomposition and naming, including long-screenshot OCR, foreground extraction, and HTML screenshot tooling.
All code in dsh-vision-router is independently implemented. On top of those referenced design ideas, this project independently developed its turn-level/tools-first vision routing, DSH admission/wrapper integration, multi-backend provider and failure fallback chains, built-in free vision chain, attachment/image-memory handling, caching, and related runtime resilience mechanisms.
We appreciate Anionex's prior work and the broader DSH community. Clear attribution and independent iteration can coexist; both help keep the DSH ecosystem open, collaborative, and healthy.
This project borrows ideas from all of the above — especially the keyless free-endpoint exploration (LLM7.io and OVHcloud anonymous tiers) by dsh-vision-sidecar. Thanks to the authors of dsh-vision-proxy, dsh-vision-provider, modlens, dsh-vision-toolkit, and dsh-tool-vision.
For normal npm/npx installs, installation is a single command:
npx @deepseek-ai/dsh plugin --profile web add dsh-vision-router
[!WARNING] If this profile already loads community plugins manually through
cordis.patch.yml, do not mix that legacy setup withdsh plugin add/dsh plugin list: current DSH CLI behavior can also append bundle-patch dependencies todsh.profile.bundles, causing those plugins to register twice. Migrate the existing manual plugin rows to bundle-managed loading first, or keep using the manual installation path. See deepseek-harness discussion #2889.
[!NOTE] Third-party
dsh-web-plugin-manager/dshpmv0.4.2+ is also compatible: its quality gate now correctly allows@deepseek-ai/schemasteryas a runtime dependency. The official DSH CLI above remains the recommended install path.
If you run DeepSeek Harness from a source checkout with pnpm, use the workspace script instead — dsh is not necessarily on your shell PATH:
cd deepseek-harness
pnpm dsh plugin --profile web add dsh-vision-router
If you already installed the DSH CLI globally and dsh is on PATH, the shorter dsh ... form works too. After installation, start or reload DSH Web as you normally do.
[!NOTE] If you install the plugin into a Web process that was already running long-term, let that DSH Web process reload once so the plugin bundle itself is discovered. After the plugin is loaded, adding/removing models or changing wrapper scope hot-updates without further DSH restarts.
The stock model selector in the lower-right corner still chooses your brain/conversation model — DeepSeek, Qwen, or any other ordinary route. Vision Router’s generated “+ Auto Vision” wrappers remain real Host routes for image admission, but are hidden from the stock picker and /model when ownership can be established safely.
When you need image input, explicitly click “👁 Vision” beside the composer:
👁 Vision: the ordinary model is active and Vision is off;👁 Vision ✓: Vision Router has switched the session to that model’s internal vision wrapper;[!IMPORTANT] Pasting or uploading an image does not enable Vision automatically. Before sending an image, make sure the control shows
👁 Vision ✓.The real wrapper route is still present underneath to satisfy DSH image admission. Hiding is presentation-only and fails open: if the browser cannot confidently prove a route belongs to Vision Router, that route remains visible rather than risking hiding a third-party provider.
With “👁 Vision” enabled, paste or upload an image normally. By default the complete vision tool schema is stable from session start, so the agent can immediately use vision_describe, vision_ground, vision_crop, and the rest across multiple steps when needed.
If the session already contains images, DSH may reject switching from a vision wrapper back to a text-only route. Vision Router does not bypass that Host rule: it shows a transient error using the same interaction style as the stock model selector, keeps the real current model unchanged, and leaves 👁 Vision ✓ reflecting the actual state so the session stays usable.
The built-in anonymous OVH vision fallback is already configured, so normal image use needs no signup or API key. The lower-right chat picker selects only the brain/conversation model; vision backends do not belong there. Advanced options live under Settings → Vision Router: each vision-backend row may select any callable generative user model already configured under Settings → Models. DSH image-capability metadata is advisory only: undeclared or text-only-labelled models remain selectable and show a warning. At runtime Vision Router always tries the provider's registered DSH adapter first — including WebSocket, RPC and private transports — and falls through on a real failure. The direct compatibility bridge is used only when an http(s) OpenAI Chat Completions endpoint is positively identified. Leaving every user row empty is valid; the OVH chain remains the final fallback. Vision HTTP is an internal transport route, not a model group users should select.

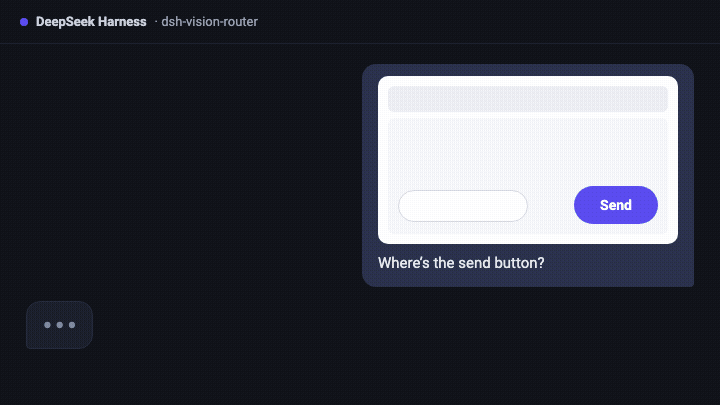

Left: an image turn — the user sends a picture, the agent calls vision_describe through the free chain and answers. Right: the finished structured answer.

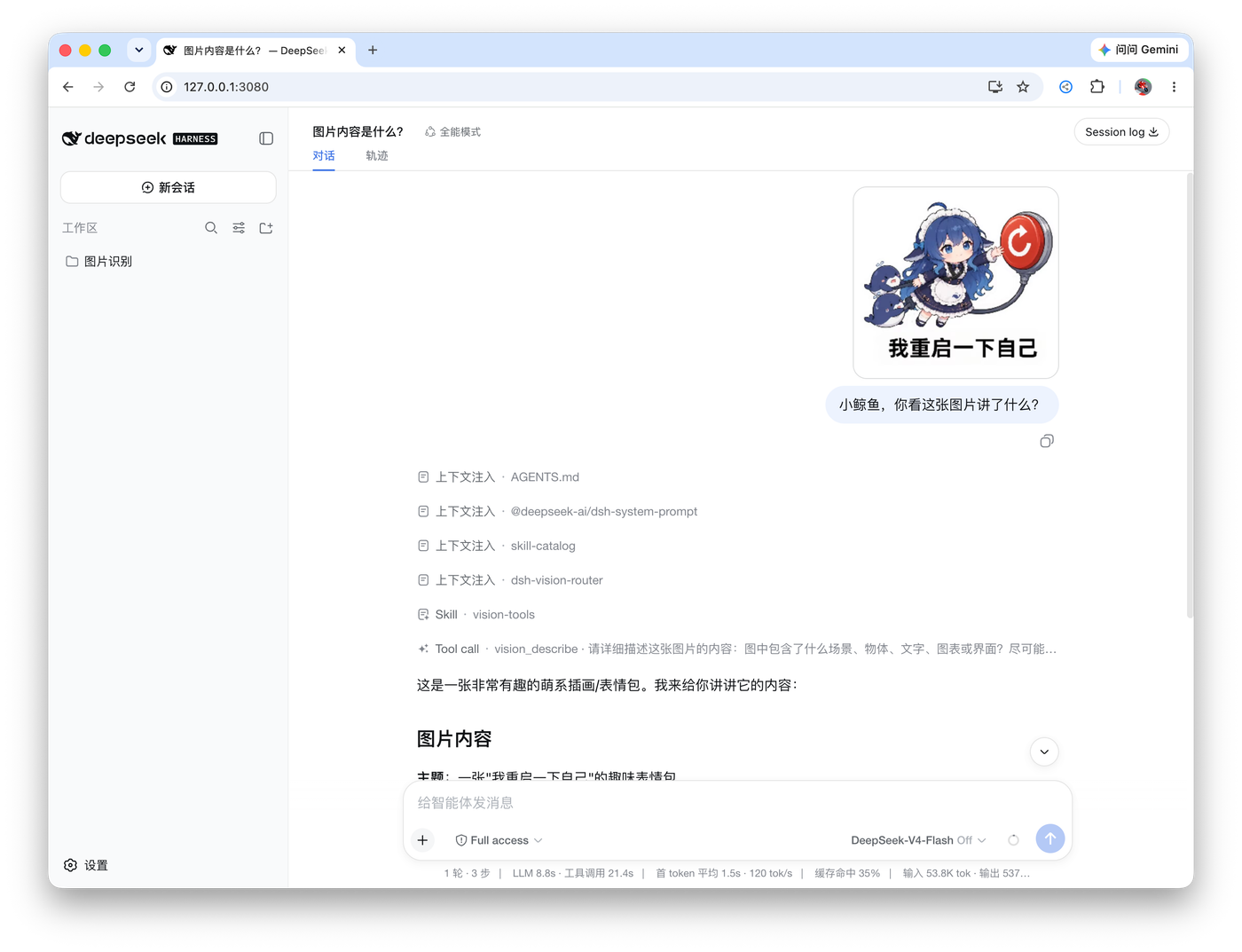

A conversation turn in which the agent looks at an uploaded image through vision_describe. The agent's structured answer describing the image content.
The built-in OVH fallback is anonymous by design, and OVH caps anonymous use at 2 requests/minute per IP per model. If that feels tight, every channel below offers free vision models with much higher quotas — all of them are free to register, and none charges for the free tier. Free policies rotate often; treat this table as an August 2026 snapshot and double-check each provider's console before relying on it.
| Channel | Free vision model(s) | Free quota | CN direct? | Where to get the key |
|---|---|---|---|---|
| OVHcloud AI Endpoints (access key) | Qwen2.5-VL-72B-Instruct — the same endpoint the built-in fallback uses | 400 req/min per project per model (vs 2 anonymous) | ✅ | OVH account → Public Cloud project (attach a payment method; free models are not charged) → AI Endpoints access key |
| Zhipu (bigmodel.cn) | glm-4.6v-flash · glm-4.1v-thinking-flash · glm-4v-flash — three permanently free models; chaining them triples capacity | uncapped tokens | ✅ | open.bigmodel.cn → API keys |
| DashScope (Aliyun) | qwen3-vl-flash (limited-time free) and the Qwen-VL series | new users: 1M tokens per model series / 90 days | ✅ | bailian.console.aliyun.com |
| Intern AI (Shanghai AI Lab) | internvl-latest · internvl3.5-latest | 30 RPM, 90M tokens/month | ✅ | chat.intern-ai.org.cn |
| Groq | meta-llama/llama-4-scout-17b-16e-instruct (native multimodal, up to 5 images) | 30 RPM / 14,400 req/day, no card | ❌ proxy | console.groq.com |
| Google AI Studio | gemini-2.5-flash · gemini-2.5-flash-lite | 10–30 RPM / 500–1,500 req/day | ❌ proxy | aistudio.google.com |
| NVIDIA NIM | meta/llama-3.2-11b-vision-instruct · nvidia/nemotron-nano-12b-v2-vl | 40 RPM, no card | ⚠️ | build.nvidia.com |
| OpenCode Zen | mimo-v2.5-free (vision + code) | 30 RPM / 500 req/day | ⚠️ | opencode.ai/zen |
| OpenRouter | google/gemma-4-26b-a4b-it:free · google/gemma-4-31b-it:free | 50 req/day on unpaid accounts | ❌ proxy | openrouter.ai |
Any of these channels can join the vision chain as an httpProviders entry (key in the matching environment variable or ~/.dsh/.credentials.yaml), and the chain tries your entries before the anonymous fallback.
[!NOTE] Free-tier policies change without notice — Cerebras retired its free tier in July 2026 (now a one-time $5 credit), SambaNova's free tier is down to 20 requests/day, and Hugging Face's is $0.10/month. Third-party “
:freerelay” aggregators are deliberately not listed: they rotate quickly, lack SLAs, and some resell quota in ways that violate upstream terms.
vision_html_screenshot → vision_pixel_diff (ratio + worst 8×8-grid regions) → fix → repeat until the mismatch converges. UI restoration becomes measurable instead of eyeballed.progressiveTools: true remains an advanced boot-time opt-in; only then does vision_activate mount the tools on demand. See docs/progressive-tools-cache.md.Reference design and final agent rebuild, verified with vision_pixel_diff at 2.54% final difference.
Click the image to open the full-resolution original.
The agent rebuilt the UI from the reference image, then verified the final result with vision_pixel_diff: 2.54% final diff (32,939 / 1,296,000 differing pixels, threshold 16/channel).
How DSH Vision Router keeps DeepSeek as the brain and vision tools as the eyes.
The vision model is only the eyes; DeepSeek is always the brain. An image turn is never hijacked by a one-shot vision answer — the agent drives the tools itself and can keep operating on the image across as many steps as the task needs.
Default progressiveTools: false: all fourteen deep tools stay registered from plugin startup, so text and image turns can call them immediately. If you explicitly set progressiveTools: true in the profile/composition cordis.patch.yml, progressive mode is restored: only vision_activate is exposed initially, the full tool set mounts on first use, and the vision-tools skill is registered. This is a boot-time switch; restart DSH after changing it. Built on sharp / potrace / tesseract / system Chrome — no Python:
Eleven image-processing tools available in DSH Vision Router.
The diagram covers the eleven image-processing tools. vision_present (durable image delivery) and vision_bootstrap (the optional 1+x structured first pass) bring the default deep-tool set to fourteen. Enabling the privacy-gated vision_screenshot at boot adds an optional fifteenth tool.
| Tool | What it does | Artifact |
|---|---|---|
vision_bootstrap | Optional 1+x structured first visual pass; establishes task-independent evidence before at least one follow-up vision call | — |
vision_describe | Image Q&A / multi-image compare / structured-evidence JSON mode (summary + layout regions + entity inventory + verbatim transcription) | — |
vision_materialize | Copy an authorized attachment into a stable content-addressed workspace handoff file and return absolute + short workspace-relative paths for local OCR/parser fallbacks; no vision/network call | image copy |
vision_ground | Locate a target → original-pixel box x1/y1/x2/y2 | annotated PNG (optional) |
vision_detect | Numbered inventory of every element of a kind (buttons/inputs/links…) with original-pixel boxes | annotated PNG with numbered boxes |
vision_crop | Crop and zoom into a pixel box | PNG |
vision_present | Publish a generated or edited local image as a durable chat attachment so the user can see it | image attachment |
vision_pixel_diff | Per-pixel comparison: diff ratio + worst 8×8-grid regions | red heatmap PNG + JSON report |
vision_colors | Dominant colors (hex + share) | — |
vision_ocr | Text transcription: local tesseract (chi_sim+eng) first, vision model fallback | — |
vision_trace | SVG vectorization (potrace posterization; icons/logos) | SVG |
vision_extract_foreground | Cutout via border flood fill (uniform backgrounds) | transparent PNG |
vision_html_screenshot | Screenshot a local HTML file (headless system Chrome); fullPage: true captures the whole page and reports pageHeight | PNG |
vision_screenshot | Disabled by default; explicit opt-in required. Capture the Windows virtual screen, macOS main display, or Linux root display. Windows uses PowerShell CopyFromScreen, macOS uses , and Linux requires ImageMagick or ; optional tries enabled local recognition backends in order and returns the description with the path |
Formats are sniffed from magic bytes, so extensionless content-addressed attachment files work everywhere (no .png renaming needed).
Common workflows
vision_ground image="ref.png" target="the send button"
vision_detect image="page.png" target="input fields"
vision_crop image="ref.png" region="1067,841,1108,881"
vision_present path="rebuilt.png"
vision_describe paths=["ref.png","impl.png"] question="list the differences" json=true
vision_pixel_diff original="ref.png" rebuilt="screenshot.png"
vision_ocr image="screenshot.png"
vision_colors image="ref.png" top=8
vision_trace image="icon.png" steps=4
vision_extract_foreground image="logo.png"
vision_html_screenshot source="page.html" width=1200 height=720
vision_html_screenshot source="page.html" width=1200 height=720 fullPage=true
vision_long_screenshot_ocr image="chat-log.png" chunkHeight=1200 overlap=120
The vision tools try backends in order and surface an error only after all of them fail:
localOllama.enabled adds keyless, offline recognition through your local Ollama (for example qwen2.5vl);localLmStudio.enabled follows Ollama and requires the real model identifier shown in LM Studio Developer or returned by /v1/models;httpProviders, when present, run after the local backends;Qwen3.5-397B-A17B → Qwen2.5-VL-72B-Instruct → Qwen3.6-27B → Mistral-Small-3.2-24B-Instruct-2506 → Qwen3.5-9B. OVH anonymous limits are 2 requests/minute per IP per model. The five models have independent buckets, so spreading requests across them is about 10 RPM in theory, subject to OVH's actual rate limiting. No signup or API key is required. Want more headroom? See Free vision key channels — a free OVH access key lifts this same endpoint to 400 requests/minute.[!IMPORTANT] This “vision chain” is the eyes used by Vision Router: each settings row selects one user vision model, while the lower-right chat picker selects the brain/conversation model. The two are deliberately separate. Text-only DeepSeek/opencode models are filtered out of the vision-backend dropdown, and the internal
Vision HTTPtransport route is no longer exposed to users.
In the legacy
routing: truemode, the whole-turn chain walks onlyprovider + fallbacks—httpProviders(including the free fallback) do not participate there. The defaultrouting: false(tools-first) tries everything.
Failures are classified (region / tos / quota / rate-limit / context / network) and the final error carries advice; a 429 advances immediately to the next backend and applies a capped, Retry-After-aware circuit-breaker cooldown. Oversized uploads are downscaled before the call (default budget 4 MP) to keep tool calls fast.
Stealth mode is off by default (explicit opt-in since issue #34): the official deepseek-official route stays untouched. When you need images, the composer’s “👁 Vision” control switches to the internal DeepSeek wrapper, which is hidden from the stock picker and /model presentation by default.
On newer DSH Host generations, the official DeepSeek provider owns request-local attachment, file and image-access behavior. Vision Router therefore never reconstructs or resurrects deepseek-official on those Hosts. Keep llm-deepseek enabled and use the internal “DeepSeek + Auto Vision” wrapper / “👁 Vision” control for image tasks. If the official row is disabled or unavailable, the settings card reports that configuration problem instead of silently recreating a partial provider.
Legacy Host contracts that do not expose this provider-ownership capability retain the historical takeover/keep-alive behavior for compatibility: when their stock DeepSeek row is absent, Vision Router can still rebuild the legacy provider path so existing profiles and sessions keep working. This fallback is not a setup requirement for current Hosts and should not be enabled by disabling llm-deepseek on a modern installation.
Stealth mode only affects the official DeepSeek route. Custom/third-party routes such as opencode also receive internal vision wrappers by default, used through the composer toggle rather than a second user-facing model group.
autoWrapProviders is on by default. The plugin discovers the provider/model entries currently enabled under Settings → Models and registers matching internal vision wrappers. The original group is never changed. Ordinary users do not need to find or manually select these routes: when ownership is confidently established, the wrappers are hidden from the stock picker and /model, and the composer’s “👁 Vision” control switches to them as needed. DSH llm/adapters-updated events are synced live, so adding/removing models does not require a restart.
wrappedProviders is an optional manual scope control, not a required setup step. Use it only when:
The settings card uses provider + model dropdowns; an empty model means every model on that route. Add multiple rows to select multiple models. Changes apply immediately with no restart. If browser-side ownership or exact mirroring cannot be established, presentation hiding fails open so a third-party route is never hidden merely for cosmetic cleanliness.

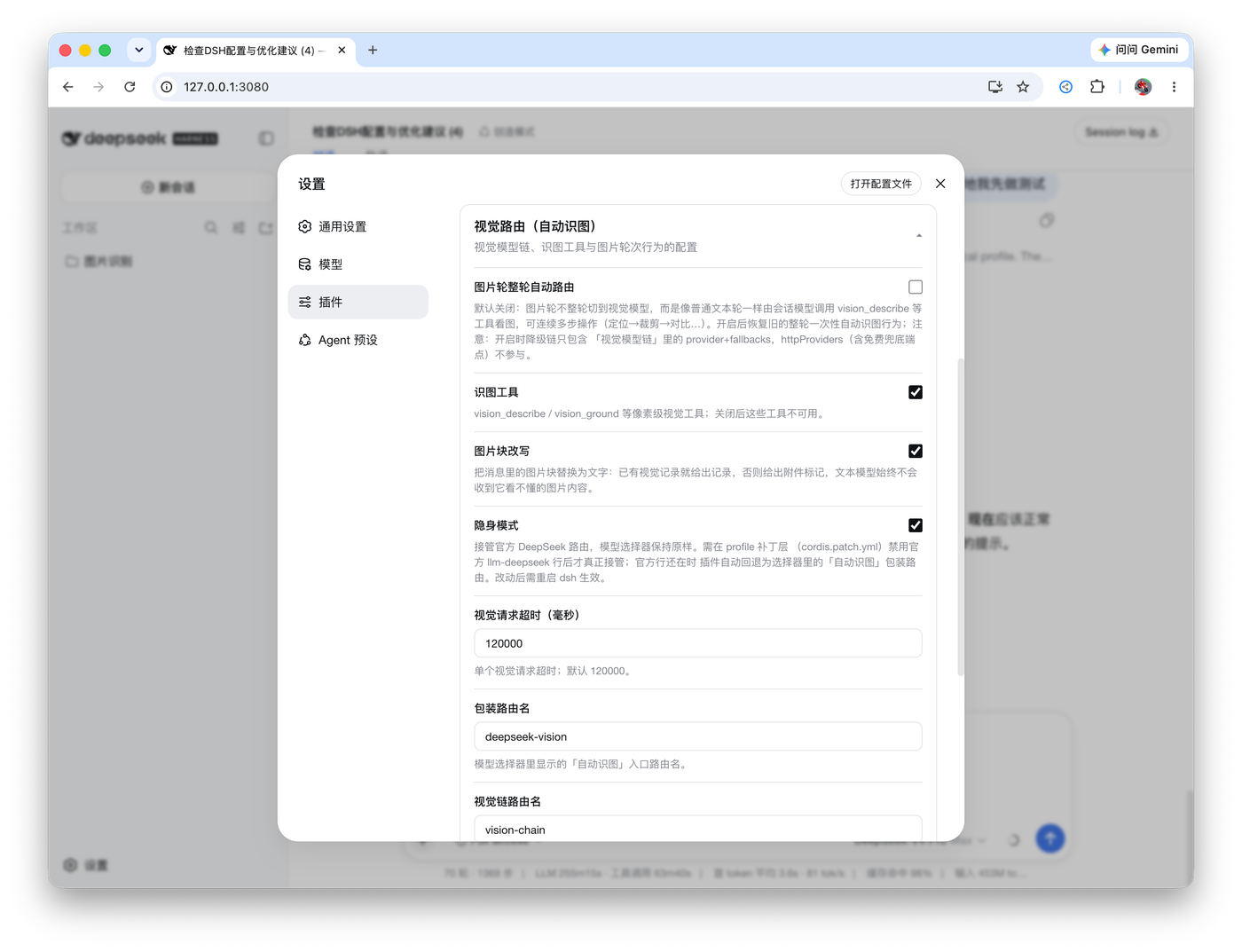

The Web profile registers a first-class Settings → Vision Router surface. Its General page keeps model choice and v2 routing authority together; Vision Strategy, Local & Device, Advanced and Diagnostics separate tool behavior, local backends, sensitive/performance controls and troubleshooting.
vision_describe and friends; the built-in free chain remains the final fallback;off, local-free, or all; this is separately authorized and never turns on merely because Auto was enabled;The Vision Router settings surface.
Everything is optional; defaults work out of the box. Prefer Settings → Vision Router; profile overrides remain available for advanced deployments:
| Field | Default | Meaning |
|---|---|---|
routingMode | ordered | ordered keeps the configured model-chain order; auto delegates prioritization to measured capability evidence. Auto is never enabled by migration |
routingPreference | balanced | Auto preference: balanced, quality, speed, or local; changes ordering only among already-authorized candidates |
backgroundBenchmarking | off | background capability profiling authority: off, local-free, or all; enabling Auto does not change it, and authorized background work runs only while Auto is active |
provider / model | vision-http / ovh/Qwen2.5-VL-72B-Instruct | shorthand vision backend route (adapter-backed provider + model that genuinely accepts images) |
fallbacks | [] | backup image models for the shorthand vision provider |
providers | built-in free vision-http pair | multi-provider vision backend chain { provider, model, fallbacks[] }, tried in order; do not put text-only models here |
httpProviders | built-in OVH entry | direct OpenAI-compatible endpoints { name, baseURL, model, apiKeyEnv, maxTokens } |
autoWrapProviders | true | discover enabled provider/models and live-sync their internal vision wrappers; confidently owned wrappers are hidden from the stock model picker while original groups stay unchanged |
wrappedProviders | [{ provider: 'deepseek-official', models: [] }] | optional manual wrapper scope { provider, models[] }, used after disabling auto-wrap or to restrict which models can enter an internal wrapper through “👁 Vision”; changes apply live, no restart |
routing | false | legacy whole-turn chain routing (one-shot answer). = tools-first flow (recommended) |
Vision Router does not own network egress by default. When proxy is empty, Router-owned vision HTTP injects no private dispatcher and the Host-owned compatibility wrapper stays transparent, so requests continue on the current DSH/Host network path. With an explicit override, Host-owned adapter traffic is intercepted only while Vision Router is actively executing that configured visual provider; unrelated concurrent Host traffic keeps the Host route.
On the DSH 0.1.5 line (rc.1+), the Host provides process-wide outbound proxy policy from HTTP_PROXY / HTTPS_PROXY / ALL_PROXY / NO_PROXY; TUN mode also works transparently below the process. DSH does not automatically read the macOS/Windows “system proxy” switch, so enabling only an app's System Proxy is not the same as proxying the CLI.
Set proxy only when you intentionally need a vision-only proxy override. It remains available for older Hosts, SOCKS5 users, and deployments that need selected vision domains to take a different route; proxyHosts scopes only this plugin override and does not redefine the Host's global proxy policy. Redirects cannot widen that scope: once a DVR-proxied request redirects to a host outside proxyHosts, that hop returns to the request's inherited Host/caller dispatcher. A request whose initial URL is outside proxyHosts stays fully Host-owned, even if a later redirect enters the list.
Incremental author: shaoqiuyuavailable (router local-vision increment)
Design credit: the local vision backends (Ollama / LM Studio dual backends, structured recognition, screenshot identification, same-image memory dedup, failure fallback, concurrency protection and timeout handling) inherit their design from dsh-vision — merged into the HTTP vision chain here, with per-level fallback and dual-protocol support added on top.
An optional keyless local-first vision path for private, free, offline recognition. It plugs into the existing HTTP vision chain as local-ollama; if it fails, any configured cloud backends can still be tried unless you deliberately configure a local-only chain.
1. Install Ollama and pull a vision model
# https://ollama.com — then:
ollama pull qwen2.5vl
2. Enable it — under Settings → Vision Router → Local & Device, or via a profile patch:
- id: vision-router
config:
localOllama:
enabled: true
baseURL: 'http://127.0.0.1:11434/v1'
model: 'qwen2.5vl'
temperature: 0.5
top_p: 0.8
3. What happens
local-ollama heads the HTTP vision chain. For a strict local-only setup, remove cloud vision rows/custom HTTP endpoints and turn off freeFallback./api/ps probe keeps a dead service on the fast fallback path. Remote Ollama URLs are never auto-warmed.localLmStudio with its OpenAI-compatible endpoint (default http://localhost:1234/v1) and enter the exact model identifier shown in Developer or /v1/models. It sits after local-ollama and before custom/cloud HTTP backends.format (default openai). Anthropic mode routes to /v1/messages with anthropic-version and base64 image sources; x-api-key is sent only when a key is configured. LM Studio needs version 0.4.1 or newer for this endpoint.vision_screenshot is disabled by default. After the separate Desktop screenshot opt-in, identify=true uses the same Ollama → LM Studio fallback.npx @deepseek-ai/dsh ...; source checkouts use pnpm dsh .... A bare dsh ... command only works when the CLI is already on your shell PATH.0.1.0-rc.8 as the public minimum and currently supports the released stable channel through 0.1.5-rc.2. Exact 0.1.6-alpha.1 coverage is verification evidence only, not a preview support promise; scheduled latest/alpha canaries monitor drift without changing the support policy. DVR 2.0.x was the final train with public support for rc.6/rc.7. See DSH Host support window.apiKeyEnv) only for paid httpProviders.vision_html_screenshot; every other tool works without a browser.import or scrot and a capturable desktop session (Wayland support depends on the environment).vision_ocr falls back to the vision model when the local engine is absent.Normal npm/npx install — one command:
npx @deepseek-ai/dsh plugin --profile web add dsh-vision-router
[!NOTE] Profiles that mix legacy manual
cordis.patch.ymlplugin rows with bundle-managed plugins should read the compatibility warning in Quick start before running DSH plugin commands.
From a DeepSeek Harness source checkout:
pnpm dsh plugin --profile web add dsh-vision-router
Optional verification:
npx @deepseek-ai/dsh --profile web --dump-config | grep vision-router
# source checkout: pnpm dsh --profile web --dump-config | grep vision-router
When first adding the plugin to an already long-lived Web profile, let that Web process reload the plugin bundle; the host discovers the browser bundle through dsh.client at startup. After the plugin is loaded, model-catalog and wrapper-scope changes hot-update and do not require a restart.
Oh-DSH Desktop ships its own packaged DSH runtime and its own home layout: the desktop surface runs the desktop profile under ~/.ohdsh and does not load ordinary ~/.dsh profiles. The --profile web commands above therefore install into the wrong environment on that product.
Install into the desktop profile by pointing DSH_HOME at the Oh-DSH home:
DSH_HOME=~/.ohdsh npx @deepseek-ai/dsh plugin --profile desktop add dsh-vision-router
(Windows PowerShell: run $env:DSH_HOME = "$env:USERPROFILE\.ohdsh" first, then the same command.)
[!WARNING] Oh-DSH Desktop ≤ 0.1.5 bundles DSH
0.1.0-rc.5.dsh-vision-routerv1.4.1 and earlier crash that runtime at startup (configurable provider "deepseek-official" is already declared, surfacing asDSH runtime exited before readiness). Install v1.4.2+.
If a broken install already keeps the Desktop from starting, open ~/.ohdsh/profiles/desktop/package.json, remove the dsh-vision-router entry from both dependencies and dsh.profile.bundles, save, and restart the Desktop.
Oh-DSH Desktop's built-in plugin marketplace (search → prepare → isolated preview → apply, with a previous snapshot for recovery) also works once the community catalog lists this plugin; do not mix marketplace installs with the direct command above. The bundled @oh-dsh/vision (view_image) coexists with this plugin — the tool names do not collide.
- id: vision-router
disabled: true
Set it back to false to re-enable. Unloading removes the wrapper routes, tools, skill and settings card; cached artifact files remain.
# normal npm/npx install — install the version you want explicitly; a bare
# `update` is silently held back for releases younger than 24h (pnpm v11)
npx @deepseek-ai/dsh plugin --profile web add dsh-vision-router@<version>
# DeepSeek Harness source checkout
pnpm dsh plugin --profile web add dsh-vision-router@<version>
Settings live in the profile's settings provider and survive upgrades. The settings card's one-click update installs the registry-confirmed version explicitly and verifies the installed manifest afterwards — it never reports success on a package-manager exit code alone.
A fresh release does not take effect (
downloaded 0/added 0): pnpm v11 holds versions younger than 24h back; install the target version explicitly as above (pnpm auto-exempts it), ornpx dsh-vision-router repairfixes the stale version-pinned profile exemption so updates take effect immediately.
Upgrading from a pre-bundle-patch install (v0.x): the package now mounts itself through its own bundle patch, so a leftover manual row in
~/.dsh/profiles/<profile>/cordis.patch.ymlduplicates it anddsh webfails at startup withduplicate loader entry id: vision-router. Delete the old block:- insert: # remove this whole block - id: vision-router name: dsh-vision-routerTo keep custom settings, replace it with a plain by-id override (no
insert):- id: vision-router config: # your overrides …
After upgrading from v1.1.x, pixel tools fail with
colourspace: parameter space not set: a stale sharp 0.34.0 from the v1.1.0 era still sits in the profile and its libvips DLL conflicts with the host's sharp 0.35.3 in the same process (issues #42 / #75). Delete~/.dsh/profiles/<profile>/node_modules/sharpand~/.dsh/profiles/<profile>/node_modules/@imgand restart, or runpnpm installinside the profile. Since v1.2.2 the plugin detects the stale version at runtime and prints the same guidance itself.
# normal npm/npx install
npx @deepseek-ai/dsh plugin --profile web remove dsh-vision-router
# DeepSeek Harness source checkout
pnpm dsh plugin --profile web remove dsh-vision-router
This removes the dependency and the bundle layer. If you disabled the stock DeepSeek row manually, re-enable it in your profile patch.
If dsh-web-ui / @linxin666/dsh-web-ui-all is installed alongside Vision Router, its dsh-tool-describe-image send hook can rewrite image uploads into describe-image references before downstream vision plugins receive the original image block.
dsh-web-ui now provides an explicit compatibility switch. Go to Settings → Plugin config → Image understanding and turn off “Rewrite images to describe-image references on send”, or set interceptImageSend: false. Image sends will then pass through unchanged so dsh-vision-router can receive the original image block. The switch is read on every send, so no hook reinstall or DSH restart is required.
See dsh-web-ui#301 for the upstream compatibility change.
Unexpected token ... is not valid JSON (UTF-8 BOM)Symptom: dsh web / pnpm dsh web exits immediately at startup:
SyntaxError: Unexpected token ...
is not valid JSON
at JSON.parse (<anonymous>)
at readProfileManifest (packages/boot/app-boot/src/profile.ts)
Cause: ~/.dsh/profiles/<profile>/package.json was saved as UTF-8 with BOM by an editor. The invisible \uFEFF character at the start makes JSON.parse fail, because JSON does not allow it before the opening brace.
Recommended fix: run Vision Router's standalone repair command. It does not require DSH to boot first; it locates the profile, detects a UTF-8 BOM, removes only the three leading BOM bytes, and then validates the JSON again:
npx dsh-vision-router repair --profile web
To diagnose without changing the file:
npx dsh-vision-router doctor --profile web
Replace web if you use another profile, or omit --profile to scan all profiles.
Manual fallback: in VS Code, use “Save with Encoding” → UTF-8 (without BOM). If repair removes the BOM but the JSON is still invalid, it will not guess or rewrite any other JSON content; inspect the file manually.
ctx.fs (sandbox-aware); vision uploads never send anything but the selected image and the question.<workspace>/.dsh-vision-router/artifacts; results return absolute paths and byte counts.apiKeyEnv names a DSH credential reference; the value is resolved per call and never logged.screencaptureimportscrotidentify=true| PNG / + description |
vision_long_screenshot_ocr | Long-screenshot transcription: overlapping chunks, tesseract first / vision model fallback, stitched Markdown | chunk PNGs + Markdown + manifest |
falsereverseRouting | true | with routing: true, route text turns back to textProvider |
wrapperRoute / chainRoute | deepseek-vision / vision-chain | developer route names. Leaving either field blank in current Settings clears the override and restores its default; explicitly blank values are retained only for legacy/manual persisted-config compatibility. |
stealth | false | take over the official deepseek-official route (official row only; custom routes are auto-wrapped by default) |
textProvider | deepseek-official / deepseek-v4-pro | the model that reasons (your daily model) |
tool / progressiveTools / autoActivateOnImage | true / false / true | vision tools on / progressive mounting (off by default for a stable tool schema) / image-turn auto-mount when progressive mode is enabled; progressiveTools is boot-time config |
rewriteImages | true | rewrite image blocks in the model input (cached description or tool-hint marker); the UI log keeps images |
desktopScreenshot | false | privacy opt-in for the model-callable vision_screenshot desktop-capture tool; checked live before every capture |
freeFallback | true | append the anonymous OVH models after explicit local/custom HTTP backends; turning this off never disables an explicitly configured local backend |
localOllama | { enabled: false, baseURL: 'http://127.0.0.1:11434/v1', model: 'qwen2.5vl', format: 'openai' } | local vision backend; when enabled, local-ollama leads the HTTP vision chain, is skipped automatically when down, and supports OpenAI or Anthropic wire format |
localLmStudio | { enabled: false, baseURL: 'http://localhost:1234/v1', model: '', format: 'openai' } | local LM Studio backend after Ollama; enter the exact model identifier from LM Studio Developer or /v1/models |
visionTurnBudgetMs | 0 | whole-turn vision wall-clock budget; 0 means unlimited. Concrete provider calls/tools still keep their own hard deadlines |
downscale / downscaleMaxPixels | true / 4000000 | pre-call downscale and its pixel budget (latency guard) |
cache / cacheTtlSeconds / cacheMaxEntries | true / 3600 / 200 | vision answer cache |
timeoutMs | 120000 | per vision call deadline |
artifactsDir | .dsh-vision-router/artifacts | artifact directory (relative to the session workspace) |
proxy / proxyHosts | '' / openrouter hosts | advanced override: empty follows the DSH/Host network path; only an explicit value proxies selected vision hosts through Vision Router |
catalogCorrections | true | built-in catalog-routing corrections for known upstream wire-protocol mismatches; each correction disarms itself once the catalog is fixed upstream |
