dsh-task-gantt
An agent-team task Gantt chart for the DeepSeek Harness sidebar — one swimlane per teammate on the y-axis, real session time on the x-axis, and every shared task drawn with its title and summary.
English | 中文
Screenshot below is the real panel rendered from a synthetic fixture
(5 lanes with 5 different agent colours, tasks of clearly different durations,
one still running, message arrows in both directions), captured from a real
browser at 2× and cropped to the panel itself: docs/screenshots/panel-v4.png.
It is labelled as such on purpose: the drawing is the shipped component, but the
DATA is a fixture, so it is not a real-team capture. The footer in the image
carries the build identity (v0.2.11 · label-in-box), which is how a reader can
tell which build drew it.
The remaining shots (board overview from real team data, task-card detail,
degraded state) are still pending; see
docs/SCREENSHOTS.md. No mock-ups will be published.

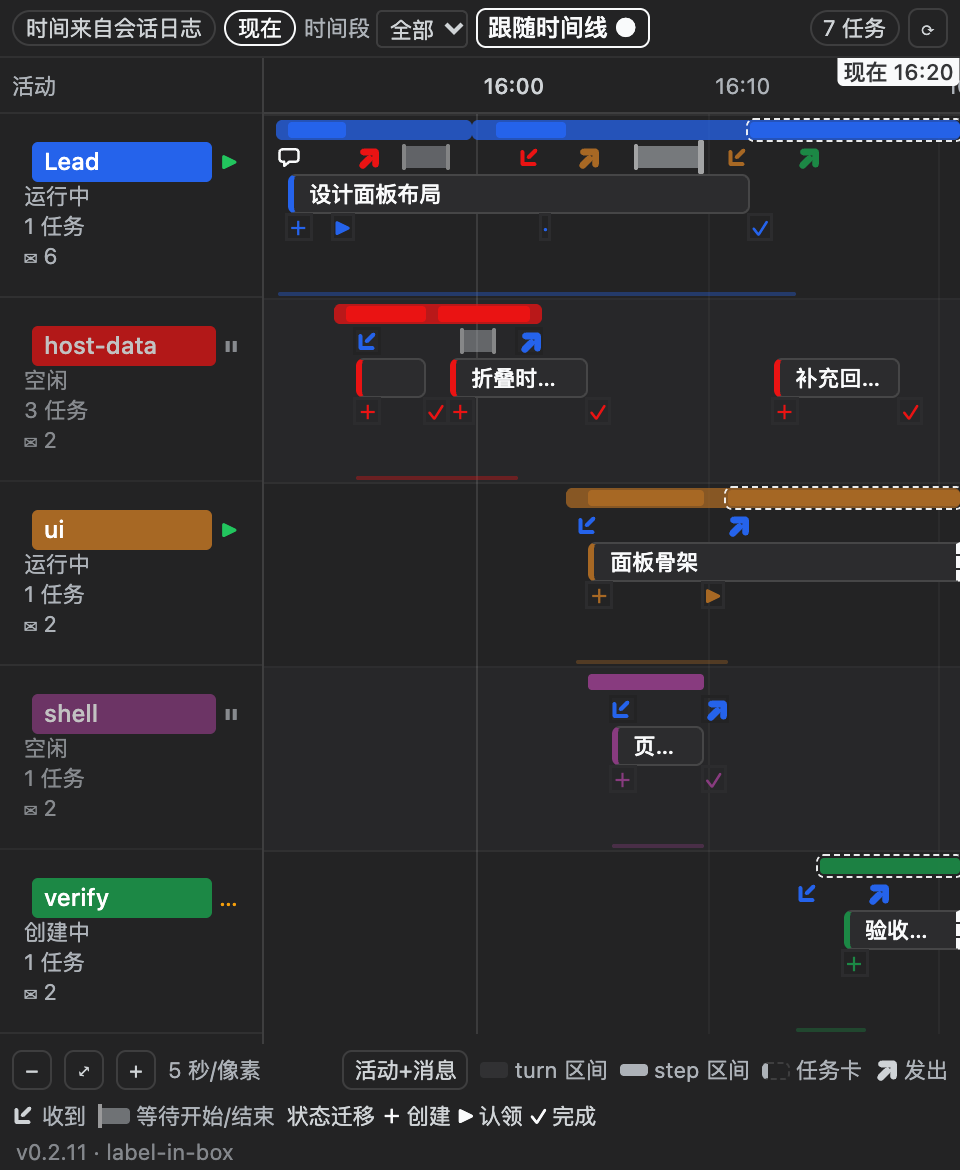

The task Gantt panel in the dark skin: five lanes with different agent colours,
message arrows pointing out or in, and task bars whose length is the task's real
duration, with the title drawn inside each bar
dsh-task-gantt is a plugin for dsh-better-sidebar: it registers one extra sidebar tab. It is read-only — it never creates, claims, or completes a task.
Project status
| |
|---|
| Version | 0.2.37 |
Frozen contract (src/shared/contract.ts) | done |
Host data layer (src/host/**) | in progress |
Sidebar tab registration (src/client/index.ts) | done |
Gantt rendering (src/client/ui/**) | in progress |
| Real-machine mount smoke test | not run yet |
The chart is described below as specified by the frozen contract; for what has
actually been executed and observed, read
docs/VALIDATION.md (owned by the verification teammate) —
this README does not restate untested claims as results.
What you get
- Swimlanes = the roster. The Lead first, then the teammates in roster order,
then an
unassigned row for tasks the board has not handed to anyone.
- A real time axis. Every span and every task transition is dated from the
durable session event log (epoch ms) — not from "when the panel happened to
open".
- Turn bands with step bars inside. A whole prompt/response turn is a faint
band; each model step inside it is a solid bar. A span that has not closed yet
is drawn open-ended and extends toward now.
- Task chips carry the work, not just a colour.
subject plus a one-line
description, with status, owner, blockedBy, writeScopes and readiness in
the detail view.
- Honest degradation. When a lane cannot be dated, the panel says so and
labels the task as live instead of inventing an interval.
- Themed by tokens, bilingual by default. All colour comes from DSH's
--dsw-alias-* / --dsw-font-* / --ds-* tokens, so every skin works; the UI
is Chinese or English depending on the page language.
Requirements
| Requirement | Value |
|---|
| DSH | 0.2.0-rc.2 (the version this plugin was developed against) |
| dsh-better-sidebar | >= 0.4.0 (the release that introduced the ctx.betterSidebar registry service) |
| Node | >= 20 |
| Profile | any browser-backed DSH Web profile |
The plugin declares one peer, @deepseek-ai/cordis@^4.0.0, and marks it
optional. It declares no @deepseek-ai/dsh-* peer on purpose: the host's
startup compatibility preflight evaluates those ranges and silently disables the
whole profile row when one fails. See docs/DESIGN.md §8.
If dsh-better-sidebar is not installed, the plugin still loads and logs one
warning; it simply has no tab to register into.
Install
The commands below are quoted verbatim from
docs/INSTALL.md (owner: packaging), which is the single
place they are written down and carries the full evidence for each one.
cd ~/.dsh && dsh plugin --profile web add "github:xx529/dsh-task-gantt"
Then restart dsh web and hard-refresh the browser page (Cmd+Shift+R).
Status: [not run]. xx529/dsh-task-gantt does not exist on GitHub yet
(gh repo view xx529/dsh-task-gantt → "Could not resolve to a Repository"),
so this exact command cannot be run end-to-end today. It is written from
first-hand sources, not from memory: dsh plugin forwards its arguments
verbatim to pnpm (~/.nvm/versions/node/v22.22.2/lib/node_modules/@deepseek-ai/dsh/lib/bin.js:96),
and github:owner/repo is the form the official docs print for a bundle
plugin (docs/INSTALL.md §1.1, with the same form verified
against a real package).
⚠️ Do not install it under an alias
… add "dsh-task-gantt@github:xx529/dsh-task-gantt" also parses, but it lands
the package at node_modules/<alias> while its inner package.json still says
"name": "dsh-task-gantt". The profile's dsh.profile.bundles list and the
Loader row are keyed by the package name, so the mismatch degrades to
"warn, then skip". Use the unaliased form above
(docs/INSTALL.md §1.1).
Optional prerequisite: the panel needs dsh-better-sidebar to have somewhere
to register. It is deliberately not a dependency of this package.
cd ~/.dsh && dsh plugin --profile web add dsh-better-sidebar
Uninstall
cd ~/.dsh && dsh plugin --profile web remove dsh-task-gantt
Restart dsh web afterwards.
⚠️ remove does not rewrite the patch layer. Uninstalling deletes the
dependency but does not remove manually-added insert lines from a
cordis.patch.yml. This package's row comes from its own bundle patch
(dsh.bundle.patch → cordis.patch.yml), which leaves with the package, so
nothing should be left behind — but if you had also hand-added an
- insert: - id: dsh-task-gantt line to
~/.dsh/profiles/web/cordis.patch.yml, delete that line too
(docs/INSTALL.md §5).
Usage
Opening the panel
- Open a session that has an agent team (a Lead session with teammates or at
least one shared task).
- Open the right sidebar and click
+.
- Pick the tab:
- Chinese UI: 任务甘特图
- English UI: Task Gantt
The tab is declared single: true — the documented single-instance sugar
(single: true ≡ dedupeKey: () => id): reopening it focuses the existing tab
instead of stacking a second one. If your sidebar shows no description next to
the entry, that is a host-side rule, not a plugin bug — the host only renders
descriptions while the new-tab list holds 4 or fewer entries.
Reading the chart
| Element | Meaning |
|---|
| Lane header | one roster member: name, role, and a status dot |
| Faint band | a whole turn (turn/start … settlement) |
| Solid bar | one model step inside a turn (step/start … step/end) |
| Open-ended bar | the span has not closed yet — it extends toward "now" |
| Vertical "now" line | the current wall-clock time |
| Task chip | a shared task, positioned by its dated history |
| Task chip with a live marker | the task has no dated history; its position is its current state, not a recorded interval |
Hover or focus a task chip for the full subject, description, blockedBy,
writeScopes, and whether it is ready. The chart is built from real DOM
elements rather than a canvas, so it is selectable text and screen-reader
reachable.
Degraded states
The panel always tells you how its timeline was assembled. The response carries a
source field with exactly three values:
source | What it means | What you see |
|---|
log | spans came from readable durable session logs — authoritative | full timeline |
partial | some lanes' logs were unreadable | the readable lanes are drawn; the others degrade, with a note |
live | no log was readable — the board is projection-only | current state only, clearly labelled, with a note |
Two more states are worth knowing:
- No agent team in this session — the empty state; there is nothing to chart
yet.
- The board stopped early — the Lead's durable team failure string is shown
as a banner.
In no degraded state does the plugin invent a timestamp. A task with no recorded
history is drawn at its current position and marked as live; that is deliberate.
How it works
The chart is assembled from two sources, because either one alone cannot draw
it:
- The
agentTeam session projection (browser side) is authoritative for
what exists and what state it is in — the roster, phases, and the shared
tasks with their status, owner, dependencies and write scopes. It contains no
timestamps at all: neither the member records nor the task records carry a
createdAt / startedAt / completedAt. It can tell you a task is
completed; it can never tell you when.
- The durable session event log (host side, one log per session — the Lead
and each teammate) is the only authoritative clock. Events carry
time (epoch
ms) and seq. The host half reads the logs and folds them into activity spans
and dated task transitions.
The host half exposes the folded result over a small read-only JSON API
(POST /dsh-task-gantt/api/timeline), and the browser half renders it. The
browser cannot read session logs itself, which is why the split exists.
Where task times come from
Task transitions could in principle be invisible to the log, so the plugin tries
three tiers in order and stops at the first that yields data:
- a task-related event in the log (
team/task) → use its time verbatim;
- otherwise a
tool/call for the shared-task-board tool (team_task_create /
team_task_update) → use the call's time, and use its expected_revision
to attribute the change to the teammate that made it;
- otherwise nothing →
history stays empty and the task is drawn as live.
Tier 1 is the normal path, and this was measured. team/task events are
written into the Lead's own session log and flushed immediately, so a read
right after a board change already sees them; the six teammate logs contained
zero such events
(docs/FINDINGS-host.md §1, §4.1–4.2). Tier 2 remains
as a fallback and as the attribution channel, because team/task carries the
full task snapshot but no action field — the action has to be derived from
revision continuity plus status transitions
(docs/FINDINGS-host.md §4.4).
Tier 3 is a real outcome, not a bug. See docs/DESIGN.md §3.
Configuration
None. The plugin registers one tab and one HTTP route prefix and has no settings
surface, no config file, and no environment variables.
FAQ
Does it modify my tasks?
No. The plugin is read-only; it never calls the task-create/update service. The
only HTTP routes it registers are POST …/timeline and POST …/ping, both
same-origin.
Why is a bar missing for a task that clearly ran?
Because its transition was never recorded in a readable session log (tier 3
above). The task is still drawn at its current position and marked live rather
than being placed at a guessed time.
Why does the tab not appear?
Either dsh-better-sidebar is not mounted in this profile, or the plugin row is
not active. Check that the plugin appears in the profile's
dsh.profile.bundles, then restart dsh web.
Does it work on a profile without an agent team?
Yes — it shows the empty state. The plugin probes every service it needs with
ctx.get(...) and never requires the agent-team layer to activate.
Will it work with my skin?
It should. The panel consumes only DSH theme tokens (--dsw-alias-*,
--dsw-font-*, --ds-*) and contains zero colour literals; that is enforced by a
test.
Development
pnpm install
pnpm run typecheck # tsc --noEmit, must be 0 errors
pnpm run test # vitest
pnpm run build # emits lib/index.js (host) + lib/client.js (browser)
lib/ is committed on purpose: the plugin installs from GitHub with no build
step, so the published bundle has to be in the repository — and CI checks that it
is current.
To try a local checkout against your profile without installing a copy (quoted
verbatim from docs/INSTALL.md §1.2):
cd ~/.dsh && dsh plugin --profile web add "link:/Users/lzx/Documents/GitHub/dsh-task-gantt"
Design notes and data-source rationale: docs/DESIGN.md.
Market/submission material: docs/MARKET.md.
What has actually been verified: docs/VALIDATION.md.
License
MIT — see LICENSE.
