English | 中文
Plugin graph
Which plugin provides the services every other plugin injects — read from the live Cordis
runtime, not from a manifest.
A settings section draws the graph, and a standalone page shows the same graph at full width.
Both render the same panel: the two hosts differ only in what they can supply (a locale
service, a theme, a window instead of a settings column).
Screenshots

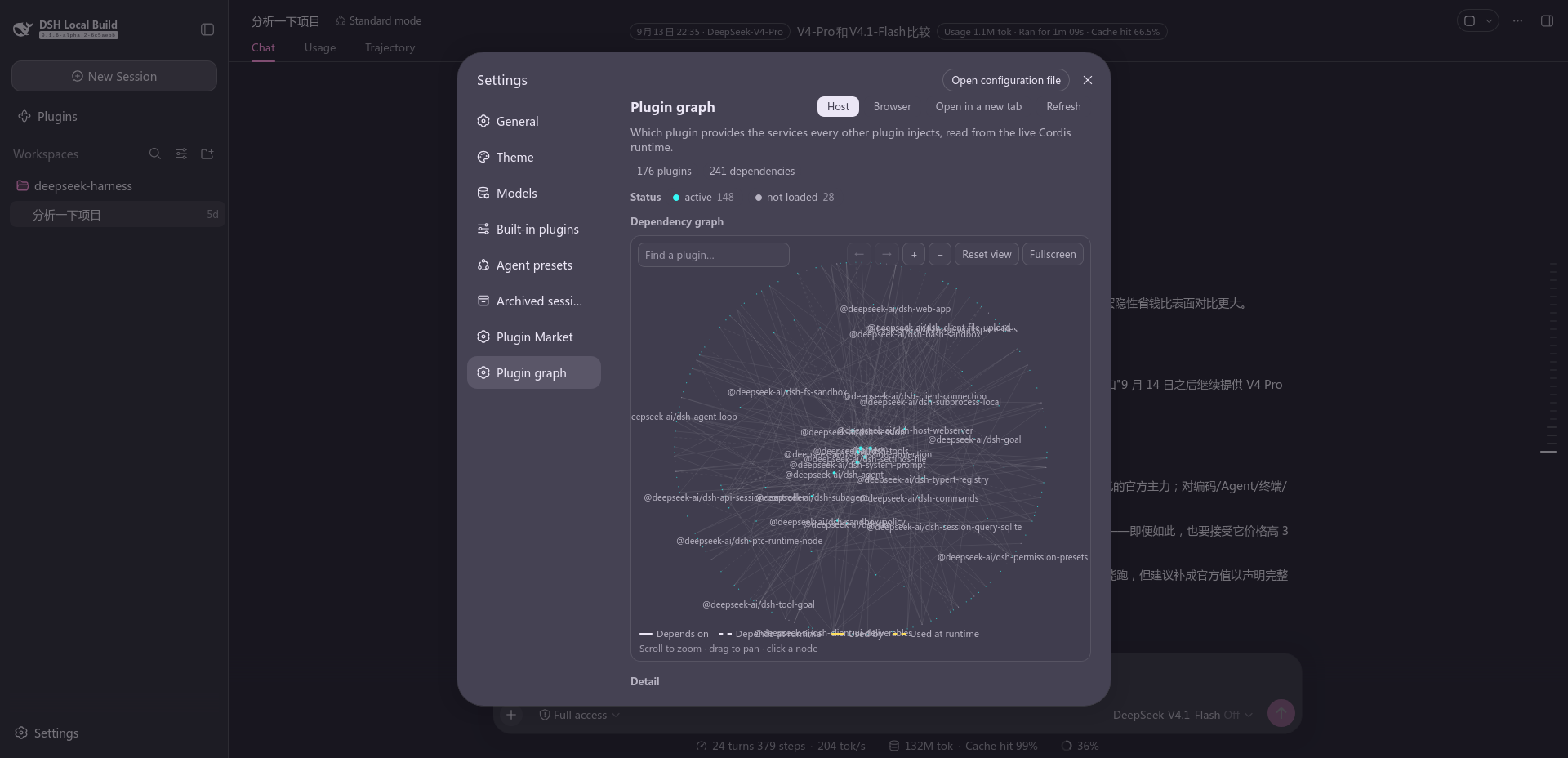

The section, as it opens: the counts, the status row (a dot per state the graph has, its
count, and a click that filters to it), the drawing, and the four-line key in the corner.
The controls above the drawing are ← → (selection history), zoom, reset and fullscreen.
The plugin graph section

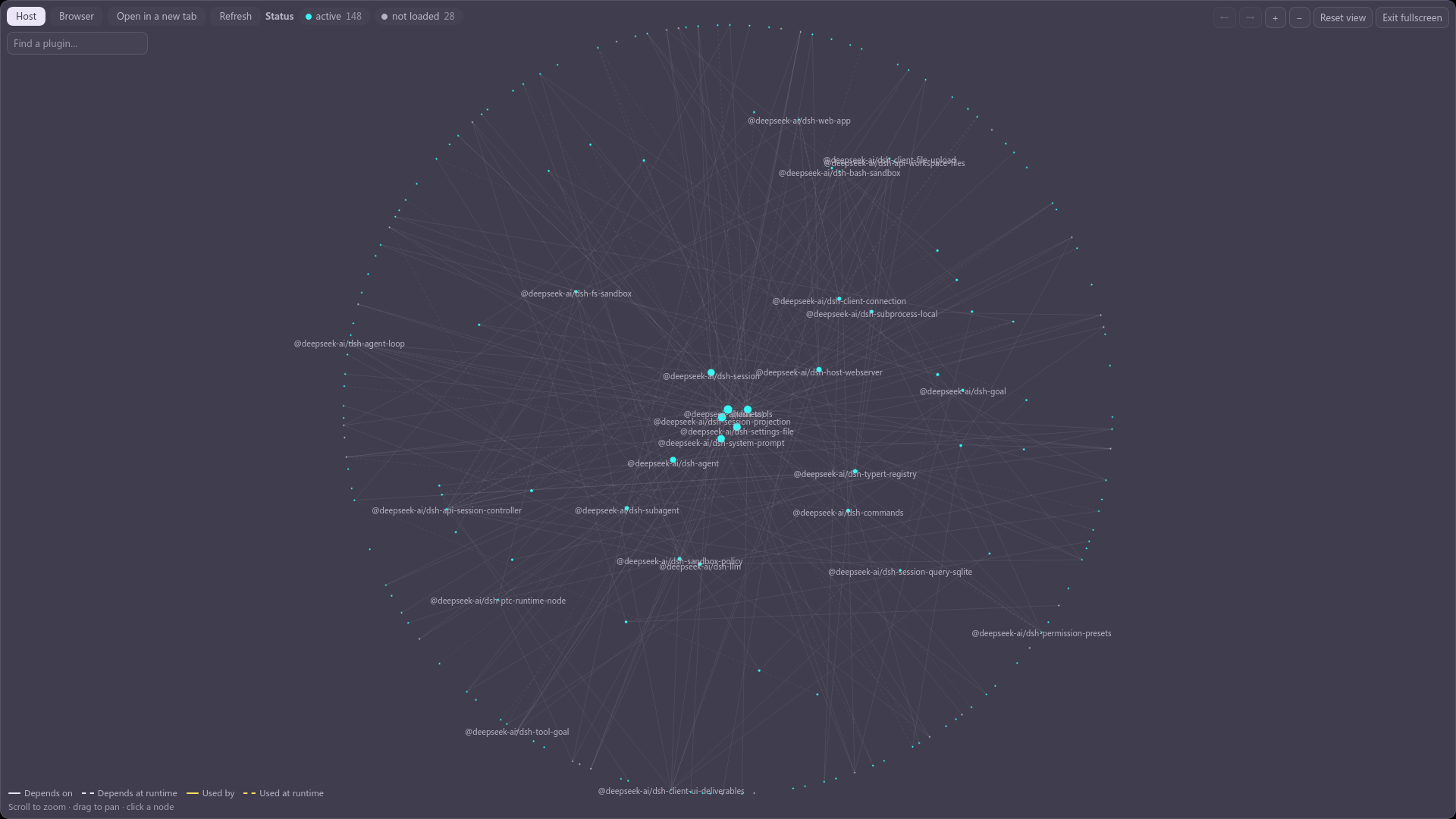

Fullscreen. The canvas IS the fullscreen element, so everything the panel put beside it is off
screen — which is why the toolbar moves to the top line inside the canvas and the search box
takes the second.
Fullscreen

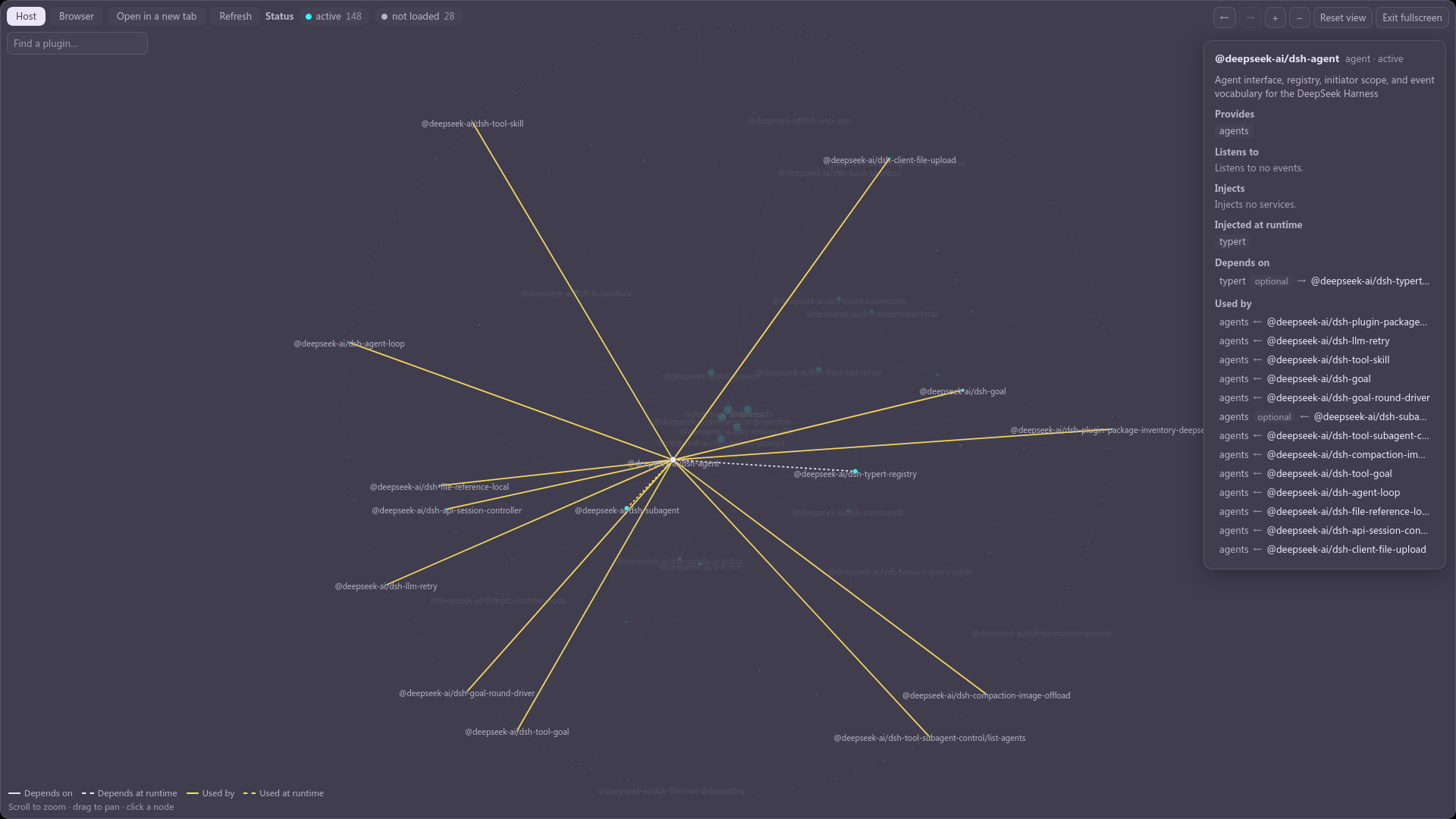

A selected node. Its own description appears under the name, Listens to says which events it
subscribes to, and the wires split by direction — the key in the corner names which colour is
which — dashed where the dependency is only acquired at runtime.
A node selected

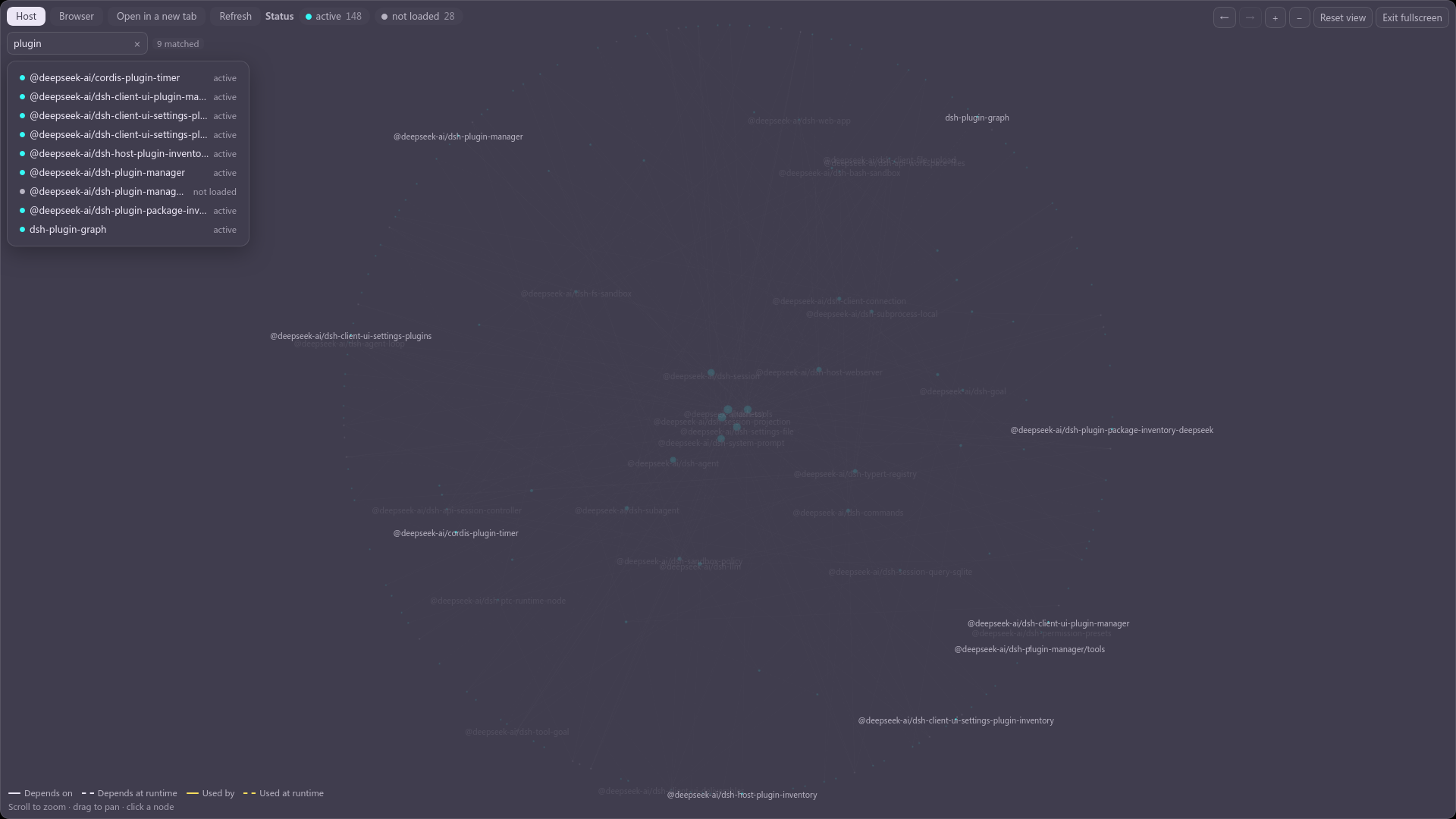

Searching. The matches are listed as a card, each row carrying the package and its state, and the
drawing dims everything else. The × in the field clears it and hands the caret back.
Search results

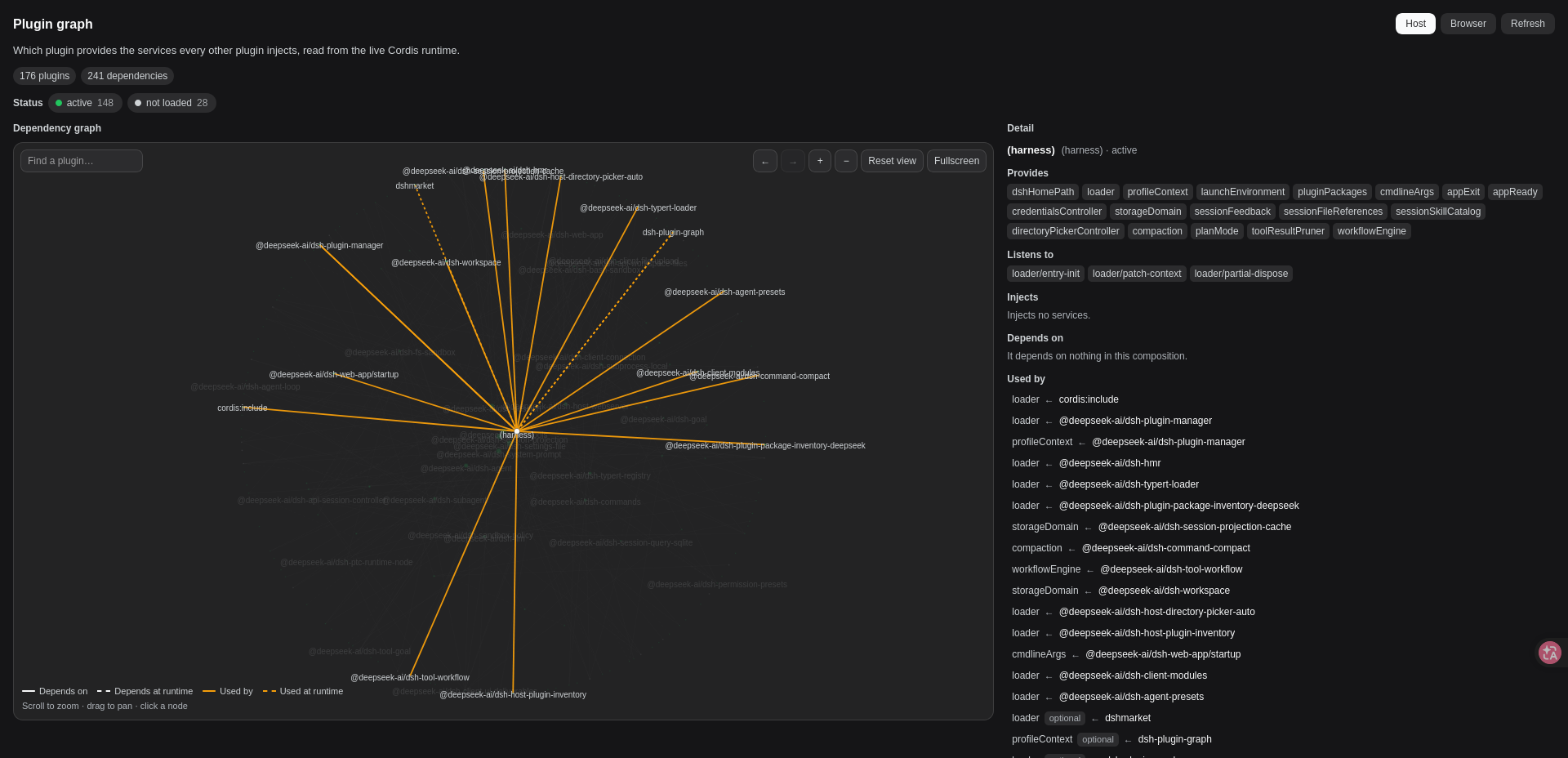

The standalone viewer, opened in a new tab: the same graph at the width of a whole window. Here it
has the (harness) node selected — the runtime's own row, which carries everything no plugin
claims: the services the root fiber provides, the services it injects, and the events it listens
to. It depends on nothing, so it has incoming wires only.
The standalone viewer
The two trees
There are two Cordis runtimes, and they get two graphs:
| Host | Browser |
|---|
| Where it runs | the Node process | the page |
| Collected by | collectGraph(ctx) on the host | collectGraph(ctx.root) in the page |
| Shown by | this section, fetched over HTTP | reported by the page, read back by the viewer |
They are never merged. They are different runtimes with different plugins and different
service names, so a merged graph would not be a bigger one — it would be a wrong one. The
Browser tab is a second source, not a second set of nodes.
The browser tree cannot be collected by the Node half, so the page is the only thing that can
describe it: the section POSTs what it collected to /dsh-plugin-dependency-graph/client, and the viewer
GETs it back (one path, two methods). The report carries the instant it was taken, and the
viewer prints it — a graph a reader believes is current but is not is worse than one that admits
its age.
The browser tree's descriptions come from a route of their own
(/dsh-plugin-dependency-graph/descriptions), because the page cannot read node_modules while the packages
it is describing are the same ones: this half reads them and serves a name → description table.
That read is the one place the two halves differ in capability, and it is why the merge lives in
src/describe.ts — pure, so both halves run one implementation, while only the Node half touches
node:fs. Resolution tries the plugin's own tree first, then bases learned from the host's
profileContext.dir: measured, the obvious bases all land on the checkout, where none of the
third-party plugins are installed.
How a dependency is acquired
A plugin can take a service two ways, and the difference is not cosmetic:
- Declared on the plugin (
export const inject = [...], an inject: option, or the
@Inject decorator) — the fiber stays pending until every one of them resolves. The plugin
does not load without them.
- At runtime, through the
ctx.inject(deps, callback) helper — the callback runs once they
appear. The plugin loads either way; only that contribution waits.
Both are real dependencies, both get edges, and the second is what the optional mark means. A
missing required service is a broken composition; a missing optional one is the ordinary
case the callback form exists for.
The collection reads three things, and the distinction matters: the Loader entries give the
ids and package names, the reflection store is the authoritative provider table (keyed by
isolation symbol — the fiber's own store is the wrong source and would name consumers as
providers), and the registry supplies every live fiber, including ones started at runtime.
Reading the graph
- The layout is data, not physics. A node sits closer to the middle the more plugins depend on
it, and the angle is a golden-angle walk over the ids — so the same composition draws the same
picture on every visit, and a refresh never makes the reader find their bearings again. Hubs are
the centre; the rim is what nothing depends on.
- Refresh re-reads the graph. It keeps whatever is on screen while it does, rather than
blanking to a spinner: the canvas can be the fullscreen element, and an element that leaves the
document takes fullscreen with it.
- Search filters by name as you type, and the matches are listed as a card with each
package's state beside it — the list is also the way to reach a node that the filter has dimmed
off to the edge. The
× in the field clears the query and returns the caret to it; the field
keeps the room for that button whether or not it is showing, so nothing shifts as you type.
- The status row is a legend, a census and a filter at once: one pill per state the graph
actually has, its count, and a click that narrows the drawing to that state. It lists only the
states present — a row of mostly-zero pills would read as legend for colours nobody can see. The
key is always shown; the swatches keep the selected colours whether or not anything is selected,
because a reader who has not clicked yet is the one who needs to know what the colours mean.
- Scroll zooms, drag pans, a click selects. A scroll inside the match card or the
detail card scrolls THAT card: they are panels over the drawing, and reaching for them means
scrolling a list, not zooming what is behind it.
- Back and forward walk the trail of selected nodes. Choosing a new node after going back
drops the forward entries — the same rule a browser applies, for the same reason — and "nothing
selected" is a step like any other, so a node can be reached again from either side.
- Fullscreen fills the window. The toolbar and the search box move INSIDE the canvas, on the
first two lines, and the detail follows onto it as an overlay: the column beside the drawing is
not on screen in that mode.
- Open in a new tab hands the graph to the standalone viewer — a whole page, served by the
Node half, which is the point: an iframe or a route inside the app would inherit the same
width the reader is trying to get away from.
- Open configuration file jumps to this plugin's row in the settings editor.
What a node reports
Selecting a node fills the detail card with everything the runtime knows about that plugin:
- The package's own description, read from its
package.json. Absent rather than empty when
the package does not say, or when nothing could read it — drawing no line is the truthful
rendering of "this package does not describe itself".
- Provides — the services its fibers registered.
- Listens to — the event names its fibers subscribed to, read from the dispatcher's own table.
One direction only, and named for it: dispatch never records a publisher, so who emits a
name is not knowable. Listeners produce no edges either — a listener waits for a name, not for a
provider, so it is not a dependency, and drawing it as an edge would be a false one.
- Injects and Injected at runtime — the two ways a dependency is acquired, listed apart
because they answer different questions; a plugin asking "why did this not load" wants the first.
- Depends on and Used by — every edge in both directions, each row naming the service that
makes it and whether it is optional.
(harness) is the one node that is not a plugin: it is the runtime's own row. Services
provided by a fiber with no Loader entry behind it — the root fiber, and anything started outside
the entry tree — are credited here rather than dropped, and their injections and listeners come
with them. It is what keeps loader and the environment rows from reading as unresolved
dependencies of everything that injects them.
What the graph reports
Two blocks sit under the drawing, and both are about work rather than about drawing:
- Unresolved dependencies — required services with no provider anywhere in this composition.
Only required ones: an optional injection with no provider has simply not been offered yet,
and the plugin is working as designed.
- Isolated services — one service name with more than one live implementation, i.e. provided
under more than one isolation label.
The standalone viewer
A page the Node half serves as a whole document. It has no Cordis of its own, so it can only
show the host's tree plus the browser report the app sent — and it reads two things from the URL
it was opened with, because it cannot read them any other way:
| Parameter | Why |
|---|
?scheme=dark|light | the page styles itself with the app's --dsw-* tokens; the attribute that switches them is the app's, not this page's |
?lang=zh|en|ja|ko|es|fr|de | so the new tab opens in the language the app is in, instead of guessing from the browser |
The locale is whitelisted against the dictionaries before it reaches the document — a query
string is not a place to trust, and that value ends up in the page's lang attribute. A page
opened directly (no parameter) falls back to the browser's own preferences, then to English.
The browser report lives in memory only, never on disk: it describes a runtime that exists while
the page is open, and a report that outlived a host restart would be describing something that
is not there.
Language
Seven dictionaries in src/client/locales.ts: zh and en (the two the shell carries) plus
ja, ko, es, fr and de, contributed one namespace at a time through the single-locale
overload — the language pack a profile carries owns the definition that makes a language
selectable, and this plugin adds only its own strings to it. It deliberately does not call
addLanguage.
Every dictionary is typed Record<MessagesKey, string>, so a key added to MessagesKey fails to
compile until all seven carry it. Wording follows session-messages, which shipped these five
first: the plugins sit in one interface, so a reader must meet the same terms in both.
Layout
dsh-plugin-dependency-graph-plugin/
package.json dsh.bundle + dsh.client declarations, exports map (private, not published)
cordis.patch.yml layer patch: the Loader row
build.mjs build script: bundles both halves, and copies the theme at build time
tsconfig.json IDE type resolution only, pointing at the checkout source (read-only)
src/
index.ts Node half: collectGraph, and the routes below
graph-types.ts the wire shape both halves share (types + path constants)
collect.ts the collector, one function for both runtimes
describe.ts the description merge, pure — both halves run it, only the
Node half reads package.json
viewer-page.ts the standalone page's document, as a string
viewer/main.tsx the standalone page's body (React bundled in — that page has no
module table to answer a bare `react` import)
client/
index.ts registers the settings section
GraphPanel.tsx the panel both hosts render
graph-canvas.tsx the drawing: layout, hit testing, zoom/pan
locales.ts the seven dictionaries
docs/ the screenshots above (chinese variants: `-zh.png`)
Routes, all under /dsh-plugin-dependency-graph: the graph itself, /view (the page), /viewer.js, and
/theme.css — plus /client, which takes a POST from the app and answers a GET for the viewer,
and /descriptions, which serves the name → description table for the browser tree.
Development
npm run build # bundles lib/index.js, lib/client.js and lib/viewer.js
npx tsc -p tsconfig.json # type check
Install as a plugin in a DSH checkout by adding this directory's cordis.patch.yml to the
bundle: it inserts the single Loader row. Nothing here needs the host's source to be modified —
that is a constraint this plugin is built to, not a coincidence.
