dsh-omni-workstation
An omni-modal workstation plugin for DeepSeek Harness (dsh). It gives the AI eyes, a brush, a camera and a voice: image analysis backed by an ordered multi-card VLM failover chain, a 6-tool local vision toolkit, image generation (incl. ComfyUI workflows), multi-card async video generation with an AI tool builder, and TTS / voice cloning across 3 cloud + 4 local providers — all configured from one auto-saving settings page (English / 中文).
English | 中文
Install · Quick Start · Features · Docs · How it works
Install
The plugin is a bundle: it carries its own cordis.patch.yml and self-activates — one command, no manual patch editing.
# From a local directory
dsh plugin --profile web add ./dsh-omni-workstation
# From GitHub
dsh plugin --profile web add github:huashenglian/dsh-omni-workstation
# From a packed tarball (pnpm pack / npm pack)
dsh plugin --profile web add ./dsh-omni-workstation-0.2.0-beta.1.tgz
dsh plugin add installs the dependency and appends the bundle to dsh.profile.bundles automatically.
[!NOTE]
Do not add a manual - insert: - id: omni-workstation row to the profile cordis.patch.yml — the bundle already inserts it. A second insert throws duplicate loader entry id: omni-workstation at boot.
Manual alternative: put the package under $DSH_HOME/profiles/web/plugins/dsh-omni-workstation/, add "dsh-omni-workstation": "file:./plugins/dsh-omni-workstation" to the profile package.json dependencies and "dsh-omni-workstation" to the dsh.profile.bundles array, run pnpm install, then restart dsh web.
Restart dsh web and open http://127.0.0.1:3080. If you don't have the dsh CLI yet, start the web server directly:
npx @deepseek-ai/dsh web
Requirements
dsh CLI (DeepSeek Harness) with a web profile — or any CLI/headless profile (see CLI / headless)pnpm on PATH (or use npx --yes pnpm@<version>)
Quick Start
- Restart
dsh web and open Settings → Omni Workstation.
- On the VLM tab, click Add Model (or edit the default card): pick a provider, paste your API key, fetch and pick a model.
- Send the AI an image (or a local path) and ask about it — the
analyze_image tool is now live.
Configuration
All settings live in one JSON file, omni-vision.json. The settings page writes it, and in a terminal-only setup it is the only way to configure the plugin — there are no extra slash commands to memorize.
Where the file lives (highest priority first):
| # | Path | When it is used |
|---|
| 1 | $DSH_OMNI_WORKSTATION_CONFIG_DIR/omni-vision.json | test / advanced override only |
| 2 | ~/.dsh/omni-vision.json — or $DSH_HOME/omni-vision.json when DSH_HOME is set | recommended; used whenever it exists, and the default target for a new install |
| 3 | ~/.dsh/profiles/<profile>/node_modules/dsh-omni-workstation/omni-vision.json | legacy location (v2.5–v2.13); still honoured while no home file exists |
On Windows: C:\Users\<you>\.dsh\omni-vision.json. Everything the plugin persists lives next to that file: omni-vision.json.bak (recovery copy), omni-vision.schema.json (editor completion), voice-library/ (cloned voice samples) and transcripts/ (STT output).
[!TIP]
- Hand edits apply without a restart. The plugin re-reads the file on the next agent step and re-registers tools accordingly.
- The boot log prints the resolved path and which modules are live, e.g.
[dsh-omni-workstation] config: /home/you/.dsh/omni-vision.json (home) | vlm=on(2 cards) toolkit=on …. Check it if you are unsure which file is in use.
- A JSON syntax error is reported with the path and never overwrites your file — the plugin keeps running on the last good
.bak (in memory) until you fix it.
- The file holds real API keys: never commit it. The plugin writes
"$schema": "omni-vision.schema.json" on every save, which gives editor autocomplete + validation; add that single line yourself only if you created the file outside the plugin (see configuration reference).
- Moving a legacy config to the stable location:
cp ~/.dsh/profiles/web/node_modules/dsh-omni-workstation/omni-vision.json ~/.dsh/ (PowerShell: Copy-Item <src> ~/.dsh/omni-vision.json). The home file wins from then on.
Minimal hand-written config — one VLM card is enough to make analyze_image live:
{
"retryCount": 3,
"vlmEnabled": true,
"apis": [
{
"id": "c_yyy",
"name": "VLM API",
"provider": "custom",
"protocol": "openai-completions",
"endpoint": "https://api.example.com/v1",
"apiKey": "sk-...",
"model": "gpt-4o",
"timeoutMs": 120000
}
]
}
CLI / headless (no browser)
The plugin loads in any composition that provides tools + llm — a web server is not required. Where there is no web surface, the /omni/* routes and the settings page simply do not exist, so configure it from the file:
# install into a CLI profile (any profile name works, e.g. headless)
dsh plugin --profile headless add github:huashenglian/dsh-omni-workstation
# add one valid VLM card to ~/.dsh/omni-vision.json (see above), then:
dsh --profile headless "describe ./screenshot.png"
analyze_image, the 6 vision tools, generate_image / generate_video, speak / clone_voice / transcribe all work — each gated by the same switches in the config file.- Browser-only extras: the settings page itself, the
/omni/* HTTP routes, the in-chat visual preview rendered by show_image / show_video (the tools still work and return artifact paths) and the /build-video-tool slash command.
- Web and CLI profiles read the same file, so you configure once and use it everywhere.
Feature Overview
| Module | Tool | Highlights |
|---|
| VLM | analyze_image | Ordered API card list, single-request failover, per-card timeout, JPEG→PNG fallback, 28 built-in providers, mirror models, dynamic multimodal adaptation |
| Vision Toolkit | zoom_image · sample_colors · image_diff · ocr_image · detect_elements · show_image | 4 tools are pure-local (zero tokens); shared image resolution + card chain; artifact paths only |
| Image Gen | generate_image | OpenAI / DashScope / ComfyUI protocols, multi-workflow management with role mapping, reference-image support, auto verify reminder |
| Video | generate_video (+ per-card names) | Multi-card (limit 10), 7 protocols, /build-video-tool AI builder with custom-adapter runtime |
| Voice | speak · clone_voice · transcribe | MiMo / MiniMax / Doubao + IndexTTS / GPT-SoVITS / VoxCPM / TTS-WebUI; zero-registration inline & persisted cloning; speech-to-text via one OpenAI-compatible protocol (local FunASR by default, no key needed) |
Every module has its own switch (on by default, except the STT sub-switch), but a switch alone is not enough: turning one off unregisters its tools completely, and an incomplete configuration never registers the tool at all (0 token cost) while keeping your configuration.
Why a plugin instead of a Skill or a fixed script
| Approach | Typical pain | What this plugin does |
|---|
| Long Skill text (official-API recipes) | A big instruction dump every turn — expensive tokens | Config lives only in the settings page / omni-vision.json; tool schemas inject only when a module is on |
| Fixed scripts (hand-written API calls) | Locked in a project folder; you must restate path and usage each time | Tools register into the harness — the AI finds and reuses them automatically |
| Changing config / switching models | Edit scripts or re-paste the Skill body | Change a field in Settings; it takes effect immediately |
In short: less context, ready to use, config without code.
Custom tools (video)
Today you can AI-build a custom video tool: type /build-video-tool in chat. The plugin injects a build guide (card limit, existing tools, hard constraints); the AI collects the platform details and writes a new card plus a callable tool — no hand-written script, no re-pasting API docs.

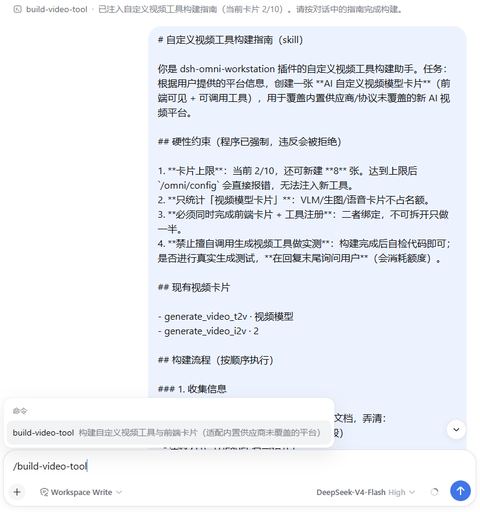

build-video-tool chat example
[!TIP]
Card limit defaults to 10; the command errors out when the cap is hit. Custom tools run on the custom-adapter runtime — see the video docs.
Settings Panel

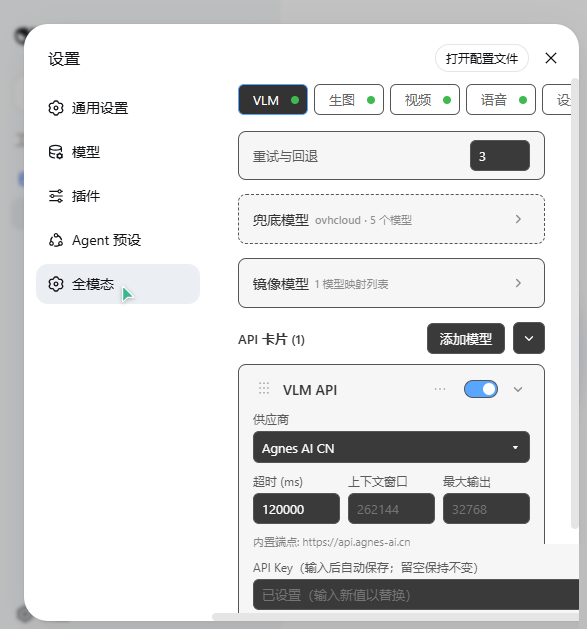

VLM tab

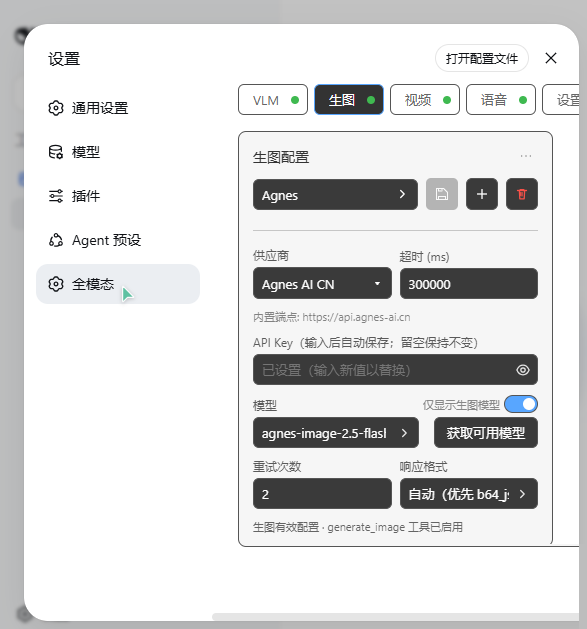

Image Gen tab

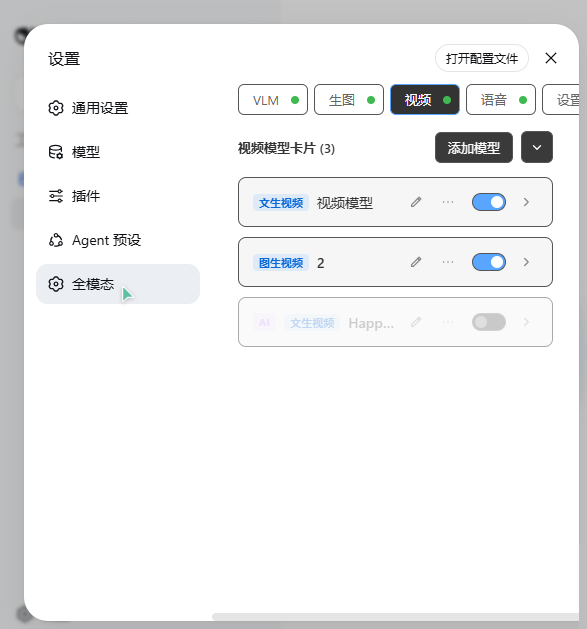

Video tab

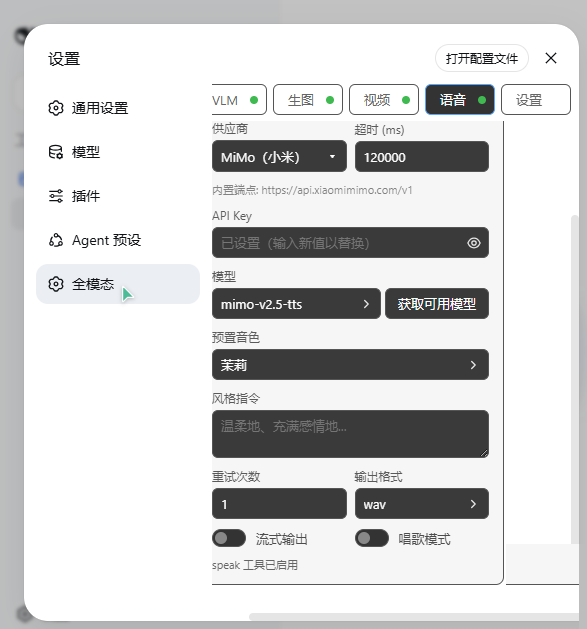

Voice tab
Settings → Omni Workstation — four tabs (VLM / Image Gen / Video / Voice) plus a global settings tab. Every edit auto-saves and takes effect immediately; no Save button.
How It Works
The package is dual-face:
- Host half (
lib/index.js) — a cordis plugin: registers tools on the global tools registry, loads and persists omni-vision.json (see Configuration), and re-syncs registration on config changes — including changes made by hand while it runs. The /omni/* web routes are registered only where a webServer exists (web / desktop compositions); CLI and headless compositions get the tools without any HTTP surface.
- Client half (
lib/client.js) — the browser module (loaded via the dsh.client entry): registers the Settings → Omni Workstation section and its locale namespace (settings.omni-workstation).
Documentation
Uninstall
dsh plugin --profile web remove dsh-omni-workstation
This removes the dependency and the bundle entry. A config at ~/.dsh/omni-vision.json survives (delete it manually if you want the API keys gone); a legacy config inside the plugin directory is removed together with the plugin.
License
MIT
