dsh-mermaid-plus
Mermaid diagrams for DeepSeek Harness — rendered on demand by default, so a transcript full of diagrams costs nothing until you ask for one.
中文说明
Screenshots
On demand, in a light theme — the source stays until you press Diagram:

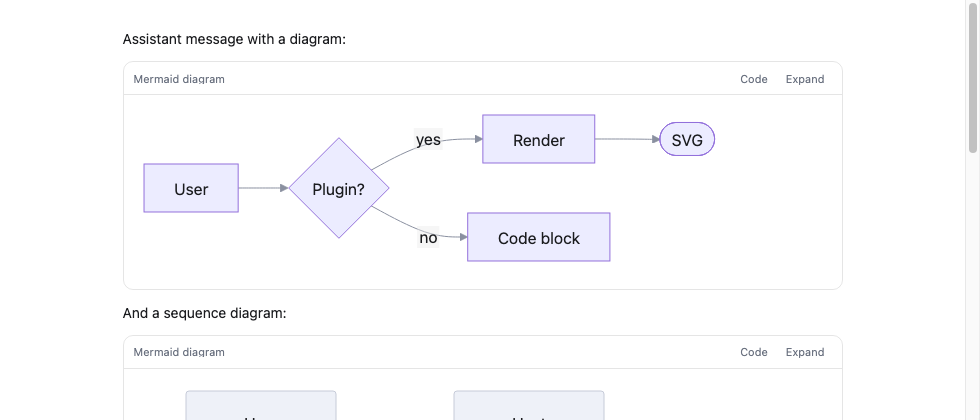

A mermaid card showing its source and a Diagram button
Fullscreen viewer, light and dark. The sheet takes the palette the diagram was rendered for, so labels stay readable in both themes:

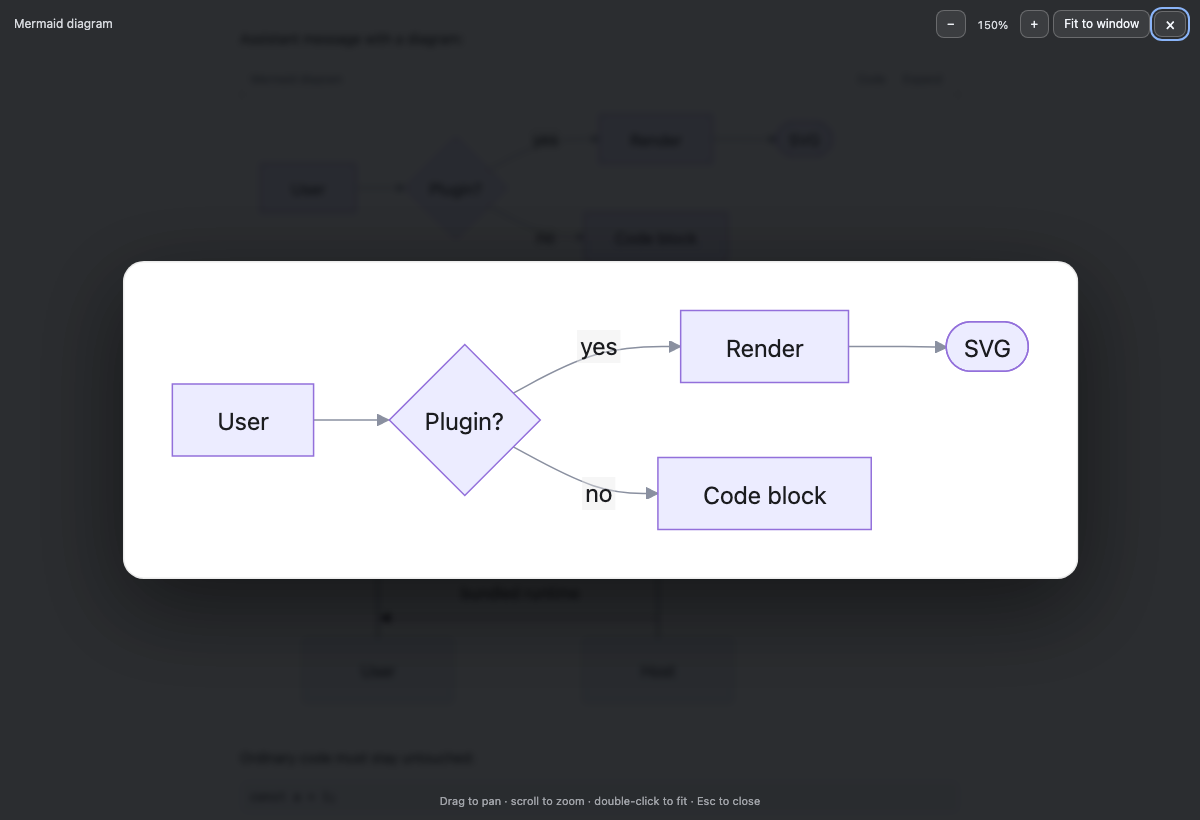

Fullscreen mermaid viewer on a light sheet

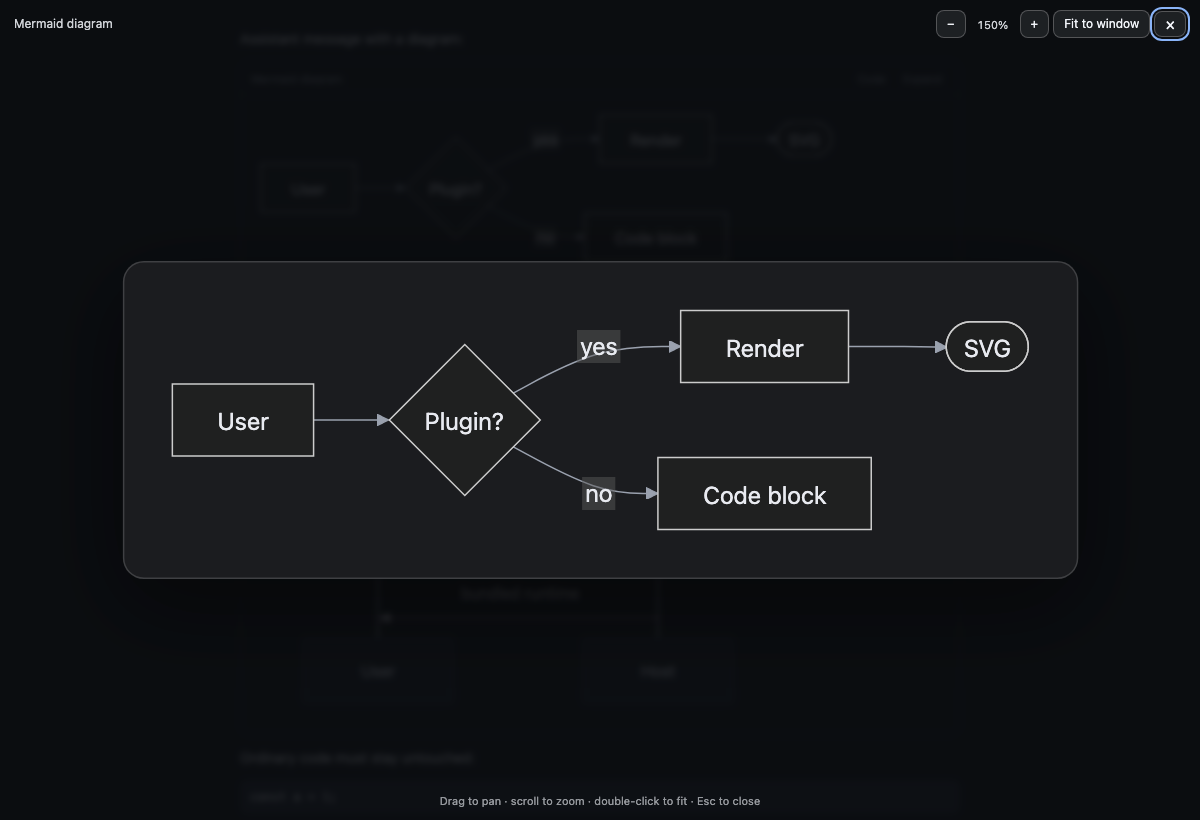

Fullscreen mermaid viewer on a dark sheet
What it does
A fenced ```mermaid block in the conversation (or in a Markdown file preview) becomes a card:
- On demand (default) — the source stays visible and a
Diagram button waits in the card header. The 3.5 MB Mermaid runtime is not downloaded and no layout work happens until you press it.
- When visible — a diagram renders the first time its card scrolls into view.
- Always — renders as soon as the block appears (the classic behaviour).
Every rendered diagram can be opened fullscreen with zoom and pan, which is the point: a wide flowchart squeezed into the message column is unreadable, while the same diagram at natural size is fine.
Features
- Renders
mermaid, mermaidjs, mmd and unlabelled blocks that start with a diagram keyword.
- Supports the diagram types the bundled Mermaid build ships:
flowchart/graph, sequenceDiagram, classDiagram, stateDiagram, erDiagram, gantt, pie, mindmap, journey, timeline, quadrantChart, xychart, gitGraph, requirementDiagram, C4, block-beta, packet-beta, sankey-beta, kanban, architecture-beta, and more.
- Theme-aware: diagram colours are derived from the app's live design tokens, and a palette change re-renders only the diagrams you are looking at.
- Streaming-safe: a block is handed to Mermaid only after its source settles, so a half-written fence never flashes a parse error.
- Cached: a rendered diagram is kept by source + palette, so switching between Code and Diagram, or reopening the viewer, costs nothing.
- Fullscreen viewer: wheel zoom, drag to pan, double-click to fit,
Esc to close, focus-trapped dialog, restores focus and page scrolling.
- Falls back to the visible source with a short error line when a diagram does not parse.
- Unmounting restores every code block to its original place in the transcript.
Install
dsh plugin --profile <profile> add dsh-mermaid-plus
Or install it from a catalog in Settings → Plugins → Marketplace (see the DSH 1024Store listing). Restart the app or reload the page afterwards.
The Mermaid runtime is bundled with the package (vendor/mermaid.esm.min.mjs, Mermaid 11.17.0) and served from the plugin's own Host route, so rendering works offline and no CDN is contacted. The fullscreen viewer and card never send diagram source anywhere.
Settings
Settings → General → Mermaid diagrams offers the three modes. The choice is stored per page origin and is namespaced by package name, so it never collides with another diagram plugin.
Compatibility
- Built and verified against DSH
0.2.0-rc.2 (Desktop 2.0.17-next).
- DSH is a developer preview: client plugin contracts, slot keys, and rendered Markdown can change between releases. This plugin decorates the rendered
<pre><code> output, which is the part most likely to shift; if a release breaks it, the cards simply stop appearing and the code blocks stay intact.
- Requires a browser or Electron renderer with
IntersectionObserver (used only in "when visible" mode) and DOMParser.
How it works
- Host half (
index.js) mounts one prefix route that serves the vendored Mermaid ES module. The route is derived from the package name (/x-dsh-mermaid-plus), so two diagram plugins can coexist.
- Browser half (
client.js) is a normal DSH client bundle: it registers a root-scoped occupant on shell.overlay (which exists before any session), plus a status row and the settings row. It never imports Harness client packages and never touches the model's context.
- Because the shipped Markdown renderer exposes no code-block extension point, the browser half decorates the rendered output: it moves a mermaid
<pre> into a card it owns, and puts it back on unmount. The original DOM node is preserved, so the transcript, copy, and select all keep working.
Troubleshooting
The browser half reports lifecycle events to its Host half, which appends them to a bounded log:
<os tmp>/dsh-mermaid-plus/report.json
It records lifecycle events only — start, apply-ok, apply-throw, adopted, render-ok, render-error, blocks-unmatched — with counts, not document text: no diagram source, no file contents, no paths beyond the plugin's own. If diagrams stop appearing, that file plus the browser console (a failed import) usually identifies the cause.
Development
The plugin has no build step for its own code: index.js and client.js run as they are. Only vendor/mermaid.esm.min.mjs is generated, and only when the bundled Mermaid version changes.
npm install # mermaid 11.17.0, esbuild, jsdom
node build.mjs # rebuild vendor/mermaid.esm.min.mjs
node test/run.mjs # host route, real cordis mount, jsdom browser-half behaviour
node test/serve-e2e.mjs # then open http://127.0.0.1:8732/ for 35 real-browser cases
node tools/doctor.mjs # activation, install mode, last browser events
node tools/dev-sync.mjs # copy this checkout over an npm-installed copy
docs/development.md covers the debug loop, what each symptom means, and the release flow.
License
MIT. Bundled Mermaid is MIT; see vendor/mermaid.LICENSE.
中文说明
把对话（以及 Markdown 预览）里的 ```mermaid 代码块渲染成图表卡片。
默认按需渲染：代码块保持源码可见，卡片右上角有一个「图形」按钮；在你点它之前，Mermaid 那个约 3.5 MB 的运行时不会被下载，也不做任何布局计算。另外两种模式是「滚动可见」（卡片进入视口才渲染）和「立即」（出现即渲染）。
渲染后的图表可以全屏放大：滚轮缩放、拖动平移、双击适应窗口、Esc 关闭；全屏只克隆已有 SVG，不会重新渲染。
其他特性：
- 配色取自应用当前的
--dsw-* 设计令牌，明暗主题各自适配；主题切换只重绘你正在看的图。
- 流式输出期间不会渲染半截源码。
- 渲染结果按「配色 + 源码」缓存，切换「代码/图形」或重开全屏都是零成本。
- 解析失败时保留源码并给一行错误提示。
- 卸载时把每个代码块放回原位，不破坏对话内容。
模式开关在 设置 → 通用 → Mermaid 图表。Mermaid 运行时随包内置（11.17.0），由插件自己的 Host 路由提供，不访问 CDN、离线可用，图表源码不会发往任何地方。
兼容 DSH 0.2.0-rc.2。DSH 处于开发者预览阶段，客户端插件契约可能变化；本插件装饰渲染后的 <pre><code>，是最容易受影响的一层——若某次升级后卡片不再出现，代码块本身仍然完好。
排障：浏览器半侧会把生命周期事件报告给 Host，写入 <系统临时目录>/dsh-mermaid-plus/report.json（start / adopted / render-ok / render-error / apply-ok / apply-throw）。
