dsh-file-explorer-preview-sequence
中文 | English
A DSH Web plugin that adds a SeqViz sequence viewer to dsh-file-explorer, overriding its plain-text previews for FASTA, GenBank, JBEI, SnapGene, and SBOL files.
Select a .gb / .fasta (or any supported format below) in the file explorer and the preview panel renders an interactive sequence viewer instead of raw text.

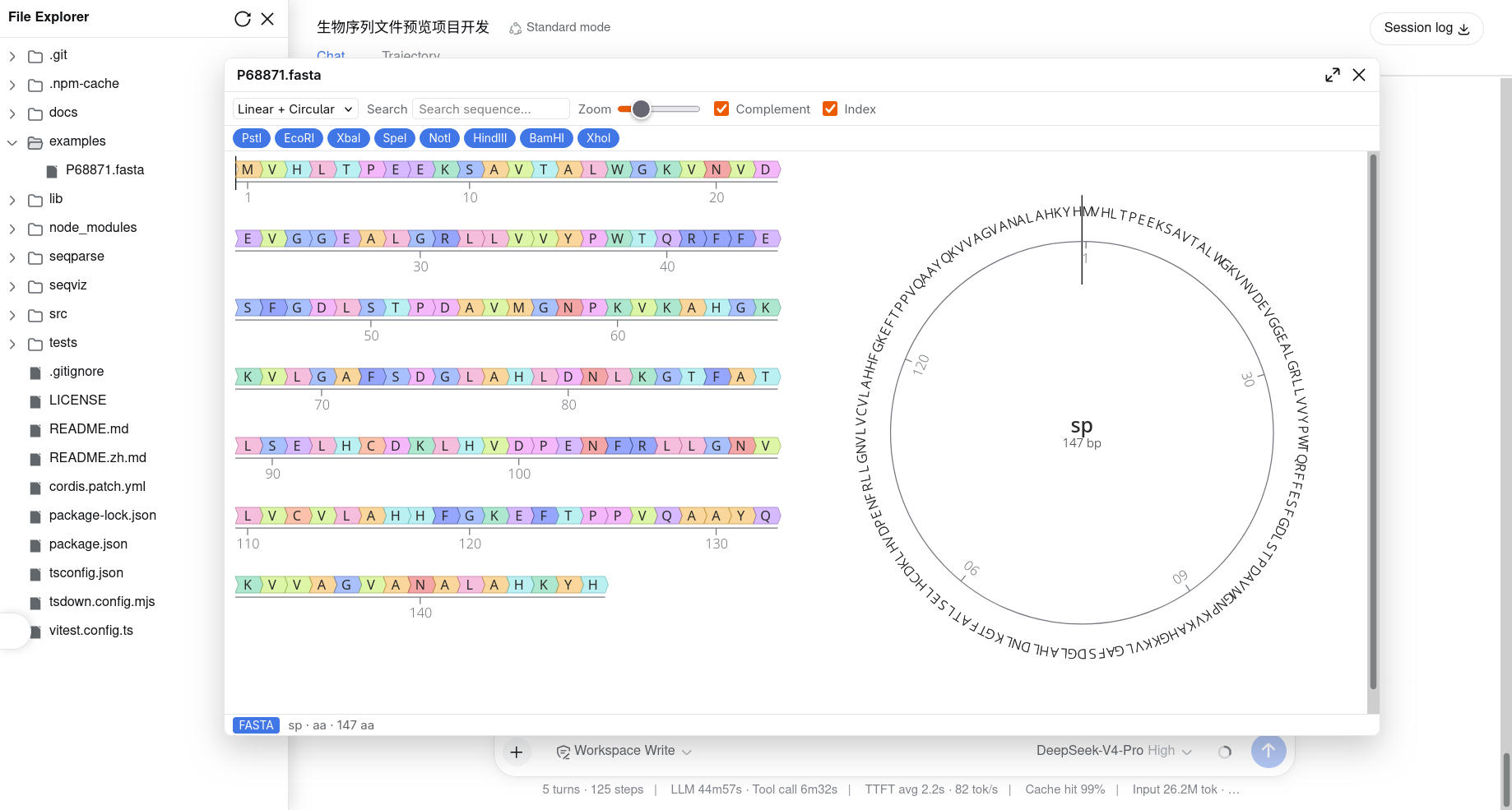

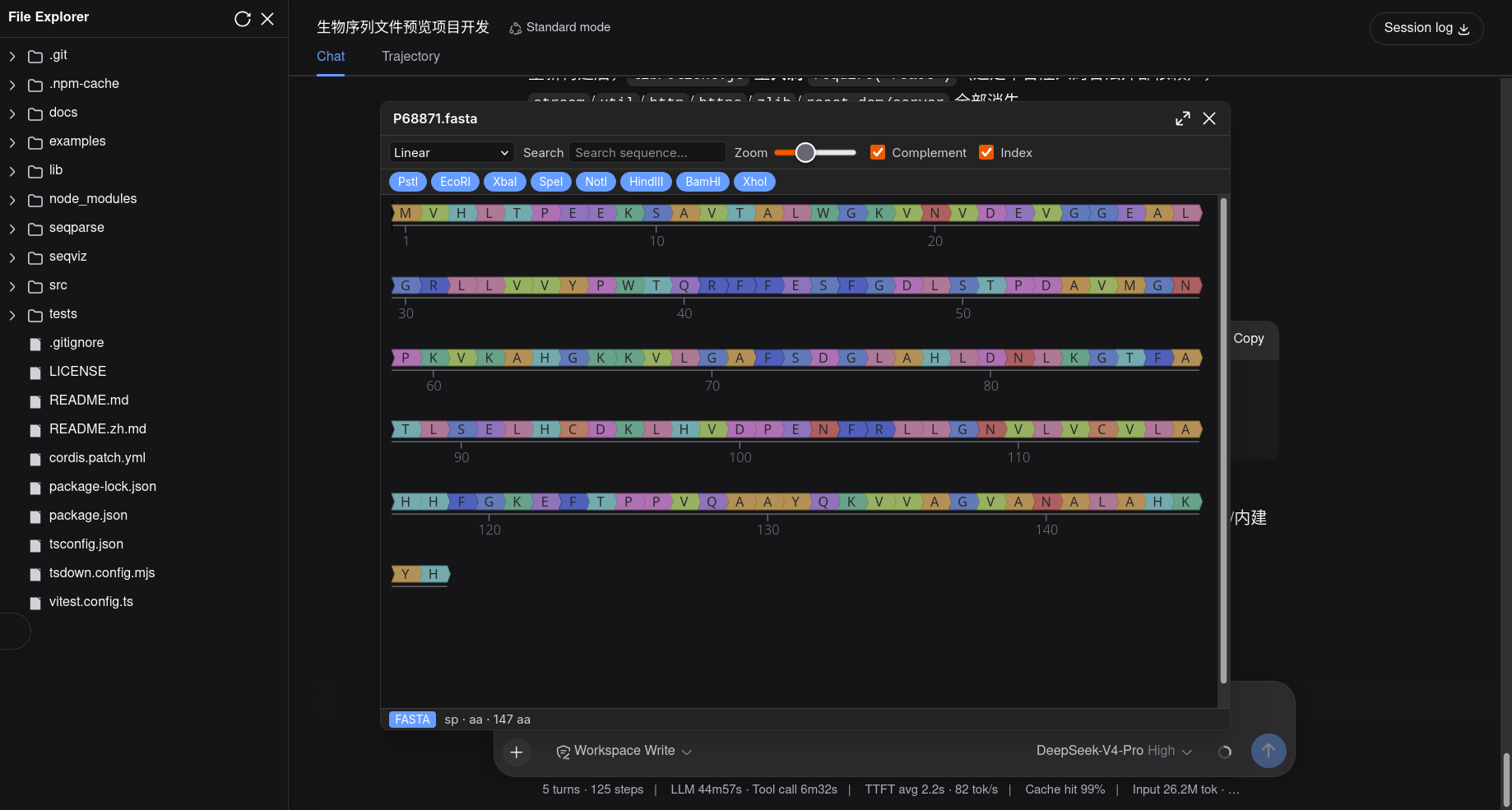

Screenshots
Features
- Interactive viewer built on
seqviz (<SeqViz>), with parsing by seqparse.
- Topologies: circular / linear / both / both-flip.
- Feature annotations with colors, search with highlight, enzyme cut sites, complement & index toggles, and linear zoom.
- Status bar with the format badge, name, sequence type, and length.
- Selectable viewer: registered as a named SeqViz viewer (dsh-file-explorer v0.9.0+), so it appears in the file row's "Open with…" menu and the preview-panel switcher — pick it explicitly for ambiguous
.xml/.seq files, or fall back to plain text.
- Localized toolbar/status copy (中文 / English).
- Dark/light aware: follows DSH's
data-ds-dark-theme.
Supported formats
| Extension | Format |
|---|
fasta fa fas fna faa ffn | FASTA |
gb gbk genbank gp | GenBank / GenPept |
dna | SnapGene |
seq | JBEI SEQ |
sbol xml | SBOL v1/v2 |
Install
From the Git repository
dsh plugin --profile web add github:wolfsonliu/dsh-file-explorer-preview-sequence
dsh web
From source
git clone https://github.com/wolfsonliu/dsh-file-explorer-preview-sequence
cd dsh-file-explorer-preview-sequence
npm install
npm run build
dsh plugin --profile web add .
dsh web
Dependencies
This plugin requires @dsh-external/dsh-file-explorer (v0.1.0+) — it injects the fileExplorer cordis service (registerViewer / registerPreview / writeFile / readRawFile). Install and enable dsh-file-explorer before this plugin:
# install the core from git
dsh plugin --profile web add github:wolfsonliu/dsh-file-explorer
# or, from source
git clone https://github.com/wolfsonliu/dsh-file-explorer
cd dsh-file-explorer
npm install && npm run build
dsh plugin --profile web add .
For local development, this repo's devDependencies resolves @dsh-external/dsh-file-explorer's ./client type definitions. Point it at your checkout or your registry's published package before npm install.
For files ≤ 2 MiB the plugin parses the text preview content directly. SnapGene .dna (binary) and files larger than 2 MiB are handled via readRawFile (available in dsh-file-explorer v0.1.0+). When readRawFile is absent (older core versions), the plugin degrades gracefully: text formats ≤ 2 MiB still preview, .dna and larger files show an unsupported status.
On dsh-file-explorer v0.9.0+ the plugin also registers via registerViewer, giving it a single named SeqViz entry in "Open with…"; on older cores it falls back to per-extension registerPreview registrations.
Limitations
- Read-only preview (no editing).
- SnapGene
.dna and > 2 MiB files require dsh-file-explorer v0.1.0+ (older versions degrade gracefully).
.xml and .seq are ambiguous extensions; files in those extensions that aren't SBOL / JBEI fall back to a plain-text view.
Development
npm run check # tsc type check
npm test # vitest unit tests
npm run build # tsc + tsdown (single-file lib/client.js bundling seqviz + seqparse)
The real SeqViz canvas cannot run under jsdom; verify it with dsh web and a sequence file in examples/.
After npm run build, hard-refresh the browser (Ctrl/Cmd+Shift+R): dsh web may keep serving a cached plugin bundle, so a soft reload can leave your latest build unused.
License
MIT
