DSH Database
Connect to MySQL, Oracle, Redis and Kafka from the right sidebar of a DeepSeek Harness conversation. Browse objects, run queries, and share a query editor with AI. SQL grid maintenance and a knowledge library support database work; bounded Kafka reads and SIT repair actions support diagnosis.
This repository was written entirely with AI.
中文 · Install · First use · Permissions · Development · Docs

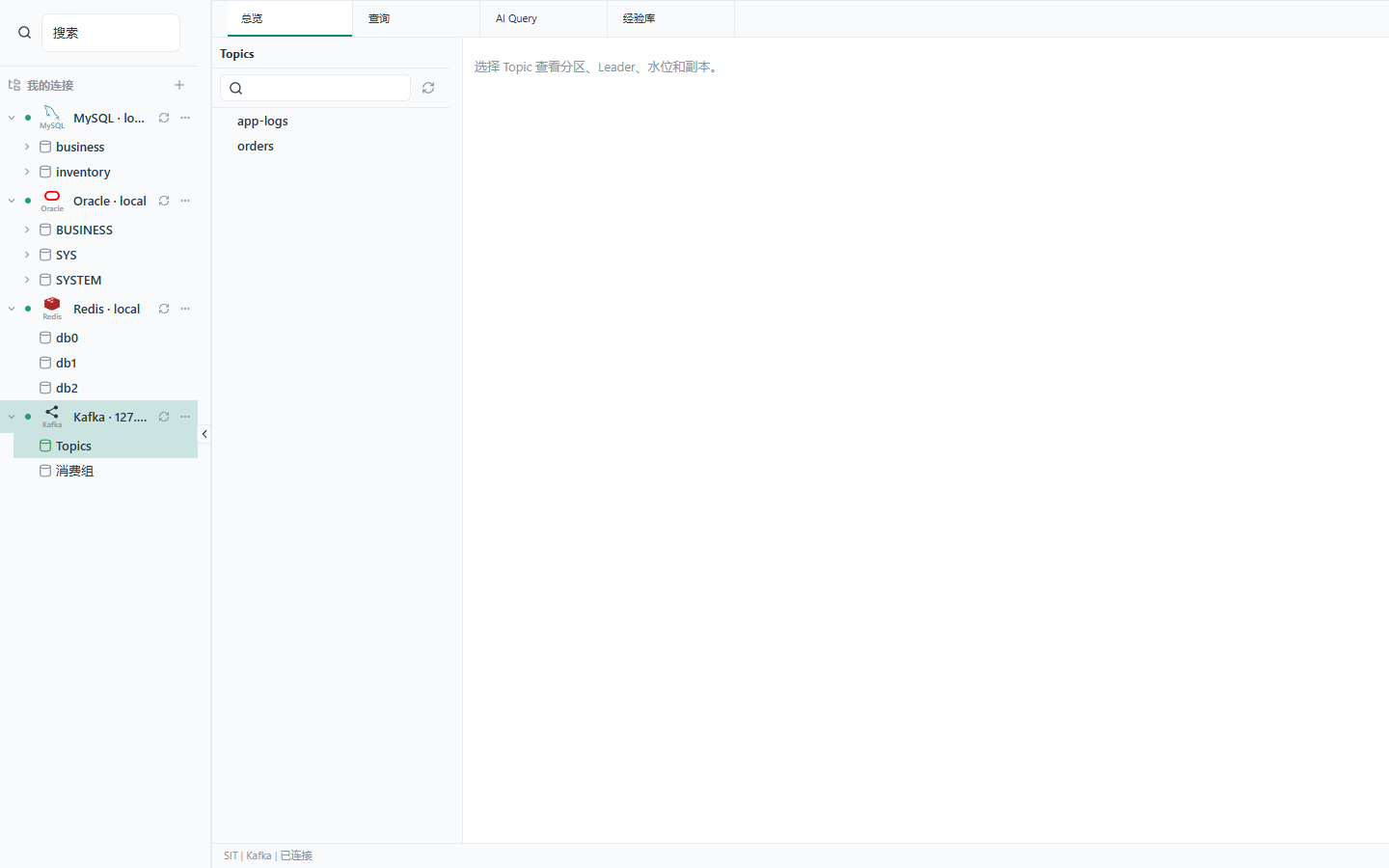

Workbench
Names in the screenshots are test data.
Features
| Source | Common tasks |
|---|
| MySQL / Oracle | Database/schema, table, column and structure browsing; query/object tabs, SQL batches, execution plans, grid maintenance and SQL knowledge analysis |
| Redis | DB/key browsing, types, TTL, values and a single-command console |
| Kafka | Topics/groups, partitions, watermarks, lag, message previews, bounded search and SIT publish/repair actions |
All sources share query, AI Query, history and knowledge entry points. Editors and results retain source-specific semantics.
Install
dsh plugin --profile web add https://github.com/zhuoxiaoshuai/dsh-database/releases/download/v0.1.0-alpha.12.15/dsh-database.tgz
Restart dsh web afterwards. Node.js 24 or newer is required. The git repository does not ship lib/, so do not install from github:.
From a clone you can also pack it locally:
npm ci --legacy-peer-deps
npm pack
dsh plugin --profile web add ./dsh-database-0.1.0-alpha.12.18.tgz
To uninstall:
dsh plugin --profile web remove dsh-database
Do not copy cordis.patch.yml into the profile by hand.
On Desktop, dsh is not on PATH. Open DSH Terminal from the tray and run:
dsh plugin --profile desktop add https://github.com/zhuoxiaoshuai/dsh-database/releases/download/v0.1.0-alpha.12.15/dsh-database.tgz
It is the same plugin on a different profile. --profile web does not install into the desktop app.
The download URL above targets the alpha.12.15 release package. The source currently declares alpha.12.18; use the filename printed by npm pack, which builds automatically. Check acceptance evidence separately for the release package and local source.
First use
- Install, restart the chosen profile, and open the Database tab in the conversation's right sidebar.
- Click ＋ beside 我的连接, select a source, and enter its address, credentials and database/Service Name/DB or brokers. Choose SIT, UAT or PVT.
- Optionally click 测试连接 to check the settings, then 连接. Testing alone does not add a saved connection.
- Select a database/schema for SQL. Run
SELECT 1; for MySQL, SELECT 1 FROM DUAL; for Oracle, PING for Redis, or TOPICS for Kafka in the query page.
- For AI collaboration, open AI Query and describe the connection, target and task in the conversation, such as “Read the current SQL and explain what it does.” Check the target and permissions before execution.
AI collaboration and permissions
Typing in AI Query or clicking 接管 takes control of the document. AI cannot overwrite the text while you control it. Finish editing and click 归还 AI to let the model continue. The ordinary query page and AI Query are separate entry points.
| Operation | SIT | UAT / PVT |
|---|
| Human SQL, ordinary or taken-over coedit | Reads and DML; auto-commit within account privileges | Reads and DML; auto-commit within account privileges |
| AI SQL | Reads and DML | Read-only |
| Grid edits / structured DDL | Human preview and confirmation | Disabled |
| Human Redis console | Subject to ACL and command validation | Subject to ACL and command validation |
| AI Redis | Structured reads and redis_execute | Structured reads; redis_execute disabled |
| Kafka reads | Allowed | Allowed |
| Kafka writes | Human confirmation or AI tools; broker permissions still apply | Disabled |
UAT/PVT do not prevent human SQL or human Redis writes. Use a read-only database account or Redis ACL to prohibit writes. AI SQL results on SIT return unredacted cells to the model; ordinary human queries do not automatically send their results to it.
Imported dev/test labels map to SIT, staging to UAT, prod to PVT, and unknown labels to UAT. Passwords stay in Host memory by default. On Windows, optional 记住密码 encrypts them using current-user DPAPI. See SECURITY.md.
An interrupted write or a lost acknowledgement may be reported as unknown: the change may already exist. Check the actual target before deciding what to do next. Unknown writes are never automatically replayed. Reconnecting invalidates old requests and execution targets.
MySQL

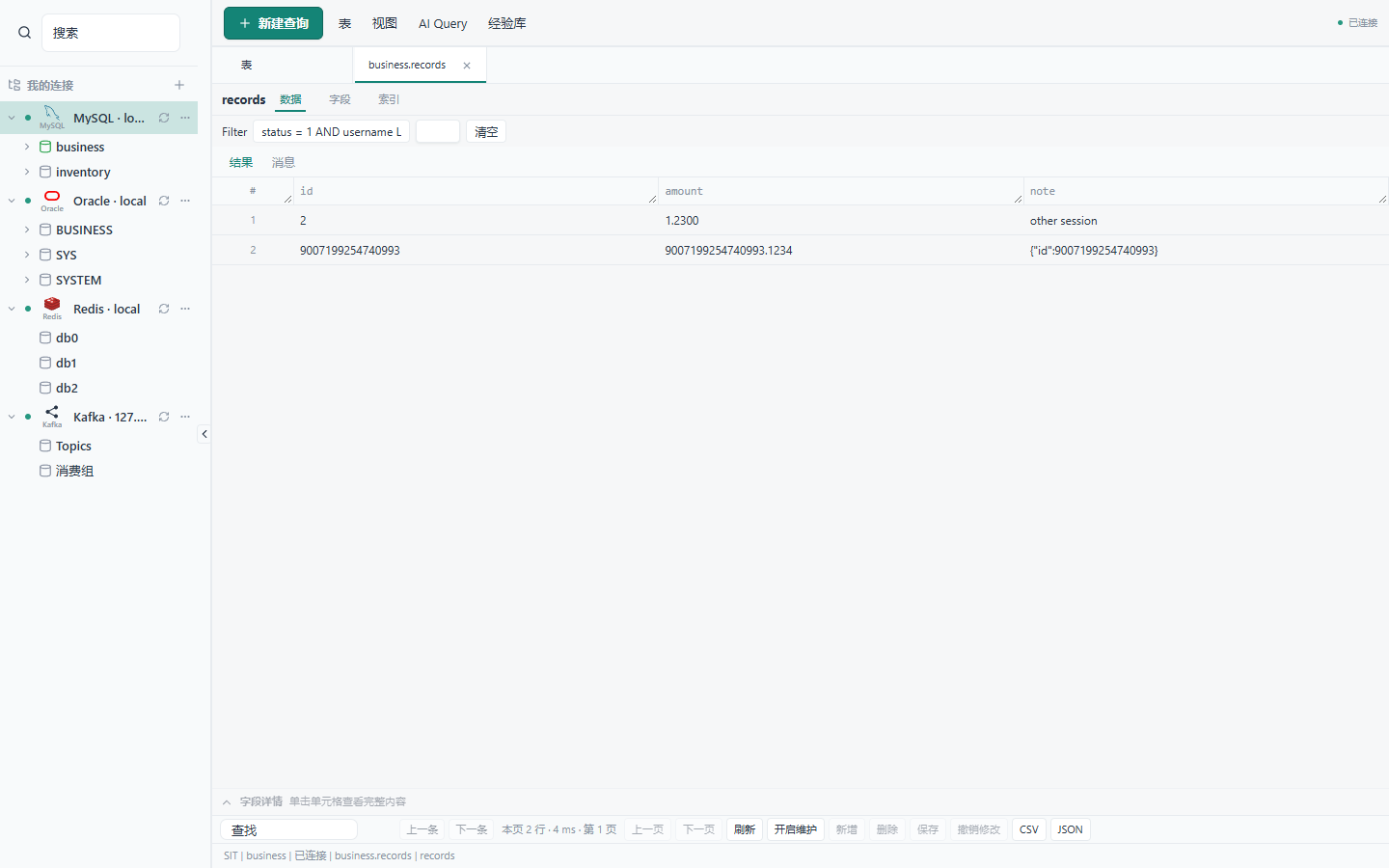

MySQL results
The driver is mysql2, default port 3306. The tree is database → table → column. Identifiers use backticks; paging uses LIMIT / OFFSET. mysql, information_schema, performance_schema, and sys stay in the tree.
SELECT 9007199254740993 AS id;
When the account can read them, the catalog shows columns, indexes, constraints, and SHOW CREATE. Otherwise it explains why, instead of failing silently.
Filter, sort, and paging run on the server. The default is 100 rows; the cap is 500 rows or 1 MiB. Cancelling a query does not drop the login.
Grid edits use parameterized statements: preview, confirm once, and match the original primary-key row. A conflict rolls back and keeps the draft.
DDL allows at most 20 steps. Approval lasts 5 minutes. Destructive steps ask you to type the table name. The run stops on the first error; there is no all-or-nothing DDL rollback.
database_execute_sql runs up to 8 statements, 100 rows each. It is read-only on UAT/PVT and permits DML on SIT. The batch is checked before dispatch, runs in order, and stops at the first error. Earlier commits are not rolled back when a later statement fails.
BIGINT is returned as a string. Binary cells show readable UTF-8 text or hexadecimal bytes (BIT uses binary digits); binary columns stay read-only in the grid.
Oracle

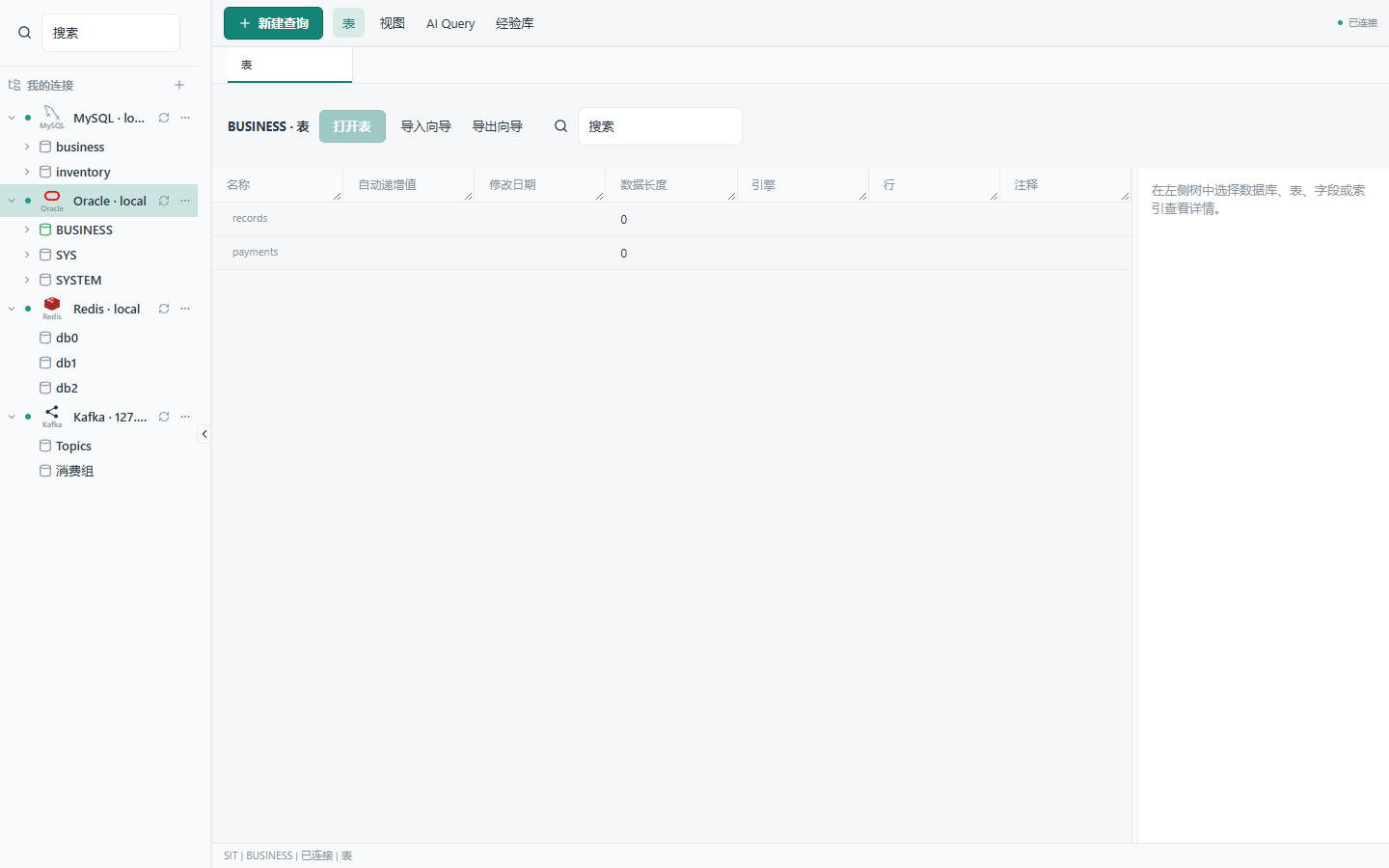

Oracle catalog
The SQL page is the same as MySQL. Objects are organized by schema. Unquoted SQL identifiers are folded to uppercase; double-quoted identifiers preserve case. If a schema named after the username exists, that is the default. Identifiers are quoted; paging uses OFFSET … ROWS FETCH FIRST … ROWS ONLY; plans use EXPLAIN PLAN FOR. q-quote works; # comments do not.
The driver is oracledb Thin, default port 1521. The form supports Service Name and SID; live SID acceptance remains NOT_RUN. NUMBER and timestamps are fetched as STRING. Views and synonyms expose metadata only. A query that includes a LOB column fails.
Redis

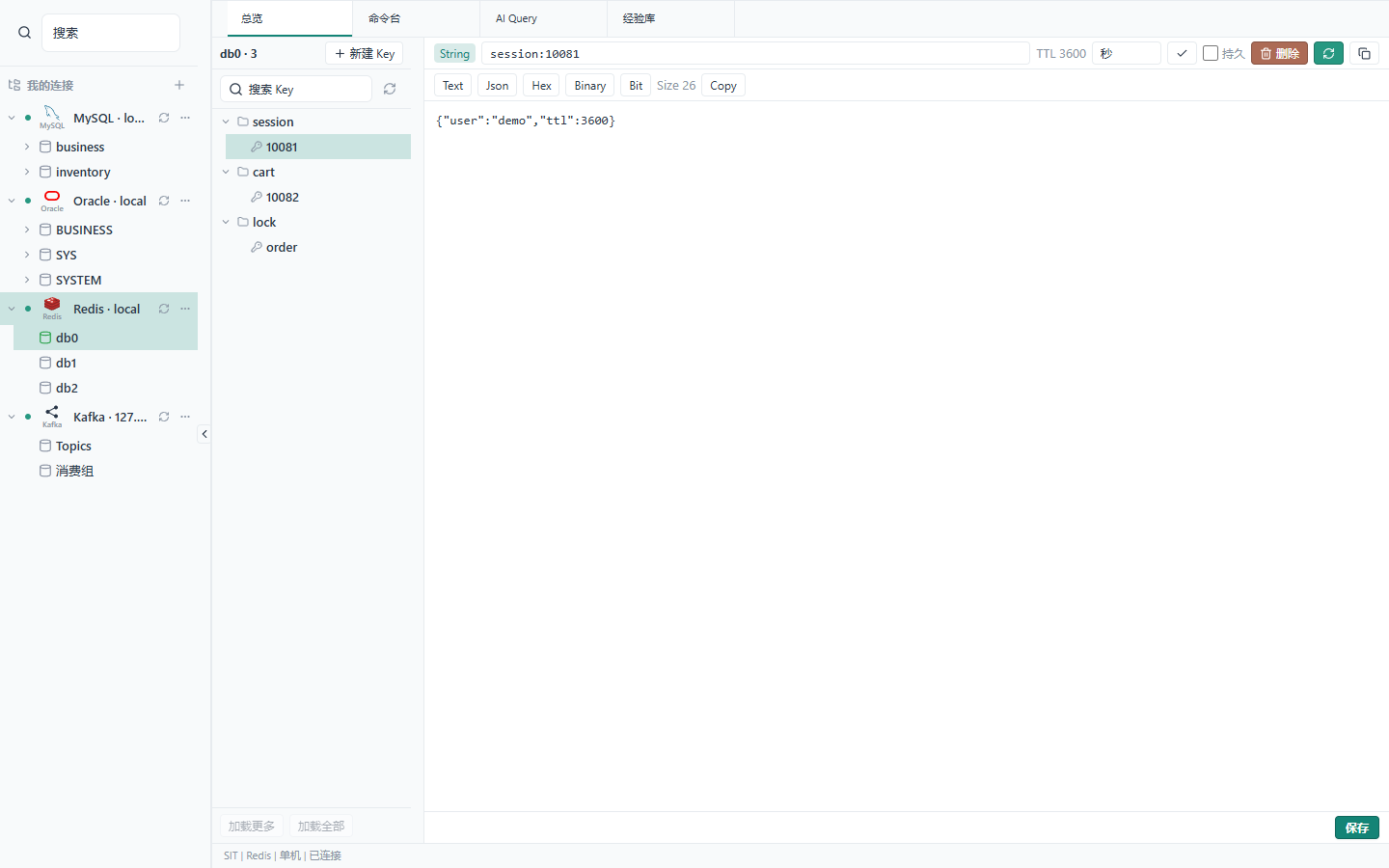

Redis keys
Redis 7.2 or newer is required. The tree is DB → keys. SCAN paging can return empty pages or duplicates; the UI says when the cursor is unfinished.
PING
Standalone, one sentinel, or one cluster seed are supported. ACL, TLS, and a custom CA are optional. Sentinel takes a single address; the same user and password are used for sentinel and Redis. In cluster mode the host is a seed and DB must be 0.
The key browser and the command console use different connections. The console runs one CLI-quoted command and then closes. SELECT or MULTI in the console does not change the tree.
The human command console can execute commands on SIT, UAT and PVT. AI redis_execute is SIT-only; other environments use structured read tools. DSH_REDIS_COMMAND_BLACKLIST is empty unless you set it; Redis ACL still applies.
Kafka

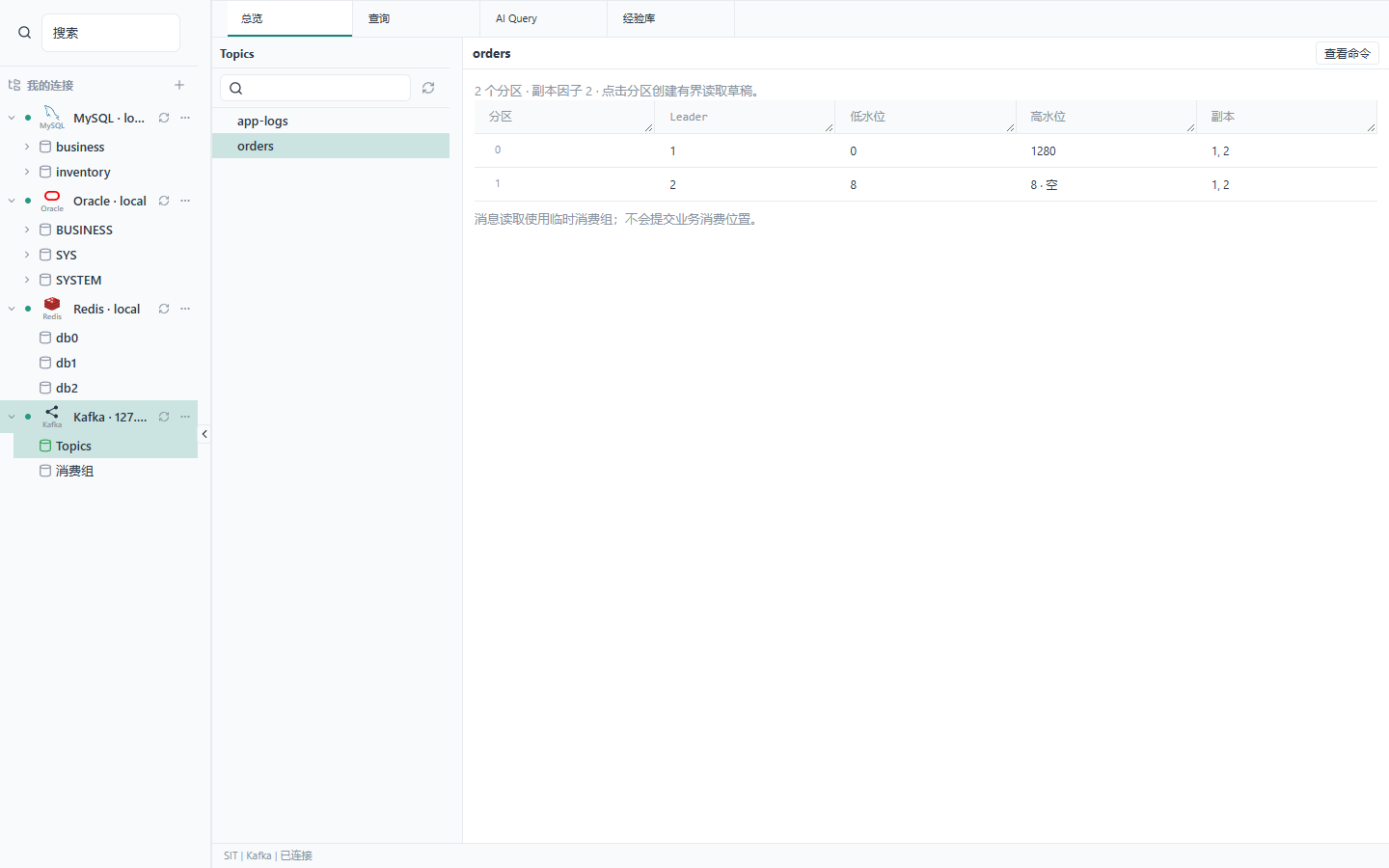

Kafka topic
Search and page topics/groups, inspect partitions, lag and settings, locate offsets by time, and search bounded message ranges. PEEK uses a temporary group and does not commit business consumer offsets.
TOPICS SEARCH "orders"
GROUP "billing" TOPIC "orders"
PEEK "orders" PARTITION 0 FROM LATEST LIMIT 20
Replace the topic and group with actual names. SIT permits single/limited batch publishing, replaying complete messages, compacted-topic tombstones, dsh-test- topic creation and offset changes for groups without running members. Existing messages cannot be modified in place.
Authentication supports none, TLS with CA, PLAIN and SCRAM-SHA-256/512. Kerberos, OAuth and client certificates are not supported. See the Kafka guide for full commands, byte/result limits, confirmation and unknown outcomes.
AI tools
database_status without a topic returns the live connections and the next call's connectionId and generation. A topic loads one usage section. A missing connection or a stale generation returns the current connection list. When that source has exactly one live connection, connectionId and generation can be omitted.
kafka_scan and kafka_set_group_offsets take spec as an object, kafka_produce takes headers as an object, and kafka_produce_batch takes messages as an array. kafka_peek from is BEGINNING, LATEST, or OFFSET.
Expand tool reference
| Tool | Notes |
|---|
database_status | Live connections and the next call's arguments. A topic returns only that usage section |
database_catalog | schemas / tables / table. Do not query information_schema |
database_execute_sql | action=read returns the current AI Query text. With sql, it executes; read-only on UAT/PVT, writes allowed on SIT |
database_templates | Save and search text. Does not execute |
database_read_collab | Open query tabs |
database_import_connections | Register hosts. No password |
redis_status redis_keys redis_value | SCAN, type, TTL, value |
redis_execute | SIT only, one command |
kafka_status kafka_topics kafka_describe | Topics, partitions, watermarks |
kafka_peek | Peek one partition. from is BEGINNING, LATEST, or OFFSET. Refused after editor takeover |
kafka_groups kafka_group | Search/page groups; inspect state and members |
kafka_group_topics kafka_group_topic | Page associated topics; inspect committed positions and Lag |
kafka_topic_config kafka_time_offsets kafka_scan | Topic settings, time-based offsets, bounded cross-partition search. kafka_scan spec is an object |
kafka_produce kafka_produce_batch kafka_tombstone | SIT single/batch publish and compacted-topic tombstone. headers is an object; messages is an array |
kafka_create_topic |
Troubleshooting
| Problem | What to do |
|---|
| Plugin installed but no tab | Restart the profile you installed into, then refresh; avoid duplicate manual cordis.patch.yml entries |
dsh missing on Desktop | Open DSH Terminal from the tray |
/plugins/database/connections clash | Check whether an older remote-exec still provides the database UI |
| AI cannot update or run current text | Check document control; finish saving and return control to AI. Refresh connection status after reconnecting |
| Oracle query includes a LOB | Select ordinary columns; on-demand LOB viewing is not connected yet |
Redis console SELECT leaves the tree unchanged | Choose the DB in the tree; each console command uses a separate connection |
| Write result is unknown | Read the target to verify the change before resubmitting |
| Query times out | SQL driver query timeout is 25 seconds; Host query deadline is 32 seconds. Maintenance and source operations have separate limits; see timeout configuration |
Development
Use Node.js 24 or newer. Install dependencies and check from the repository directory:
npm ci --legacy-peer-deps
npm run check
npm run test:package-closure
check runs Host/client type checking, unit tests and builds. Package closure separately checks shipped runtime files. Run browser and live-source acceptance separately:
| Command | Requirements and scope |
|---|
npm run test:sql-workspace | Microsoft Edge; controlled bridges for MySQL/Oracle client acceptance |
npm run test:workspace-races | Microsoft Edge; coedit save/control/target races |
npm run test:execution-boundary | Microsoft Edge; controlled execution-boundary and grid-value checks |
npm run test:mysql / test:oracle | Docker Linux Engine; owned temporary databases with cleanup, not Oracle 19c/SID acceptance |
npm run test:redis | Docker and OpenSSL; temporary plain/TLS Redis acceptance. Set DSH_OPENSSL if needed |
npm run test:kafka | Docker and OpenSSL; isolated broker acceptance |
npm run test:host | Harness installation directory (DSH_DESKTOP_APP) and Chrome (or a supported browser via DSH_TEST_BROWSER); installs and starts a Web host in a disposable profile |
Windows PowerShell example:
$env:DSH_DESKTOP_APP = 'C:\path\to\DeepSeek Harness'
npm run test:host
# Optional live-source checks; database fixtures require Docker
$env:DSH_TEST_DATABASES = '1'
$env:DSH_TEST_REDIS = '1'
$env:DSH_TEST_KAFKA = '1'
npm run test:host
In a POSIX shell, use DSH_DESKTOP_APP="/path/to/install" npm run test:host. Reports are written under artifacts/. Controlled bridges, isolated live sources and installed-host acceptance are recorded separately. test:host does not establish live Desktop UI or model-call acceptance.
Compatibility and acceptance records
Current drivers: mysql2 3.24.4, oracledb 7.0.1, redis 6.2.1 and kafkajs 2.2.4. Historical validation includes Harness 0.1.2-rc.1, 0.1.7-rc.2 and 0.2.0-rc.2, MySQL 8.4/8.0.32, Oracle Free 23/19c Service, Redis 8.10.2 and test Kafka instances. These records do not automatically cover later source changes or every authentication combination.
These are dated records. This README update did not rerun database, Desktop or model acceptance. Establish the validation status of current source using its build and actual reports.
Documentation and feedback
License
MIT
