dsh-image-preview
中文版
Image preview for the dsh session interface. dsh 0.2.x already renders read_image as a collapsed image card and assistant final-output images as an official gallery. This plugin takes over all of them: read_image rows get a thumbnail visible by default, and images the user sends, plus images in the assistant's final answer — including image files in present delivery cards — use the same full-size lightbox with cross-image navigation, zoom, rotate, pan, download, and file actions (open with default/associated app, open in sidebar, reveal in folder).
Features
| |
|---|
| 🖼️ Visible thumbnail | read_image results render as a rounded ~240px thumbnail instead of a collapsed card, so the image is visible without expanding the row |
| 🔍 Click for full size | Click the thumbnail to open the original image in a lightbox — dismiss with Esc, clicking the backdrop, or the close button; focus is restored to the trigger on close |
| ↔️ Cross-row navigation | Arrow buttons / ← → keys cycle through every image loaded in the session (counter shows 3 / 4) — dsh's built-in lightbox only ever shows a single image |
| 🔎 Zoom, rotate, pan | Toolbar with zoom out / zoom in / rotate left / rotate right / download. Scroll wheel zooms, drag pans while magnified, and + - 0 , . are keyboard shortcuts. Zoom is clamped to 25%–800% and resets when you switch images |
| ⬇️ Download | Saves the original bytes under the attachment's own filename through a same-origin <a download> (works with the blob: URLs the host loader returns) |
| 🔐 Uses the host's image pipeline | Image bytes are resolved through the session-authorized loadImage loader dsh injects into the slot owner — no hand-rolled attachment RPC |
| 🧾 Final-output images | Assistant image blocks (conversation.chat.message.images) and Markdown images in the final answer open the plugin lightbox too |
| 👤 User-sent images | Images in the user's own message (conversation.chat.user.images) are taken over too and open the plugin lightbox |
| 📂 Presented image cards | Image files in present delivery cards (e.g. preview_hero.png) open the plugin lightbox directly instead of the sidebar first; STL / Markdown cards keep the official preview |
| 🧩 0.2.x-aware | Shadows only the row renderer; the official tool.call.images child slot stays declared and untouched |
| ⏱️ Complete states | Running (row.running), failed with retry (image.loadFailed), and loading (image.loading) states are all covered |
| 🌗 Theme aware | All colors reference dsh theme tokens (--dsw-*), so the preview follows the light/dark theme automatically |
Lightbox controls
| Action | Control | Shortcut |
|---|
| Zoom in / out | toolbar + / −, or scroll wheel | + / - |
| Reset view | click the zoom percentage | 0 |
| Rotate | toolbar ↺ / ↻ | , / . |
| Pan | drag (only while magnified) | — |
| Download | toolbar ⤓ | — |
| More actions | toolbar ⋯ | — |
| Previous / next image | side arrows | ← / → |
| Close | ✕, backdrop, or Esc | Esc |
Compatibility
Built and verified against dsh 0.2.1-rc.2. The browser contract is unchanged from 0.1.5-rc.2; the plugin is still a pure client bundle with no host-side behavior. The manifest declares engines.dsh: >=0.1.5-rc.2 <0.3.0-0 so dsh can reject it outside that range.
What changed in dsh 0.2.x. dsh now ships its own read_image toolview, image card, and tool.call.images child slot filled by the official MessageImages gallery. The official row is collapsed by default, and its lightbox shows one image at a time. This plugin still shadows the whole row so thumbnails stay visible, and keeps the extra lightbox features. It deliberately does not declare tool.call.images as a child: the official entry already declares that slot, and a second declaration would throw slot ... is already declared.
Image positions include the user message slot conversation.chat.user.images (official MessageImages at priority 100, shadowed at -1) and the assistant final-output paths. Assistant image blocks go through the conversation.chat.message.images single slot, which this plugin shadows at priority: -1 (the official MessageImages uses priority: 100). Markdown images () are rendered by a private button/lightbox inside MarkdownText, not a slot, so the plugin intercepts clicks in the capture phase and opens its own lightbox. present delivery cards are not a slot either: the whole-card preview button's title is the Host absolute path, and the plugin intercepts only image extensions; STL / Markdown cards still open the official sidebar preview. If the host does not expose a ReactDOM render root, all interception backs off and leaves the official behavior intact.
read_image submits PNG / JPEG / WebP / GIF only, so those are the formats the plugin can display; earlier claims about SVG / BMP / ICO were incorrect.
Why the low priority matters. tool.call.toolview is a keyed slot, and its registry rejects a second registration for the same key at the same priority:
keyed slot "tool.call.toolview" already has an entry for key "read_image"
at priority 0 — register at a different priority to shadow it (lowest renders)
So this plugin registers at priority: -1 to take over the shipped row. Without that, apply() throws during client boot and not a single row renders — which is exactly what happened before this fix.
Preview

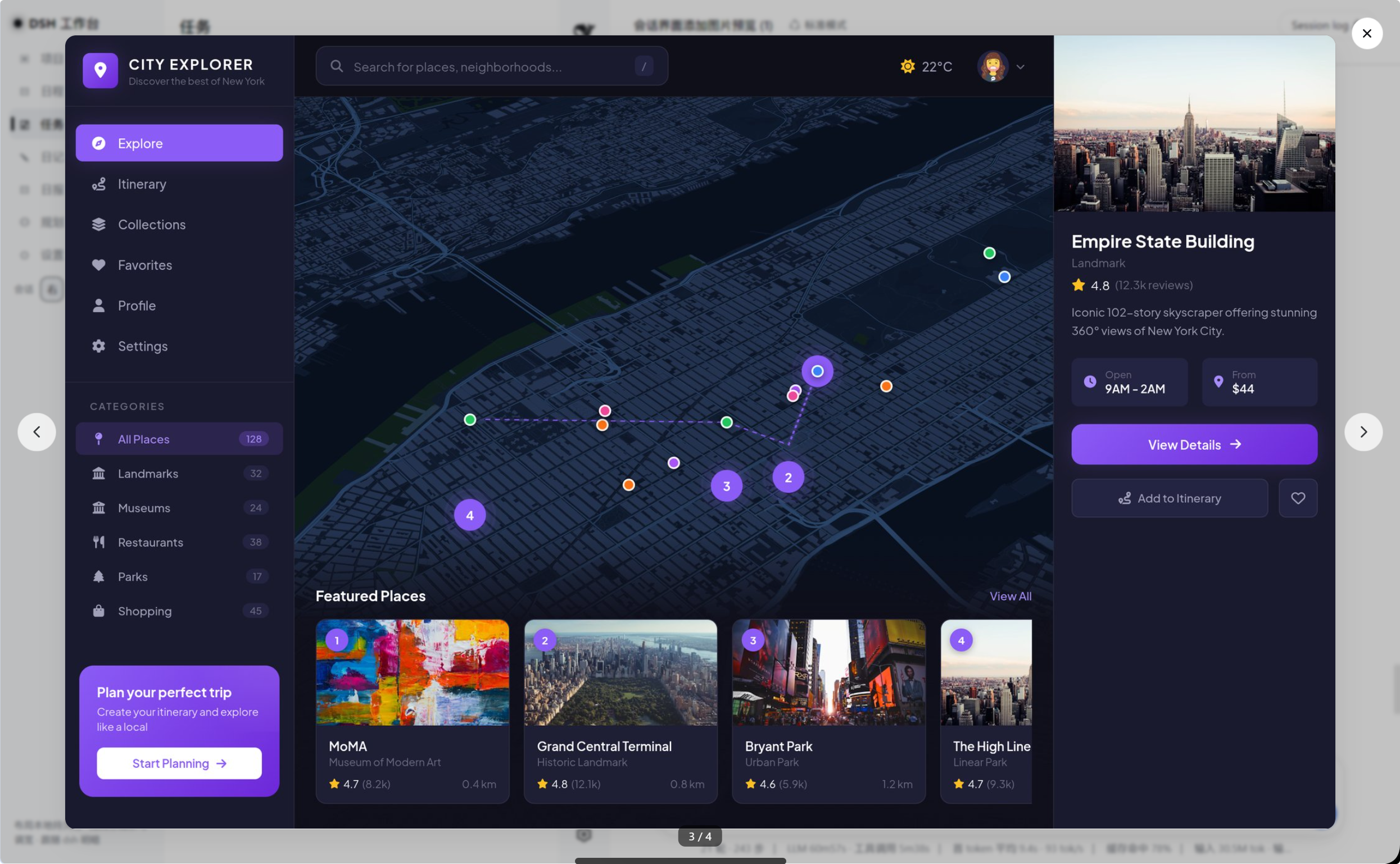

Plugin lightbox — a real session screenshot: click an image to open the plugin lightbox with cross-image navigation, zoom, rotate, pan, and download:
Plugin lightbox
File actions for presented images — a real session screenshot: the ⋯ menu at the right of the toolbar offers the default app / associated apps / open in sidebar / reveal in folder:
File actions
Screenshots by Alger.
How it works
dsh-image-preview is a pure client-side plugin. It registers a keyed slot on tool.call.toolview with key read_image at priority: -1 and takes over rendering of the read_image tool row:
agent runs read_image
└─ tool result content: [{ text envelope }, { type: "image", attachment }]
└─ tool-call node → tool.call.toolview (key = read_image, priority -1 shadows the shipped row)
└─ ReadImageRow: thumbnail + click to open the cross-row Lightbox
sessionId and t are injected by the session-scoped slot's standard kit (dsh-client-ui-session / the locale seat).loadImage is the session-authorized loader dsh passes in the slot owner props (MessageImageLoader, i.e. uiConversation.imageUrl(sessionId, attachment), cached per session). The plugin never touches /api/session.attachment directly.- Attachment metadata (
attachmentId, mediaType, width, height) comes straight from the tool result block.
- The lightbox looks like dsh's built-in
ImageLightbox (portal to body, backdrop mask, ESC/backdrop/close dismissal, focus restore) but adds cross-image navigation plus zoom / rotate / pan / download.
- Zoom and rotation are a single CSS
transform on the <img> (no re-encoding); downloads hand the loader's blob: URL straight to <a download>, so no bytes are copied or re-fetched.
- The image registry is bucketed by
sessionId, so two sessions open at once never cross-navigate into each other's images.
Final-output images:
user message → conversation.chat.user.images (single slot, priority -1 shadows MessageImages)
assistant content
├─ image block → conversation.chat.message.images (single slot, priority -1 shadows MessageImages)
│ └─ MessageImagesRow: thumbnail + click to open the same Lightbox
├─ Markdown  → private MarkdownText button
│ └─ document click capture → plugin Lightbox (standalone React root)
└─ present delivery image → [data-presented-file] > button[title] (Host absolute path)
└─ document click capture → plugin Lightbox (standalone React root)
The ⋯ menu at the right edge of the lightbox toolbar offers local-file actions for images with a host path: open with the default application, choose from associated applications, open in the right sidebar, or reveal in the file manager. It uses dsh's Session Remote (openWorkspacePath / workspacePathApplications) and sidebarRight.openResource; the Host revalidates the path before launching anything.
Installation
dsh 0.2.x uses separate profiles for the desktop app and the CLI web surface. Pick the one you actually run:
- Desktop app:
~/.dsh/profiles/desktop (reserved for the app).
- CLI web:
~/.dsh/profiles/web.
Desktop app
Open the in-app Plugins page (sidebar) and install algerkong/dsh-image-preview from GitHub, then enable the bundle and restart the app. Alternatively, fully quit the app first (the profile is locked while it runs) and use the CLI:
dsh plugin --profile desktop add 'github:algerkong/dsh-image-preview'
add only installs the dependency. Enable the bundle in the Plugins page, or append "@alger-ai/dsh-image-preview" to dsh.profile.bundles in ~/.dsh/profiles/desktop/package.json, then restart the app and refresh.
CLI web
dsh plugin --profile web add 'github:algerkong/dsh-image-preview'
Then append the package to the existing dsh.profile.bundles array in ~/.dsh/profiles/web/package.json (keep the bundles already listed):
{
"dsh": {
"profile": {
"bundles": [
"@deepseek-ai/dsh-base",
"@deepseek-ai/dsh-web-app",
"@alger-ai/dsh-image-preview"
]
}
}
}
Run pnpm install in the profile, restart dsh web, and refresh the page.
Manual install
Add the dependency to the profile's package.json:
{
"dependencies": {
"@alger-ai/dsh-image-preview": "github:algerkong/dsh-image-preview"
}
}
Then add "@alger-ai/dsh-image-preview" to dsh.profile.bundles, run pnpm install, and restart the surface.
Local development
Link the package directly:
cd ~/.dsh/profiles/desktop # or ~/.dsh/profiles/web
pnpm add link:/path/to/dsh-image-preview
Add "@alger-ai/dsh-image-preview" to dsh.profile.bundles, restart, and refresh.
Usage

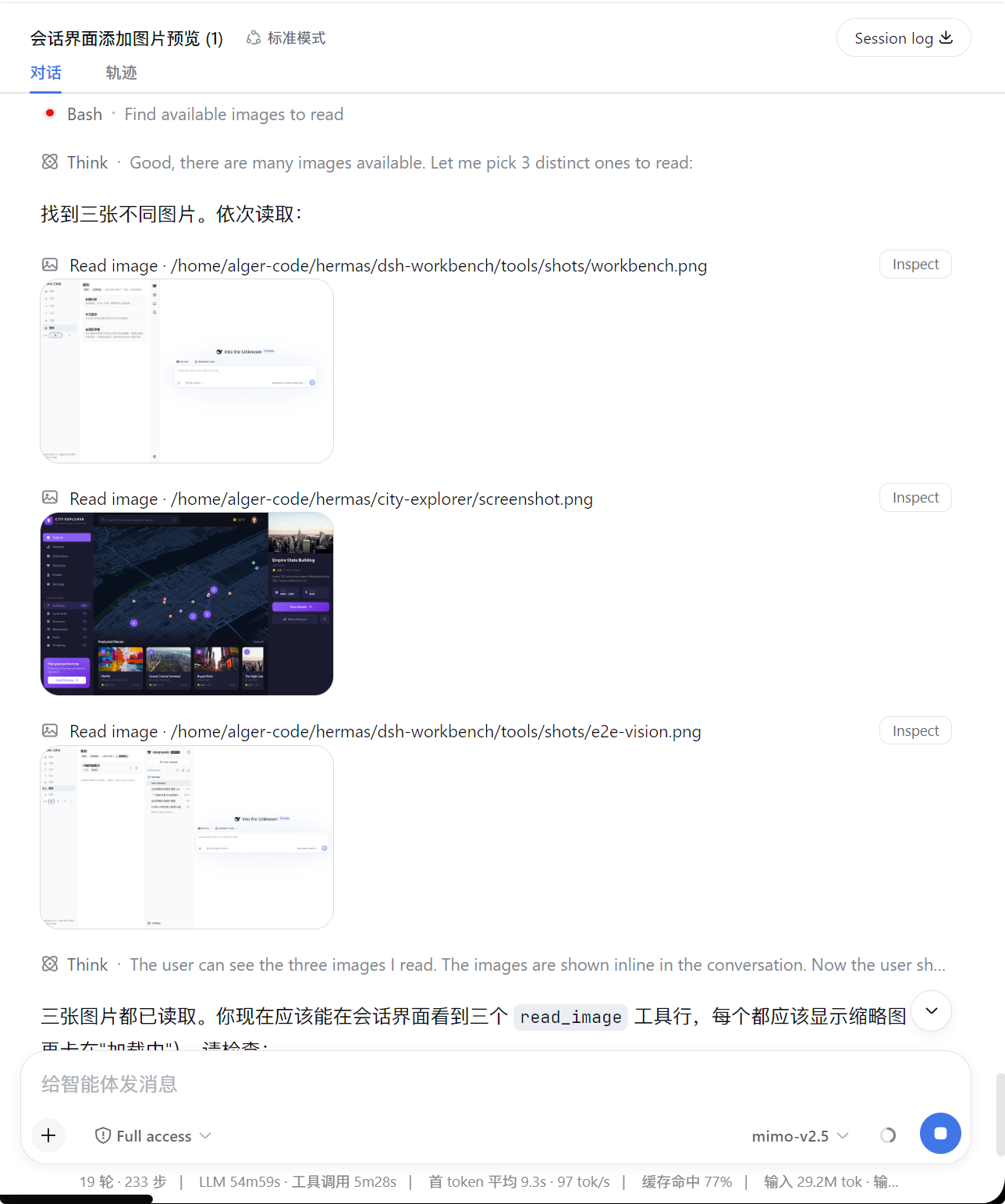

- Start a session and let the agent call
read_image on an image file.
- The tool row shows a small thumbnail by default (the official row would stay collapsed).
- Click the thumbnail to inspect the full-size original in the lightbox.
Development
pnpm install
pnpm test # node verify.mjs
verify.mjs checks three layers: the __ModuleLoader__.load registration shape, the keyed-slot takeover contract (it reproduces dsh 0.2.1-rc.2's keyed + children declaration rules and fails if the plugin forgets priority: -1 or re-declares tool.call.images), and an actual render pass over the component (loadImage path, thumbnail, lightbox, Esc, multi-image grid and navigation, plus the zoom / rotate / download toolbar).
The self-check resolves React from the repo devDependency, then from DSH_REACT_PATH or a DSH profile. Missing React is an error; set DSH_VERIFY_ALLOW_SKIP=1 only when you intentionally want to run the first two layers alone.
Files
dsh-image-preview/
├── package.json # bundle metadata (dsh.bundle.patch / dsh.client platform=web)
├── pnpm-lock.yaml # devDependency lock (self-check only; not part of the bundle)
├── cordis.patch.yml # registers the client entry (id: ui-image-preview)
├── lib/
│ ├── index.js # host-side entry (empty — browser-only plugin)
│ └── client.js # browser: read_image row + final-output images + lightbox
└── verify.mjs # self-check script
License
MIT
